ASUS
Graphics Card|ASUS|NVIDIA|GeForce RTX 5070 Ti|16 GB|GDDR7|256 bit|PCI Express 5.0|Active|PROART-RTX5070TI-O16G
Par produktu
Visionary. Versatile. Timeless.

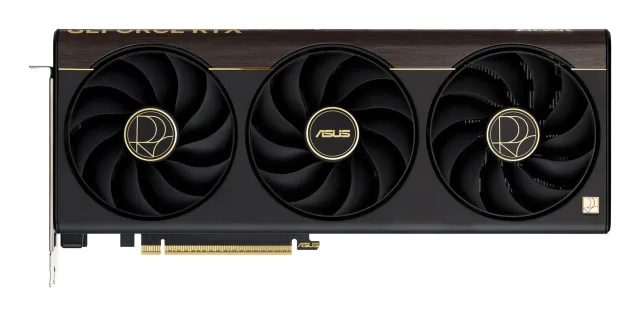

The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.
Specifikācija
- Unit Calculated Weight
- 2.23 kg
- Product Net Weight
- 1.39 kg
- Unit Calculated Volume
- 0.0101 cubm
- Units per Shipping Box
- 5
- Units per Pallet
- 0
- Summary
- ASUS ProArt -RTX5070TI-O16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s)
- Vendor Homepage
- https://www.asus.com/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/
- Category Code
- VGP
- Unit Box Height
- 0.235
- Unit Box Length
- 0.405
- Unit Box Width
- 0.09
Processor
- CUDA
- Yes
- CUDA cores
- 8960
- Graphics processor
- GeForce RTX 5070 Ti
- Graphics processor family
- NVIDIA
- Maximum displays per videocard
- 4
- Maximum resolution
- 7680 x 4320 pixels
- Parallel processing technology support
- Not supported
- Processor boost clock speed
- 2588 MHz
- Processor frequency (OC mode)
- 2610 MHz
Memory
- Data transfer rate
- 28 Gbit/s
- Discrete graphics card memory
- 16 GB
- Graphics card memory type
- GDDR7
- Memory bus
- 256 bit
Ports & interfaces
- DisplayPort version
- 2.1b
- DisplayPorts quantity
- 2
- HDMI ports quantity
- 1
- HDMI version
- 2.1b
- Interface type
- PCI Express 5.0
- USB Type-C ports quantity
- 1
Performance
- Dual Link DVI
- No
- HDCP
- Yes
- HDCP version
- 2.3
- NVIDIA G-SYNC
- Yes
- OpenGL version
- 4.6
- Overclocked (OC) edition
- Yes
Design
- Cooling technology
- ASUS Axial-tech
- Cooling type
- Active
- Number of fans
- 3 fan(s)
- Number of slots
- 2.5
- Product colour
- Multicolour
- SFF ready
- Yes
Power
- Minimum system power supply
- 850 W
- Supplementary power connectors
- 1x 16-pin
System requirements
- Windows operating systems supported
- Yes
Weight & dimensions
- Depth
- 50 mm
- Height
- 126 mm
- Length
- 304 mm
- Weight
- 1390 g
Packaging data
- Package depth
- 233 mm
- Package height
- 88.5 mm
- Package type
- Box
- Package weight
- 2040 g
- Package width
- 405 mm
Identifikatori
- Zīmols
- ASUS
- Kategorijas
- Komponentes
- Modelis
- PROART-RTX5070TI-O16G
- EAN
- 4711636226998
