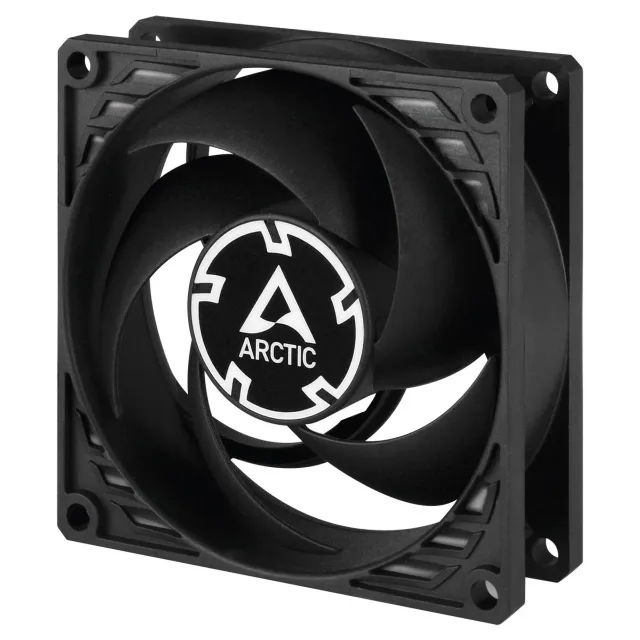

CASE FAN 80MM/ACFAN00150A ARCTIC

Par produktu

Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.

Specifikācija

Unit Calculated Weight: 0.103 kg
Unit Calculated Volume: 0.0002212 cubm
Units per Shipping Box: 150
Summary: ARCTIC P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST. Type: Fan, Fan diameter: 8 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 3000 RPM, Noise level: 0.3 sone, Airflow: 40.3 m³/h, Maximum air pressure: 1.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 80 mm, Depth: 25 mm, Height: 80 mm. Product colour: Black
Vendor Homepage: https://www.arctic.ac/eu_en/p8-pwm-pst.html
Category Code: COS
Unit Box Height: 0.025
Unit Box Length: 0.08
Unit Box Width: 0.08
Model name: P8 PWM PST
Model: ACFAN00150A

Performance

Airflow: 40.3 m³/h
Bearing type: Fluid Dynamic Bearing (FDB)
Compatible processor series: Not supported
Fan diameter: 80 mm
Maximum air pressure: 1.9 mmH2O
Maximum airflow: 23.4 cfm
Noise level: 0.3 sone
Pulse-width modulation (PWM) support: Yes
Rotational speed (max): 3000 RPM
Rotational speed (min): 200 RPM
Suitable location: Computer case
Supported processor sockets: Not supported
Type: Fan

Design

Fan connector: 4-pin
Number of fan blades: 5
Number of fans: 1 fan(s)
Product colour: Black

Power

Voltage: 12 V

Weight & dimensions

Cable length: 0.4 m
Depth: 25 mm
Height: 80 mm
Package depth: 26 mm
Package height: 82.5 mm
Package weight: 99 g
Package width: 82.5 mm
Weight: 81 g
Width: 80 mm

Packaging content

Manual: Yes
Number of screws: 4
Package type: Box
Screws included: Yes

Other features

Country of origin: China
Mounting hole pattern (W x D): 71.5 x 71.5 mm

Identifikatori

Zīmols: ARCTIC
Kategorijas: Komponentes
Modelis: ACFAN00150A
EAN: 4895213702034
