SAMSUNG

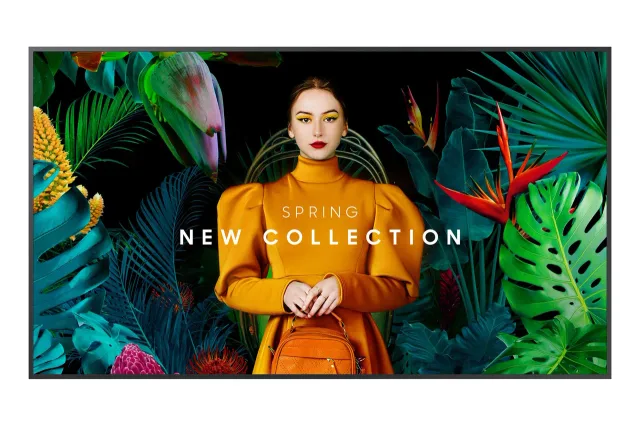

DISPLAY LCD 65" QB65C/LH65QBCEBGCXEN SAMSUNG
Specifikācija
- Unit Calculated Weight
- 27 kg
- Unit Calculated Volume
- 0.2559 cubm
- Units per Pallet
- 0
- Summary
- Samsung QB65C. Product design: Digital signage flat panel. Display diagonal: 165.1 cm (65"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 7.0. Product colour: Black
- Category Code
- LCD
- Unit Box Height
- 0.935
- Unit Box Length
- 1.61
- Unit Box Width
- 0.17
- Model name
- QB65C
Display
- Contrast ratio (typical)
- 4000:1
- Display brightness
- 350 cd/m²
- Display diagonal
- 65 "
- Display diagonal (metric)
- 163 cm
- Display resolution
- 3840 x 2160 pixels
- Display technology
- LCD
- Dynamic contrast ratio marketing name
- Mega Contrast
- Haze rate
- 2 %
- HD type
- 4K Ultra HD
- Horizontal scan range
- 30 - 81 kHz
- Panel type
- VA
- Pixel frequency (max)
- 594 MHz
- Pixel pitch
- 0.372 x 0.372 mm
- Response time
- 8 ms
- RGB colour space
- NTSC
- Touchscreen
- No
- Vertical scan range
- 48 - 75 Hz
- Viewing angle, horizontal
- 178 °
- Viewing angle, vertical
- 178 °
Ports & interfaces
- DVI port
- No
- Ethernet LAN (RJ-45) ports
- 1
- HDMI input ports quantity
- 3
- HDMI ports quantity
- 3
- HDMI version
- 2.0
- Infrared data port
- Yes
- Remote (IR) input
- 1
- RS-232 interface
- Yes
- USB port
- Yes
- USB ports quantity
- 2
Design
- Bezel colour
- Charcoal Black
- Bezel width (bottom)
- 11.5 mm
- Bezel width (side)
- 11.5 mm
- Bezel width (top)
- 11.5 mm
- Panel mounting interface
- 400 x 300 mm
- Placement supported
- Indoor
- Product colour
- Black
- Product design
- Digital signage flat panel
- Screen shape
- Flat
- VESA mounting
- Yes
Performance
- HDCP
- Yes
- HDCP version
- 2.2
- Operating hours (hours/days)
- 16/7
- Purpose
- Universal
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Energy consumption (SDR) per 1000 hours
- 104 kWh
- Energy efficiency class (SDR)
- G
- Energy efficiency scale
- A to G
- Power consumption (sleep)
- 0.5 W
- Power consumption (typical)
- 187 W
Computer system
- Built-in processor
- Yes
- Computer system
- Yes
- Computer system type
- System on Chip (SoC)
- Operating system installed
- Tizen 7.0
Weight & dimensions
- Display depth
- 28.5 mm
- Display height
- 831.9 mm
- Display weight
- 21500 g
- Display width
- 1456.8 mm
Packaging data
- Package depth
- 164 mm
- Package height
- 945 mm
- Package weight
- 28000 g
- Package width
- 1616 mm
Operational conditions
- Operating relative humidity (H-H)
- 10 - 80 %
- Operating temperature (T-T)
- 0 - 40 °C
Certificates
- Certification
- Class B 60950-1, 62368-1
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Technical details
- Audio out (mini jack)
- 1
Other features
- Bluetooth
- Yes
- Flash memory
- 8000 MB
- Optional features
- WMN-B50SC STN-L6585C
- RJ-45 input ports
- 1
- RS-232 input ports
- 1
- RS-232 output ports
- 1
Energy Efficiency
- Data Sheet (Link)
- https://eprel.ec.europa.eu/api/product/1653478/fiches?language=EN
- Energy efficiency class
- G
- EPREL Registration Number
- 1653478
- EPREL Version Number
- 2
Identifikatori
- Zīmols
- SAMSUNG
- Modelis
- LH65QBCEBGCXEN
- EAN
- 8806094973938
