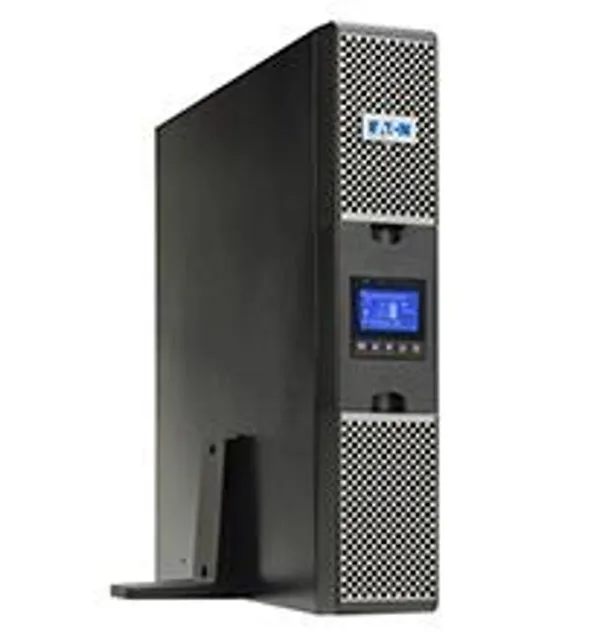

UPS|EATON|1500 Watts|1500 VA|OnLine DoubleConvertion|Desktop/pedestal|Rack|9PX1500IRTN

Par produktu

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

Specifikācija

Unit Calculated Weight: 23.4 kg
Unit Calculated Volume: 0.07337 cubm
Units per Shipping Box: 1
Summary: Eaton 9PX 1.5kVA. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min, Typical backup time at half load: 14 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report...
Vendor Homepage: https://powerquality.eaton.com/9PX1500IRTN.aspx?CX=51
Category Code: UPW
Unit Box Height: 0.55
Unit Box Length: 0.58
Unit Box Width: 0.23

Features

Efficiency: 92.5 %
Input frequency: 40/70 Hz
Input operation voltage (max): 276 V
Input operation voltage (min): 176 V
Noise level: 35 dB
Number of input phases: 1
Output frequency: 50/60 Hz
Output operation voltage (max): 240 V
Output operation voltage (min): 200 V
Output power: 1500 W
Output power capacity: 1.5 kVA
Power factor: 1
Power protection features: Battery discharge
UPS topology: Double-conversion (Online)
Waveform: Pure sine

Ports & interfaces

AC outlet types: C13 coupler
AC outlets quantity: 8 AC outlet(s)
Power plug: C14 coupler
RS-232 ports: 1
Serial interface: Yes
Serial interface type: RS-232
USB 2.0 ports quantity: 1
USB port: Yes

Battery

Automatic battery test: Yes
Battery technology: Sealed Lead Acid (VRLA)
Hot-swap battery: Yes
Typical backup time at full load: 5 min
Typical backup time at half load: 14 min

Design

Display type: LCD
Form factor: Rackmount/Tower
LED indicators: Yes
Product colour: Black
Rack capacity: 2U

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star

Packaging content

Management card included: Yes
Rack mount kit: Yes

Safety regulation & standards

Safety: IEC/EN 62040-1, UL 1778, CSA 22.2

Sustainability

Sustainability certificates: ENERGY STAR

Weight & dimensions

Depth: 450 mm
Height: 86.5 mm
Weight: 18900 g
Width: 440 mm

Packaging data

Bundled software: Intelligent Power Software suite

Logistics data

Harmonized System (HS) code: 85078000

Other features

Nominal input voltage: 230 V
Nominal output voltage: 230 V

Identifikatori

Zīmols: EATON
Kategorijas: UPS nepārtrauktās barošanas avoti
Modelis: 9PX1500IRTN
EAN: 743172081421
