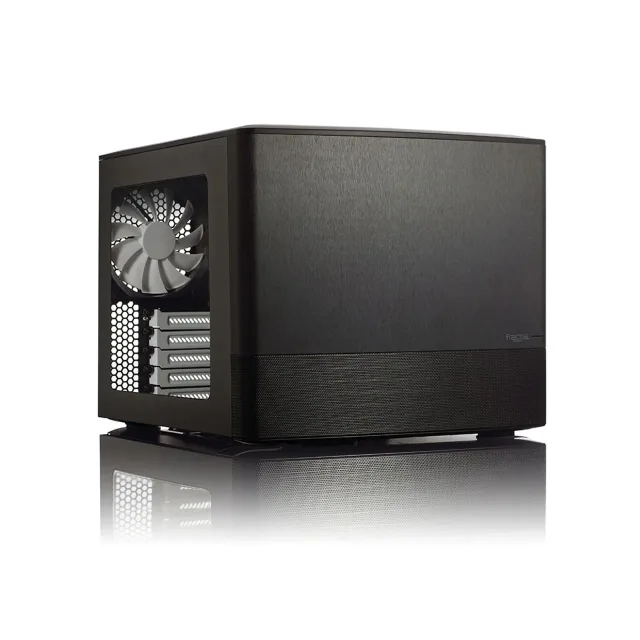

Fractal Design | NODE 804 | Side window | 2 - USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white) | Black | Micro ATX

Specifikācija

Ports & interfaces

Audio input

Yes

Audio output

Yes

USB 3.0 (3.1 Gen 1) Type-A ports quantity

2

Ergonomics

LED indicators

HDD, Power

Packaging data

Package depth

41.2 cm

Package height

46.8 cm

Package width

37 cm

Package weight

7.7 oz

Cooling

Maximum front fans

4

Front fans diameters supported

120 mm

Rear fans diameters supported

120,140 mm

Rear fans installed

2x 120 mm

Maximum rear fans

2

Liquid cooling capability

Yes

Top fans diameters supported

120,140 mm

Front fans installed

1x 120 mm

Maximum top fans

4

Weight & dimensions

Weight

6 oz

Width

34.4 cm

Height

30.7 cm

Depth

38.9 cm

Design

Colour of product

Black

Type

PC

Side window

Yes

Number of 2.5" bays

2

Number of 3.5" bays

8

Supported motherboard form factors

Micro-ATX, Mini-ATX

Number of expansion slots

5 expansion slots

Cooling type

Front: 4 – 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Rear: 1 - 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Rear: 1 - 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)Top: 4 - 120x140mm fans (not included)Fan controller: 1 - Integrated fan controller for up to 3 fans (included)WATER COOLING COMPATIBILITY:Front (right chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed.Front (left chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed. Using a radiator in this position prevents the use of a fan in the top position just next to it.Top (right chamber) - 240/280 mm radiators up to 130mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere. No limitation to thickness.Top (left chamber) - 240 mm radiator configurations up to 130 mm thick (with fans) will fit. Radiators in this position limits the height of memory modules to 48 mm tall.

Form factor

Micro ATX

Power supply

Power supply included

No

Storage

Supported hard disk drive sizes

2.5,3.5 mm

Other features

Expansion slots

5 expansion slots

Dimensions (WxDxH)

344 x 307 x 389 mm mm

Drive bays

8 - 3.5″ HDD positions2 - 2.5″ dedicated SSD unit positions2 - Extra positions for either 3,5″ or 2,5″ drives "

Display

Panel type

2 - USB 3.0Audio in/outPower button with LED (white)HDD activity LED (white)

Technical details

Warranty

24 month(s)

Producer product name

NODE 804

Net weight

5.786 kg

Producer

Fractal Design

Gross weight

7.2 kg

Package features

Packing quantity

1.00 pc(s)

Volume (m3)

0.07134192 m³

Tare weight (kg)

1.414 kg

Gross depth (mm)

468 mm

Gross width (mm)

370 mm

Gross height (mm)

412 mm

Plastic (No PET)

27.00 g

Paper/Pasteboard

1387.00 g

Embeeded battery

No

WEEE tax

No

Palette Qty

12 pc(s)

Identifikatori

Zīmols

Fractal Design

Kategorijas

Komponentes

Modelis

FD-CA-NODE-804-BL-W

E13

7350041082019
