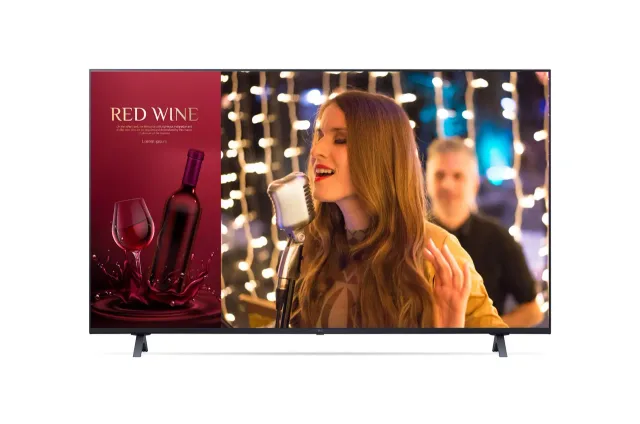

DISPLAY LCD 55"/55UN640S0LD LG

Par produktu

LG TV Signage with Essential Function

Superb Picture Quality with Ultra HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.

Improved Design with Slim Depth
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed.

* 'LG Conventional' refers to LG UT640S series.

High-Performance with LG webOS22
LG webOS22, with an upgraded SoC* and web engine, is available on the UN640S series for the easy execution of several tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI.**

* SoC : System On Chip
** GUI : Graphical User Interface

Embedded Content & Group Management
The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.

Versatile Content Management with LG SuperSign CMS
LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.

* LG SuperSign CMS is sold separately

Easy Group Control
The UN640S series supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

Compatible with AV Control Systems
The UN640S series supports Crestron Connected® * for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control

Compatible with Video Conference System
For effective visual meeting, the UN640S series supports its compatibility* with Cisco solutions that offers powerful and integrated control** for a smarter video conference.

* Cisco compatibility will be certified in Q3 of 2023.
** Using an HDMI cable connection (HDMI cable is optional)

Display Power Management Support
Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.

Real-time Promotion & Content Sharing
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time. And Content Mirroring among devices is available on a same Wi-Fi network.

Wireless Access Point
UN640S series operates as a virtual router which can be an wireless access point for mobile devices.

Easy Menu Setup for Vertical Needs
UN640S series increases users' convenience by organizing frequently used menus* by industry.

* Pre-set Support Vertical : Corporate / Government / Retail, Meeting room

Real-time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

  • Brightness(Typ.) : 400 nits
  • Resolution : 4K Ultra HD (3,840 x 2,160)
  • Improved Design with Slim Depth
  • webOS-based High Performance
  • Easy Content Management / Group Management
  • SuperSign Control+ (Free version) / CMS Compatibility

Specifikācija

Unit Calculated Weight
18 kg
Unit Calculated Volume
0.1688648 cubm
Summary
LG 55UN640S. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating system installed: WebOS. Product colour: Blue
Vendor Homepage
https://www.lg-informationdisplay.com/product/digital-signage/standard/50UN640S-EU-CIS
Category Code
LCD
Unit Box Height
0.81
Unit Box Length
1.345
Unit Box Width
0.155
Model name
55UN640S0LD
Model
55UN640S0LD

Display

Display brightness
400 cd/m²
Display diagonal
55 "
Display diagonal (metric)
138 cm
Display resolution
3840 x 2160 pixels
Display technology
LCD
HD type
4K Ultra HD
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 Pro (HDR10 Pro)/Hybrid Log-Gamma (HLG)
Native aspect ratio
16:9
Touchscreen
No

Ports & interfaces

Audio Return Channel (ARC)
Yes
DVI port
No
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
3
HDMI version
2.0
Number of speaker outputs
1
RF input
2
RS-232C
Yes
USB port
Yes
USB ports quantity
1
USB version
2.0

Audio

Built-in speaker(s)
Yes
RMS rated power
20 W

Design

Bezel width (bottom)
19.9 mm
Bezel width (side)
12.8 mm
Bezel width (top)
12.8 mm
Colour name
Ashed Blue
Orientation
Horizontal
Panel mounting interface
200 x 200 mm
Placement supported
Indoor
Product colour
Blue
Product design
Digital signage flat panel
VESA mounting
Yes

Performance

Analog signal format system
PAL/SECAM
Browsing
Yes
Digital signal format system
DVB-C/DVB-S2/DVB-T2
Purpose
Universal
TV tuner integrated
Yes

Power

AC input frequency
50-60 Hz
AC input voltage
100-240 V
Energy consumption (HDR) per 1000 hours
113 kWh
Energy consumption (SDR) per 1000 hours
79 kWh
Energy efficiency class (HDR)
G
Energy efficiency class (SDR)
G
Power consumption (max)
155 W
Power consumption (standby)
0.5 W
Power consumption (typical)
128 W

Computer system

Operating system installed
WebOS
Operating system version
22

Weight & dimensions

Depth (with stand)
232 mm
Display depth
57.5 mm
Display height
715 mm
Display weight
14000 g
Display width
1235 mm
Height (with stand)
772 mm
Weight (with stand)
14200 g
Width (with stand)
1235 mm

Packaging data

Package depth
162 mm
Package height
810 mm
Package weight
19000 g
Package width
1360 mm

Packaging content

Cables included
AC
Remote control included
Yes
Stand included
Yes

Network

Ethernet LAN
Yes
Wi-Fi
Yes

Technical details

Digital audio out
1
Real Time Clock (RTC)
Yes

Other features

Bluetooth
Yes
Bluetooth Low Energy (BLE)
Yes
Cable lock slot type
Kensington
Common interface Plus (CI+)
Yes
Common interface Plus (CI+) version
1.4
Headphone outputs
1
Hotel mode
Yes
Power management
Yes
Teletext function
Yes
Timer
Yes

Energy Efficiency

Data Sheet (Link)
https://eprel.ec.europa.eu/api/product/1614441/fiches?language=EN
Energy efficiency class
G
EPREL Registration Number
1614441
EPREL Version Number
2
