ASROCK

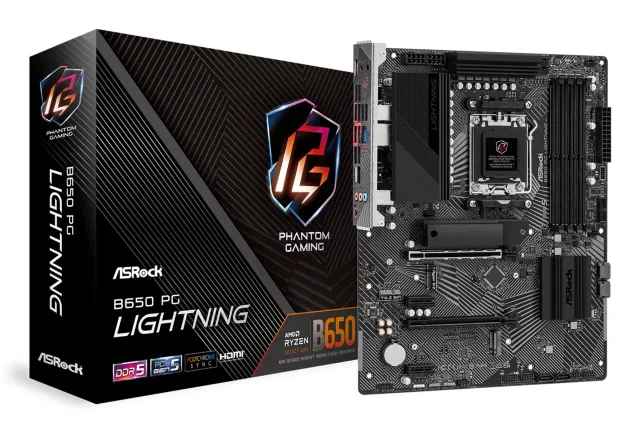

Mainboard|ASROCK|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|7xUSB 3.2|2xUSB-C|1xRJ45|B650PGLIGHTNING
Par produktu
- Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6600+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
- Killer 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
Specifikācija
- Unit Calculated Weight
- 1.97 kg
- Unit Calculated Volume
- 0.009768 cubm
- Units per Shipping Box
- 5
- Units per Pallet
- 0
- Summary
- Asrock B650 PG Lightning. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA II, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: AMD RDNA 2. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Vendor Homepage
- https://www.asrock.com/mb/AMD/B650%20PG%20Lightning/index.asp
- Category Code
- MBA
- Unit Box Height
- 0.3
- Unit Box Length
- 0.075
- Unit Box Width
- 0.355
- Model
- B650 PG Lightning
Features
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD B650
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
Memory
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 128 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speeds
- 6400/6600/6666/6800 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
Storage controllers
- RAID levels
- 0/1/10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA II
- Supported storage drive types
- HDD & SSD
Graphics
- Graphics card
- AMD RDNA 2
- Graphics card family
- AMD
- HDCP
- Yes
- On-board graphics card
- Yes
Internal I/O
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
Rear panel I/O ports
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Line-in
- Yes
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 7
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
Network
- Bluetooth
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Dragon RTL8125BG
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi
- Yes
Expansion slots
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
BIOS
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
Weight & dimensions
- Depth
- 244 mm
- Width
- 305 mm
Packaging content
- Cables included
- SATA
Identifikatori
- Zīmols
- ASROCK
- Kategorijas
- Komponentes
- Modelis
- B650PGLIGHTNING
- EAN
- 4710483940910
