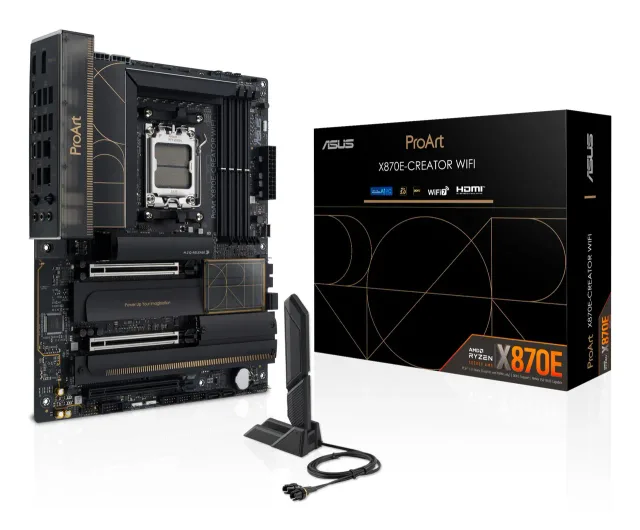

Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|7xUSB 3.2|3xUSB-C|1xRJ45|3xAudio port|PROARTX870E-CREATORWIFI
Par produktu
The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
All You Need for Maximum Productivity
Dual USB4® Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.
Specifikācija
- Unit Calculated Weight
- 2.82 kg
- Unit Calculated Volume
- 0.01093 cubm
- Units per Shipping Box
- 5
- Category Code
- MBA
- Unit Box Height
- 0.09
- Unit Box Length
- 0.36
- Unit Box Width
- 0.285
- Model
- PROART X870E-CREATOR WIFI
Features
- Audio chip
- Realtek S1220A
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset
- AMD X870E
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- Windows operating systems supported
- Windows 11
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
Memory
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 192 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
Storage controllers
- Number of HDDs supported
- 4
- Number of storage drives supported
- 8
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
Graphics
- Parallel processing technology support
- Not supported
Internal I/O
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 5
- Number of COM connectors
- 1
- Number of SATA III connectors
- 4
- USB 2.0 connectors
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
Rear panel I/O ports
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- HDMI ports quantity
- 1
- Microphone in
- Yes
- USB 2.0 ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 7
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- USB4 Gen 2x2 ports quantity
- 2
- WiFi-AP antenna jack
- 1
Network
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Ethernet interface type
- 10 Gigabit Ethernet/2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
Expansion slots
- Number of M.2 (M) slots
- 4
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 2
BIOS
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
Weight & dimensions
- Depth
- 244 mm
- Width
- 305 mm
Packaging content
- Cables included
- DisplayPort,SATA
Identifikatori
- Zīmols
- ASUS
- Kategorijas
- Komponentes
- Modelis
- PROARTX870E-CREATORWIFI
- EAN
- 4711387730775
