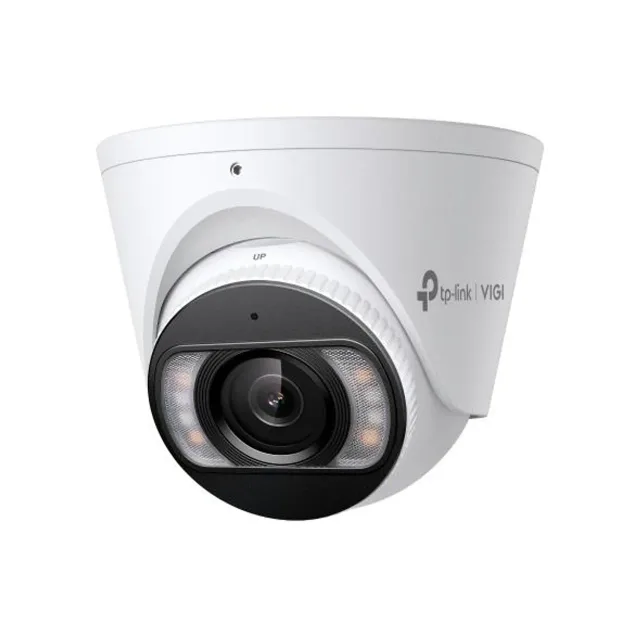

NET CAMERA TURRET H.265+ 4MP/INSIGHT S445S(2.8MM) TP-LINK
Par produktu
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
Specifikācija
- Unit Calculated Weight
- 0.82 kg
- Unit Calculated Volume
- 0.002988 cubm
- Units per Shipping Box
- 1
- Units per Pallet
- 0
- Summary
- TP-Link InSight S445. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 64 m, Observe distance: 27 m, Recognize distance: 13 m
- Vendor Homepage
- https://www.vigi.com/sg/business-networking/vigi-network-camera/insight-s445/
- Category Code
- FNC
- Unit Box Height
- 0.116
- Unit Box Length
- 0.161
- Unit Box Width
- 0.16
- Model
- InSight S445S
Design
- Form factor
- Turret
- Housing material
- Metal
- International Protection (IP) code
- IP67
- Mounting type
- Ceiling/wall
- Product colour
- White
Performance
- Connectivity technology
- Wired
- Dynamic range
- 120 dB
- Infrared (IR) cut-off filter
- Yes
- People counting function
- Yes
- Placement supported
- Indoor & outdoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
Camera
- Angle of rotation
- 360 °
- Camera shutter speed
- 1/3 - 1/10000 s
- Lens viewing angle, diagonal
- 118 °
- Lens viewing angle, horizontal
- 100 °
- Lens viewing angle, vertical
- 54 °
- Minimum illumination
- 0.005 lx
- Number of Privacy masking areas
- 4
- Pan range
- 0 - 360 °
- Tilt angle range
- 0 - 85 °
Image sensor
- Optical sensor size
- 1/2.7 "
- Progressive scan
- Yes
- Sensor type
- CMOS
Lens system
- Detect distance
- 64 m
- Fixed focal length
- 2.8 mm
- Identify distance
- 6 m
- Maximum aperture number
- 1.6
- Number of lenses
- 1
- Observe distance
- 27 m
- Recognize distance
- 13 m
Night vision
- Infra-red wavelength
- 850 nm
- LED type
- IR/White
- Night vision
- Yes
- Night vision distance
- 30 m
Video
- Back Light Compensation (BLC)
- Yes
- Bit rate
- Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 512 Kbps
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Highlight Compensation (HLC)
- Yes
- Maximum resolution
- 2688 x 1520 pixels
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Region of Interest (ROI) encoding
- Yes
- Smart IR
- Yes
- Supported graphics resolutions
- 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520/320 x 240/352 x 288/640 x 480 (VGA)/704 x 576
- Total megapixels
- 4 MP
- Video compression formats
- H.264/H.264+/H.265/H.265+
- Video streaming
- Yes
Audio
- Audio system
- 2-way
- Built-in microphone
- Yes
- Built-in speaker(s)
- Yes
- Signal-to-Noise Ratio (SNR)
- 52 dB
Network
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN
- Yes
- Supported network protocols
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Storage
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 512 GB
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
Security
- Active tampering alarm
- Yes
- Digest authentication
- Yes
- HTTPS encryption
- Yes
- Intelligent Video Surveillance (IVS) system features
- Abandoned object/Abnormal sound detection/Human detection/Intrusion/Line crossing detection/Region entrance detection/Region exiting detection/Scene change/Vehicle detection
- IP address filtering
- Yes
- Password protection
- Yes
- Privacy protection
- Yes
- Video motion detection
- Yes
Management features
- Cloud-managed
- Yes
- Reset button
- Yes
- Web browser
- Yes
Power
- DC output voltage
- 12
- Power source type
- DC,PoE
Operational conditions
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- -30 - 60 °C
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage temperature (T-T)
- -40 - 60 °C
Weight & dimensions
- Diameter
- 111 mm
- Height
- 83.7 mm
- Weight
- 480 g
Sustainability
- Compliance certificates
- BSMI/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/KC/VCCI
Packaging content
- Manual
- Yes
- Mounting kit
- Yes
- Number of cameras
- 1
Identifikatori
- Zīmols
- TP-LINK
- Kategorijas
- IP kameras
- Modelis
- INSIGHT S445S(2.8MM)
- EAN
- 8885020625622
