BE QUIET
Power Supply|BE QUIET|Pure Power 12|750 Watts|Peak Power 820 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|BP026EU
Par produktu
Exceptional quiet, superior features

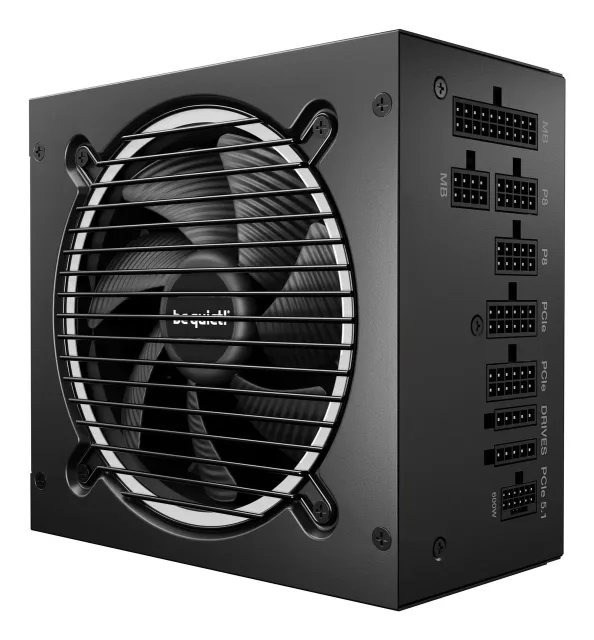

Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 94.3%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Exceptionally silent semi-passive 120mm be quiet! fan
- Semi-passive construction for quiet and energy-saving operation
- LLC technology for advanced stability and voltage regulation
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
- Full suite of safety features
- Meets latest requirements for modern standby
Specifikācija
- Unit Calculated Weight
- 3.14 kg
- Unit Calculated Volume
- 0.008568 cubm
- Units per Shipping Box
- 6
- Units per Pallet
- 0
- Model name
- Pure Power 12
- Summary
- be quiet! Pure Power 13 M | 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
- Vendor Homepage
- https://www.bequiet.com/en/download/powersupply/5931?utm_source=newsletter
- Category Code
- PSU
- Unit Box Height
- 0.205
- Unit Box Length
- 0.29
- Unit Box Width
- 0.1
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Combined power (+12V)
- 750 W
- Combined power (+3.3V)
- 120 W
- Combined power (+5V)
- 120 W
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Efficiency
- 92.6 %
- Hold time
- 28.62 ms
- Max output current (+12V1)
- 62.5 A
- Max output current (+3.3V)
- 20 A
- Max output current (+5V)
- 20 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Maximum input current (@110V)
- 10 A
- Maximum input current (@220V)
- 5 A
- Number of +12V rail(s)
- 1
- Peak power
- 820 W
- Power factor
- 0.98
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
- Total power
- 750 W
Ports & interfaces
- Cabling type
- Fully-Modular
- CPU P4 connector (4-pin)
- 2
- CPU power cable length
- 650 mm
- CPU power connector (4+4 pin)
- Yes
- EPS power connector (8-pin)
- Yes
- Motherboard power cable length
- 550 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express power connectors (12-pin)
- 1
- PCI Express power connectors (6+2 pin)
- 4
- Peripheral (Molex) power cable length
- 800/950 mm
- Peripheral (Molex) power connectors (4-pin)
- 2
- SATA power cable length
- 500/650/800/950 mm
Performance
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.1
- Bearing technology
- Rifle
- EPS version
- 2.92
- Mean time between failures (MTBF)
- 100000 h
- Noise level
- 20.8 dB
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
Design
- Cooling type
- Active
- Fan diameter
- 120 mm
- Fan speed
- 0 - 1800 RPM
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Black
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Packaging content
- Cables included
- AC,CPU,PCIe,Peripheral (Molex),SATA
Certificates
- Compliance certificates
- BSMI/CB/CCC/CE/cTUVus/Federal Communications Commission (FCC)/IRAM/RCM/RoHS/TÜV mark/UKCA/WEEE
Weight & dimensions
- Depth
- 160 mm
- Height
- 86 mm
- Weight
- 2460 g
- Width
- 150 mm
Packaging data
- Package depth
- 320 mm
- Package height
- 133 mm
- Package weight
- 3200 g
- Package width
- 210 mm
Technical details
- Sustainability certificates
- ENERGY STAR/ErP
Logistics data
- Products per shipping (inner) case
- 6 pc(s)
- Shipping (inner) case gross weight
- 21500 g
- Shipping (inner) case height
- 233 mm
- Shipping (inner) case length
- 580 mm
- Shipping (inner) case width
- 325 mm
Other features
- Cable ties included
- Yes
- Screws included
- Yes
Identifikatori
- Zīmols
- BE QUIET
- Modelis
- BP026EU
- EAN
- 4260052192184
