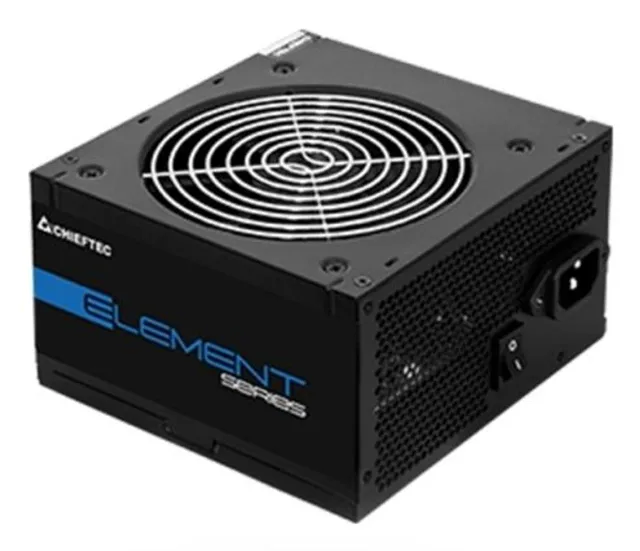

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|ELP-700S
Par produktu
The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
Specifikācija
- Unit Calculated Weight
- 1.83 kg
- Unit Calculated Volume
- 0.003832 cubm
- Units per Shipping Box
- 1
- Summary
- Chieftec ELP-700S. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
- Vendor Homepage
- https://www.chieftec.eu/products-detail/123/ELEMENT_SERIES/128/ELP-700S
- Category Code
- PSU
- Unit Box Height
- 0.098
- Unit Box Length
- 0.23
- Unit Box Width
- 0.17
Power
- AC input frequency
- 47 - 63 Hz
- AC input voltage
- 200 - 240 V
- Combined power (+12V)
- 648 W
- Combined power (+3.3V)
- 130 W
- Combined power (+5V)
- 130 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W
- Efficiency
- 85 %
- Input current
- 5 A
- Max output current (+12V)
- 54 A
- Max output current (+3.3V)
- 22 A
- Max output current (+5V)
- 22 A
- Max output current (+5Vsb)
- 2.5 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over power/Over voltage/Short circuit/Under voltage
- Total power
- 700 W
Ports & interfaces
- Cabling type
- Non-Modular
- EPS power connector (4+4 pin)
- Yes
- Floppy disk drive connector
- Yes
- Motherboard power cable length
- 650 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express connector
- Yes
- PCI Express power connectors (6+2 pin)
- 1
- SATA power cable length
- 150/500 mm
Performance
- 80 PLUS certification
- 80 PLUS Bronze
- ATX version
- 2.3
- Power supply unit (PSU) form factor
- PS/2
- Purpose
- PC
- Supported motherboard form factors
- ATX
Design
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Black
Certificates
- Compliance certificates
- CB/CE/EAC/RoHS
Weight & dimensions
- Depth
- 150 mm
- Height
- 86 mm
- Weight
- 1650 g
- Width
- 140 mm
Packaging data
- Package type
- Box
- Package weight
- 1900 g
Identifikatori
- Zīmols
- CHIEFTEC
- Modelis
- ELP-700S
- EAN
- 4710713230972
