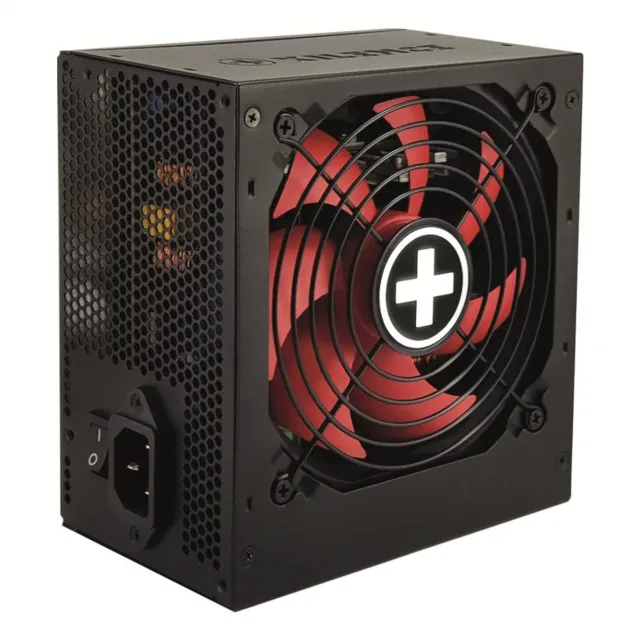

Power Supply|XILENCE|450 Watts|Efficiency 80 PLUS BRONZE|PFC Active|XN213

Par produktu

The new successful Gaming series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.

Extremely silent cooling: large 120mm fan
semi-modular cable management
Excellent air flow design for a better heat dissipation
Low stand-by consumption
High energy efficiency: 80+ BRONZE certified (complies with ErP2014 norm)
Active-PFC

Specifikācija

Unit Calculated Weight: 1.92 kg
Unit Calculated Volume: 0.006132 cubm
Units per Shipping Box: 8
Units per Pallet: 0
Model name: XN213 | XP450R10
Summary: Xilence Performance A+ XN213. Total power: 450 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, WEEE
Vendor Homepage: https://www.xilence.net/en/power-supplies/120
Category Code: PSU
Unit Box Height: 0.17
Unit Box Length: 0.25
Unit Box Width: 0.1

Power

AC input frequency: 50 Hz
AC input voltage: 200 - 240 V
Combined power (+12V): 396 W
Combined power (+3.3V): 100 W
Input current: 10 A
Max output current (+12V): 33 A
Max output current (+3.3V): 20 A
Max output current (+5V): 14 A
Max output current (+5Vsb): 2 A
Max output current (-12V): 0.5 A
Power Factor Correction (PFC) type: Active
Power protection features: Over power/Over voltage/Short circuit/Under voltage
Total power: 450 W

Ports & interfaces

ATX power connector (20+4 pin): Yes
Cabling type: Non-Modular
CPU power connector (4+4 pin): Yes
Floppy disk drive connector: Yes
Floppy drive power connector: 1
Motherboard power cable length: 500 mm
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 5
PCI Express connector: Yes
PCI Express power connectors (6+2 pin): 1
Peripheral (Molex) power connectors (4-pin): 3

Performance

80 PLUS certification: 80 PLUS Bronze
ATX version: 2.4
Bearing technology: FDB
Power supply unit (PSU) form factor: ATX
Purpose: PC

Design

Cooling type: Active
Fan diameter: 120 mm
Fan location: Top
Number of fans: 1 fan(s)
On/off switch: Yes
Product colour: Black

Certificates

Compliance certificates: RoHS/WEEE

Packaging data

Package type: Box

Technical details

Sustainability certificates: ErP

Identifikatori

Zīmols: XILENCE
Modelis: XN213
EAN: 4044953501661
