TELTONIKA
Switch|TELTONIKA|TSW210000040|TSW210
Par produktu

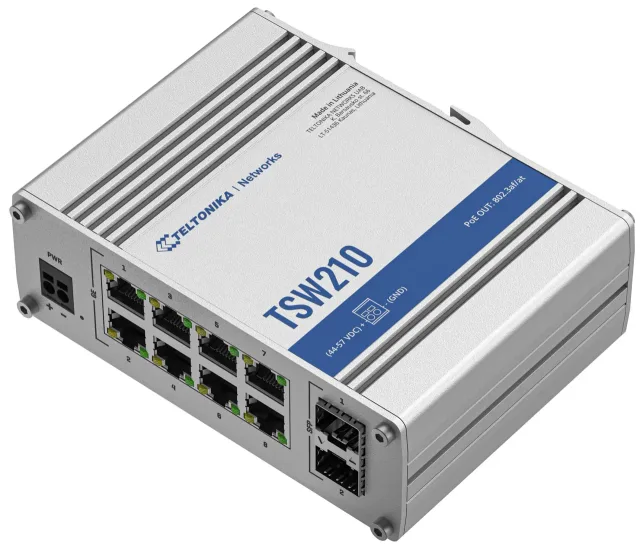

The TSW210 is an unmanaged industrial switch for centralizing your resources.
Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed.
Durable, rugged aluminum housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings.
- SFP
- ETHERNET
- DURABILITY
- MOUNTING (DIN rail)
Specifikācija
- Unit Calculated Weight
- 0.6 kg
- Unit Calculated Volume
- 0.001761 cubm
- Units per Shipping Box
- 1
- Summary
- Teltonika TSW210. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 7 - 57 V. Wall mountable
- Vendor Homepage
- https://teltonika-networks.com/product/tsw210/
- Category Code
- SWI
- Unit Box Height
- 0.148
- Unit Box Length
- 0.17
- Unit Box Width
- 0.07
- Model name
- TSW210000040
- Model
- TSW210
Management features
- Switch type
- Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 2
Network
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Networking standards
- IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Data transmission
- Jumbo frames
- 9216
- Jumbo frames support
- Yes
- MAC address table
- 2048 entries
- Packet buffer memory
- 128 MB
- Switching capacity
- 20 Gbit/s
Design
- DIN rail mounting
- Yes
- Housing material
- Aluminium
- International Protection (IP) code
- IP30
- LED indicators
- LAN/Power/Status
- Product colour
- Aluminium
- Rack mounting
- No
- Stackable
- No
- Wall mountable
- Yes
Power
- DC input voltage
- 7 - 57 V
- Power consumption (max)
- 3.71 W
- Power consumption (typical)
- 1.03 W
- Power source
- DC
- Power supply included
- No
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -40 - 75 °C
Weight & dimensions
- Depth
- 95.1 mm
- Height
- 44.2 mm
- Weight
- 500 g
- Width
- 132 mm
Identifikatori
- Zīmols
- TELTONIKA
- Kategorijas
- Tīkla iekārtas
- Modelis
- TSW210
- EAN
- 4779051840243
