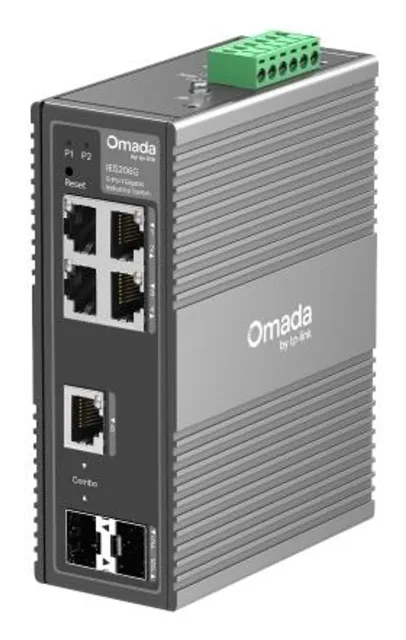

TP-LINK
Switch|TP-LINK|Switch type Managed|4xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|1xCombo SFP ports quantity|1xSFP module slots quantity|IES206G
Par produktu
- 6× Gigabit Ports (4× RJ45, 1× Combo RJ45/SFP, 1×SFP)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Specifikācija
- Unit Calculated Weight
- 0.739 kg
- Unit Calculated Volume
- 0.002244 cubm
- Units per Shipping Box
- 1
- Units per Pallet
- 0
- Summary
- TP-Link Omada IES206G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 - 60 V. Wall mountable
- Vendor Homepage
- https://www.tp-link.com/nl/business-networking/omada-switch-industrial/ies206g/?app=t
- Category Code
- SWI
- Unit Box Height
- 0.08
- Unit Box Length
- 0.165
- Unit Box Width
- 0.17
- Model
- IES206G
Management features
- Cloud-managed
- Yes
- Quality of Service (QoS) support
- Yes
- Switch type
- Managed
- Web-based management
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity
- 1
- SFP module slots quantity
- 1
Network
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Networking standards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
- Port mirroring
- Yes
- Spanning tree protocol
- Yes
Data transmission
- Forwarding rate
- 8.93 Mpps
- Jumbo frames
- 15000
- Jumbo frames support
- Yes
- MAC address table
- 8000 entries
- Store-and-forward
- Yes
- Switching capacity
- 12 Gbit/s
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
Multicast features
- Multicast support
- Yes
Design
- DIN rail mounting
- Yes
- Product colour
- Black
- Wall mountable
- Yes
Performance
- Fanless
- Yes
Power
- DC input voltage
- 9 - 60 V
- Power source
- DC
- Power supply included
- Yes
- Redundant power supply (RPS) support
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -40 - 75 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -40 - 85 °C
Weight & dimensions
- Depth
- 95 mm
- Height
- 45 mm
- Width
- 129 mm
Certificates
- Certification
- FCC, CE, RoHS
Identifikatori
- Zīmols
- TP-LINK
- Kategorijas
- Tīkla iekārtas
- Modelis
- IES206G
- EAN
- 1210002602075
