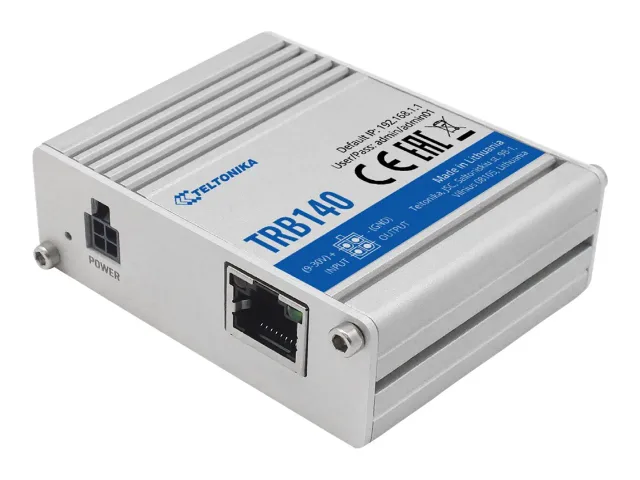

Teltonika | LTE Router | TRB140 | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | Mesh Support No | MU-MiMO No | 2G/3G/4G | Antenna type 1 x SMA for LTE | 1 x Virtual network interface via micro USB | 24 month(s)

Specifikācija

Package features

Gross depth (mm)

175 mm

Gross height (mm)

150 mm

Gross weight

0.43 kg

Gross width (mm)

70.00 mm

Packing quantity

10 pc(s)

Paper/Pasteboard

123 g

Tare weight (kg)

0.123 kg

Volume (m3)

0.0018375 m³

Embeeded battery

No

WEEE tax

Yes

WEE classification

CL109:6:2017-04-01

Gross depth master carton

375 mm

Gross width master carton

370 mm

Gross height master carton

170 mm

Net weight master carton

4.3 kg

Tare weight master carton

0.401 kg

Palette Qty

730 pc(s)

Technical details

Net weight

0.307 kg

Software type

RutOS (OpenWrt based Linux OS)

Warranty

24 month(s)

Producer

Teltonika

Performance

Ethernet LAN data rates

10/100/1000 Mbit/s

Other features

USB ports quantity

1 x Virtual network interface via micro USB

Ethernet LAN (RJ-45) ports

1

Dimensions (WxDxH)

74,5x64,4xx25 mm

Input voltage

9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max V

Supported protocols

HTTP(S), MQTT, Azure MQTT, Kinesis

Producer product name

TRB140

Producer product family

LTE Router

Wireless LAN features

Wi-Fi band

No Wi-Fi

Features

Mesh Support

No

Mobile Broadband

2G/3G/4G

MU-MiMO

No

Antenna

Antenna type

1 x SMA for LTE

Processor

Processor model

ARM Cortex-A7 1.2 GHz CPU

Ports & interfaces

SFP+ ports quantity

0

Memory

Internal memory

128 MB (50 MB available for userspace) GB

Design

Housing material

Aluminum

Operational conditions

Operating relative humidity (H-H)

10 % to 90 % non-condensing %

Operating temperature (T-T)

-40 °C to 75 °C °C

Networking

PoE in

Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards

Security

Firewall security

Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T

Protocols

Supported network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)

Identifikatori

Zīmols

Teltonika

Kategorijas

Tīkla iekārtas

Modelis

TRB140003000

E13

4779027312408

Drošība un atbilstība
