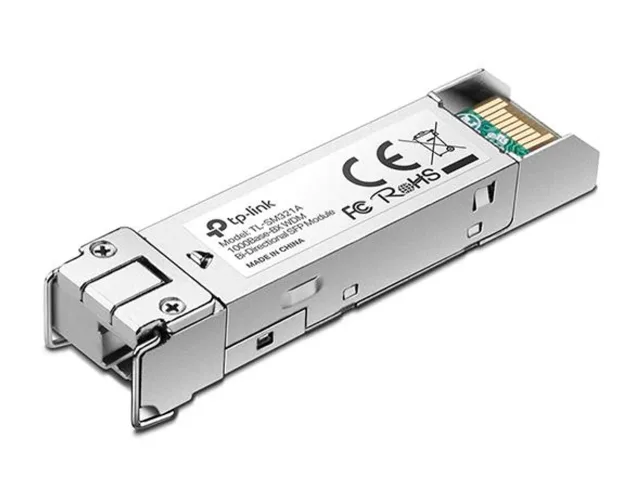

NET SWITCH MODULE SFP 1000B-BX/SM321A TP-LINK
Par produktu
Spotlight:
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
- Supports WDM Bi-Directional technology, using a single strand of fiber
- TX: 1550nm / RX: 1310nm
- Internal +3.3V Power Supply
- In pairs with TL-SM321B
- Plug-and-Play
- Suitable: MC220L, TL-R4199G/4299G, TL-SG3109, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB,TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and the other equivalent devices
Specifikācija
- Unit Calculated Weight
- 0.1 kg
- Unit Calculated Volume
- 0.000336 cubm
- Units per Shipping Box
- 1
- Summary
- TP-Link 1000Base-BX WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Input voltage: 3.3 V. Certification: FCC, CE. Width: 55.4 mm, Depth: 12.9 mm, Height: 12.9 mm
- Vendor Homepage
- https://www.tp-link.com/products/productDetails.asp?class=&content=fea&pmodel=TL-SM321A
- Category Code
- NTM
- Unit Box Height
- 0.035
- Unit Box Length
- 0.12
- Unit Box Width
- 0.08
- Model
- TL-SM321A
Performance
- Fiber cable diameters supported (core/cladding)
- 9/125 µm
- Fiber optic connector
- LC (UPC)
- Interface type
- SFP
- Maximum data transfer rate
- 1250 Mbit/s
- Maximum transfer distance
- 10000 m
- Networking standards
- IEEE 802.3z
- Rx wavelength (max)
- 1310 nm
- SFP transceiver type
- Fiber optic
- Single-mode fiber (SMF) supported
- Yes
- Tx wavelength (max)
- 1550 nm
Features
- Plug and Play
- Yes
- Product colour
- Metallic
Power
- Input voltage
- 3.3 V
Certificates
- Certification
- FCC, CE
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 70 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 80 °C
Weight & dimensions
- Depth
- 12.9 mm
- Height
- 12.9 mm
- Width
- 55.4 mm
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package depth
- 122.5 mm
- Package height
- 38.5 mm
- Package weight
- 60 g
- Package width
- 81.5 mm
Identifikatori
- Zīmols
- TP-LINK
- Kategorijas
- Tīkla iekārtas
- Modelis
- SM321A
- EAN
- 6935364030513
