Mainboard, MSI, Intel B760 Express, LGA1700, ATX, Memory DDR4

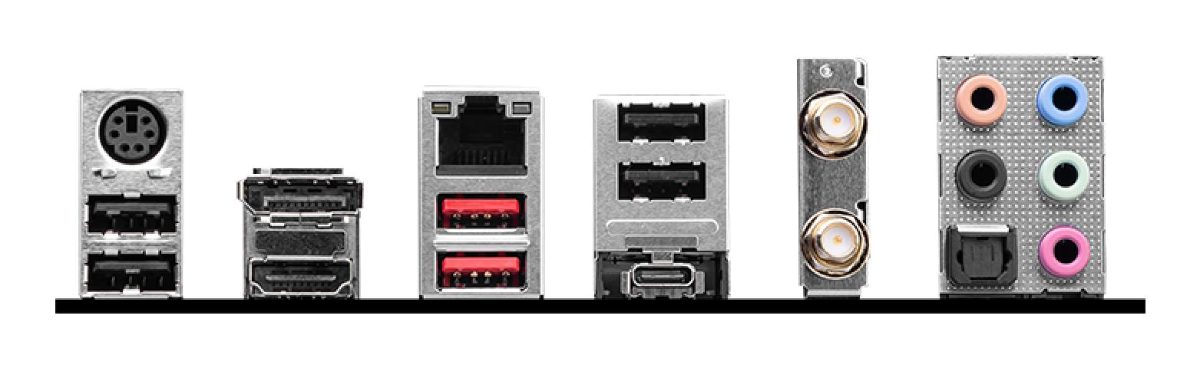

Mainboard, MSI, Intel B760 Express, LGA1700, ATX, Memory DDR4, Memory slots 4, 5xPCI-Express 5.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 2xUSB 3.2, 1xUSB-C, 1xPS/2, 1xOptical S/PDIF, 1xRJ45, 5xAudio port, B760GAMPLUSWIFIDDR4
MSI · 4711377247900
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 36 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4711377247900
- Zīmols
- MSI
Apraksts

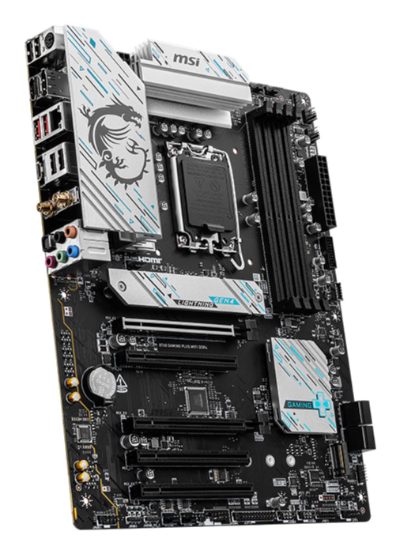

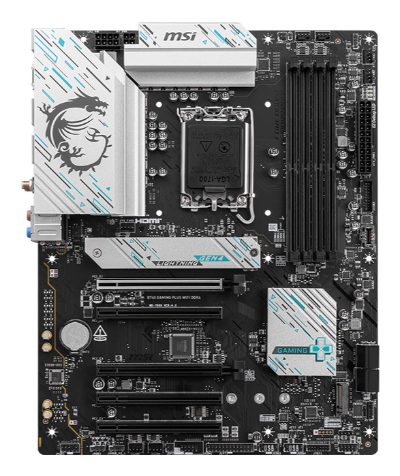

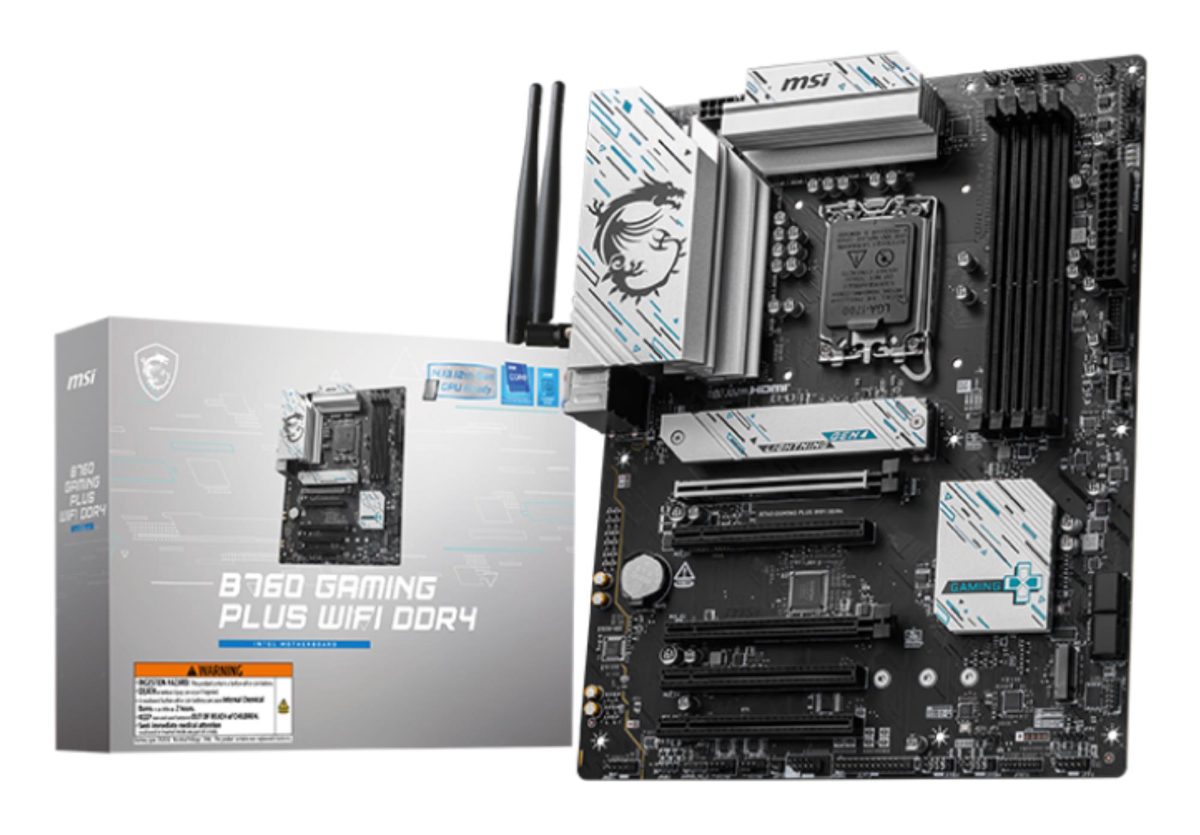

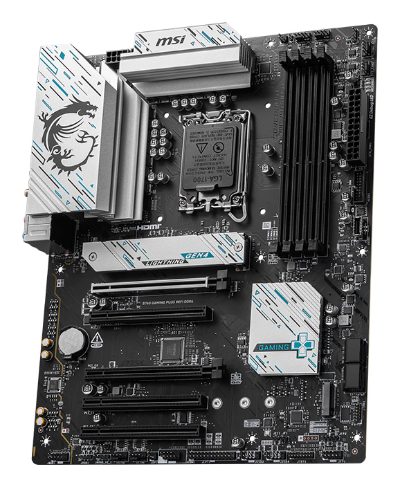

B760 GAMING PLUS WIFI DDR4
The B760 GAMING PLUS WIFI DDR4 is crafted to offer extensive connectivity, versatile tools, and a convenient Wi-Fi solution for gamers seeking a comprehensive experience. Featuring 2.5G LAN, Wi-Fi 6E, DDR4 support, PCIe 4.0 capabilities, and dual M.2 connectors, it is optimized for Intel® Core 14th /13th /12th Gen processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
B760 GAMING PLUS WIFI DDR4 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5333+(OC) MHz
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifikācija
| Audio čips | Realtek ALC897 |
| Audio kanālu | 7.1 kanāli |
| Komponente paredzēta | PC |
| Čipkomplekts | Intel B760 |
| Čipkomplekta ģimene | Intel |
| Formas faktors | ATX |
| Atbalstītās Windows operētājsistēmas | Windows 10 x64/Windows 11 x64 |
| Savienojams procesora sērijas | Intel® Celeron®/Intel® Pentium® Gold |
| Maksimālā atmiņa | 128 GB |
| Procesora ražotājs | Intel |
| Procesora ligzda | LGA 1700 |
| ECC saderība | Non-ECC |
| Atmiņas kanāli | Dual-channel |
| Atmiņas formas faktors | DIMM |
| Atmiņas slotu skaits | 4 |
| Atbalstītie atmiņas pulksteņa ātrumi | 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333 MHz |
| Atbalstītie atmiņas tipi | DDR4-SDRAM |
| Atbalstītie cietie diski | 4 |
| Atbalstīti uzglabāšanas diska | 6 |
| RAID līmeņi | 0/1/10/5 |
| RAID atbalsts | Jā |
| Atbalstītās diska saskarne | M.2,SATA |
| SATA savienotāji | 4 |
| RGB LED pinheader | Jā |
| S/PDIF izejas savienotājs | Jā |
| TPM galvene | Jā |
| Iekšējie USB 2.0 savienotāji | 4 |
| Iekšējie USB 3.2 Gen 1 savienotāji | 3 |
| DisplayPort versija | 1.4 |
| DisplayPort portu skaits | 1 |
| Ethernet (RJ-45) portu skaits | 1 |
| HDMI portu skaits | 1 |
| HDMI versija | 2.1 |
| USB 2.0 portu skaits | 4 |
| USB 3.2 Gen 2 Type-A portu skaits | 2 |
| USB 3.2 Gen 2 Type-C portu skaits | 1 |
| Bluetooth | Jā |
| Bluetooth versija | 5.3 |
| Ethernet veids | 2.5 Gigabit Ethernet |
| Ethernet LAN | Jā |
| LAN kontrolieris | Dragon RTL8125BG |
| Augstākais Wi-Fi standarts | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Jā |
| Wi-Fi standardi | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| M.2 slotu skaits | 2 |
| PCI Express x1 (Gen 3.x) spraugas | 3 |
| PCI Express x1 (Gen 4.x) spraugas | 3 |
| PCI Express x16 (Gen 4.x) sloti | 2 |
| PCI Express x16 sloti | 2 |
| ACPI versija | 6.4 |
| BIOS atmiņas lielums | 256 Mbit |
| BIOS veids | UEFI AMI |
| Dziļums | 304.8 mm |
| Platums | 243.84 mm |
| Modelis | B760 GAMING PLUS WIFI DDR4 |
