MONITOR ACC DESK MOUNT 17-32"/DS75-450WH2 NEOMOUNTS
NEOMOUNTS · 8717371449490
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 8717371449490
- Zīmols
- NEOMOUNTS
Apraksts
The Neomounts DS75-450WH2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position.

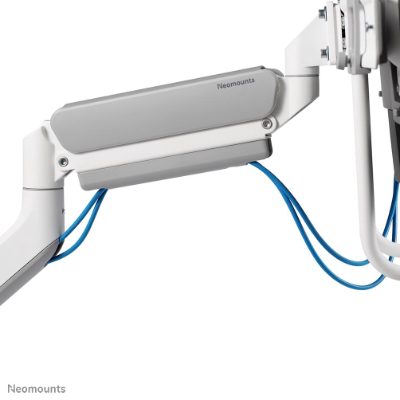

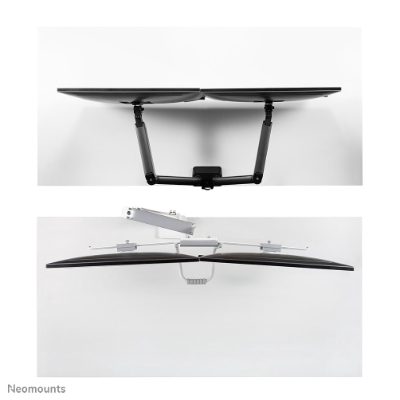

The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Specifikācija
| Galda biezums (maks.) | 45 mm |
| Galds biezums (min) | 10 mm |
| Maksimālais ekrāna izmērs | 32 " |
| Maksimālais VESA modelis | 100 x 100 mm |
| Maksimālā noslodze | 8 kg |
| Maksimālā noslodze uz displeju | 8 kg |
| Minimālais ekrāna izmērs | 17 " |
| Minimālais VESA modelis | 75 x 75 mm |
| Stiprinājuma veids | Clamp/Grommet |
| Montāžas veids | Galds |
| Atbalstīti displei | 2 |
| VESA standarts | 100 x 100/75 x 75 mm |
| Regulējams dziļums | Jā |
| Pagriešanas leņķis | 360 ° |
| Kabeļu vadīšana | Jā |
| Dziļuma regulēšanas diapazons | 0 - 680 mm |
| Augstuma regulēšana | Jā |
| Augstuma regulēšanas diapazons | 0 - 280 mm |
| Augstuma regulēšanas veids | Gāzes atspere |
| Pagrieziena leņķa diapazons | -180 - 180 ° |
| Griešanās montāža | Jā |
| Pagriešanas leņķa diapazons | -90 - 90 ° |
| Slīpuma regulēšana | Jā |
| Slīpuma leņķa diapazons | -10 - 10 ° |
| Platuma pielāgošana | 540 mm |
| Materiāls | Tērauds |
| Krāsa | Balts |
| Dziļums | 115 mm |
| Augstums | 646 mm |
| Svars | 6400 g |
| Platums | 853 mm |
| Montāžas komplekts iekļauts | Jā |
| Minimālais svars | 1 kg |
| Garantija | 5 gads(i) |
| Platuma regulēšanas diapazons | 0 - 540 mm |
| Izcelsmes valsts | Ķīna |
| Modelis | DS75-450WH2 |
