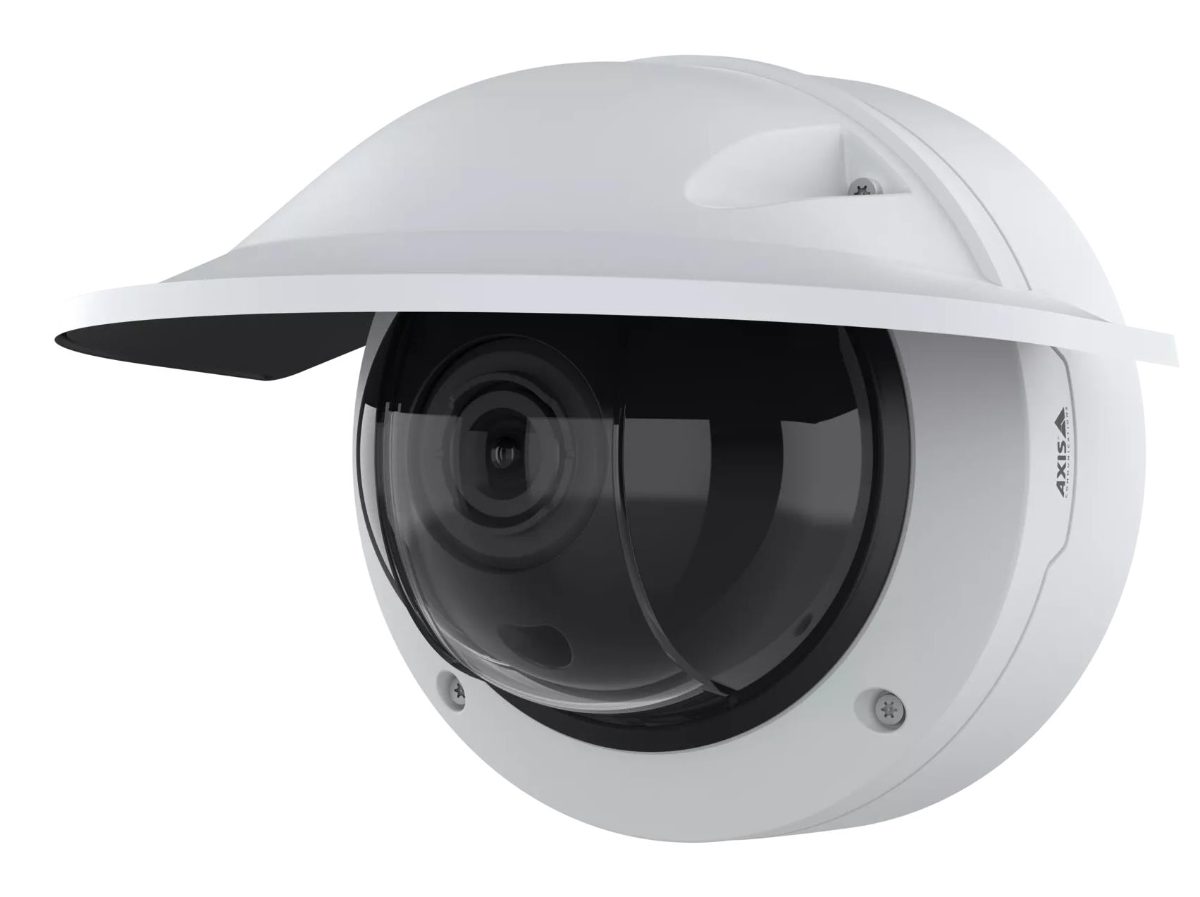

NET CAMERA Q3558-LVE DOME/03206-001 AXIS
AXIS · 7331021090705
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 60 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 7331021090705
- Zīmols
- AXIS
Apraksts
Built on ARTPEC-9, this robust AI-powered camera with support for AV1 codec offers accelerated performance to run impressive analytics applications on the edge. Furthermore, AXIS Audio Analytics can detect critical sounds, adding an extra layer of security.
Outstanding image quality
AXIS Q3558-LVE offers outstanding image quality and forensic details in 8 MP resolution, even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome prevents IR reflections from rain and snow ensuring clear, sharp images every time. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Furthermore, electronic image stabilization keeps the image steady when the camera is subject to vibrations.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.
Powerful video and audio analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. With an acoustic sensor and support for AXIS Audio Analytics, you be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts, as well as changes in sound level. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.
Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -50°C to 55 °C (-58 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.
- Outstanding image quality in 8 MP
- Next-generation AI-powered analytics
- R-shielded dome to prevent reflections
- AXIS Audio Analytics preinstalled
- Built-in cybersecurity with Axis Edge Vault
Specifikācija
| Formas faktors | Dome |
| Materiāls | Aluminium/Polycarbonate (PC) |
| IK ietekmes novērtējums | IK10 |
| IP klase | IP66, IP6K9K |
| LED indikatori | Jā |
| Montāžas veids | Ceiling/Wall/Pole |
| Krāsa | Balts |
| Laikapstāvokļa aizsargs | Jā |
| Iebūvēts procesors | Jā |
| Savienojuma tehnoloģija | Vadu |
| Dienas/nakts režīms | Jā |
| Dinamiskais diapazons | 120 dB |
| Infrasarkanā (IR) uztveršanas filtrs | Jā |
| Novietojums | Ārtelpu |
| Procesora modelis | ARTPEC-9 |
| PTZ vadība | Jā |
| Maršruta ieraksts | Jā |
| Produkta veids | IP drošības kamera |
| Digitālais plašs dinamiskais diapazons (DWDR) | Jā |
| Pagriešanas leņķis | 180 ° |
| Kameras panorāmas vadība | Jā |
| Kameras pikseļa izmērs | 2.9 µm |
| Aizvara ātrums | 1/67500 - 2 s |
| Kameras slīpuma vadība | Jā |
| Objektīva skatu leņķis, horizontāli | 104 - 50 ° |
| Objektīva skatu leņķis, vertikāli | 56 - 28 ° |
| Minimālais apgaismojums | 0.007 lx |
| Panorāmas diapazons | -180 - 180 ° |
| Slīpuma leņķa diapazons | -42 - 80 ° |
| Sensoru skaits | 1 |
| Optiskā sensora izmērs | 1/1.2 " |
| Progresīvā skenēšana | Jā |
| Sensora veids | CMOS |
| Automātiskais fokuss | Jā |
| Uztveršanas attālums, telefoto | 178 m |
| Konstatēšanas attālums (plats) | 88 m |
| Fokusa attāluma diapazons | 6.3 - 13 mm |
| Identificēšanas attālums, tālummaiņa | 18 m |
| Identificēšanas attālums, plats | 9 m |
| Maksimālā apertūra | 2.9 |
| Minimālā diafragma | 1.6 |
| Novērošanas attālums, tālummaiņa | 71 m |
| Novērošanas attālums (plats) | 35 m |
| Optiskā tālummaiņa | 2 x |
| Atpazīšanas attālums, tālummaiņa | 36 m |
| Atpazīšanas attālums (plats) | 18 m |
| Tālummaiņas iespēja | Jā |
| Infrasarkanā viļņa garums | 850 nm |
| IR LED veids | IR |
| Nakts redzamība | Jā |
| Infrasarkanā nakts redzamības diapazons | 60 m |
| Kadru skaits sekundē | 60 fps |
| Attēla kvalitātes regulēšana | Brightness/Contrast/Saturation/Sharpness/White balance |
| Attēla stabilizēšana | Jā |
| Maksimālā izšķirtspēja | 3840 x 2160 pikseļi |
| Trokšņa samazināšana | Jā |
| Trokšņa samazināšanas tehnoloģija | 2D noise reduction,3D noise reduction |
| Teksta virsraksts pārklājums | Jā |
| Kopējie megapikseli | 8 MP |
| Video saspiešanas formāti | AV1/H.264/H.265/M-JPEG |
| Video ierakstīšana | Jā |
| Video straumēšana | Jā |
| Bluetooth | Nē |
| Ethernet veids | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Jā |
| Tīkla standardi | IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3at |
| Pakalpojuma kvalitāte (QoS) | Jā |
| Wi-Fi | Nē |
| Iebūvēts cietais disks | Nē |
| Karšu lasītājs | Jā |
| Atbalstītās atmiņas kartes | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash atmiņa | 8192 MB |
| Atmiņas ietilpība | 4096 MB |
| DC izejas ligzda | Jā |
| Ethernet (RJ-45) portu skaits | 1 |
| Spaiļu bloka ports | Jā |
| Tīkla piekļuves glabātuve | Jā |
| Pikseļu skaitītājs | Jā |
| Kustības detektors | Jā |
| Pārvaldīts mākonī | Jā |
| Izejas spriegums | 8,9,10,12,15,16,24,28 |
| Maksimālais enerģijas patēriņš | 25.5 W |
| Tipiska enerģijas patēriņa | 6.9 W |
| Enerģijas avots | DC,PoE |
| Darbības mitrums | 10 - 100 % |
| Darbības temperatūra | -50 - 55 °C |
| Uzglabāšanas mitrums (ne-darbības) | 5 - 95 % |
| Uzglabāšanas temperatūra | -40 - 65 °C |
| Svars | 2310 g |
| Instrukcija iekļauta | Jā |
| Montāžas komplekts iekļauts | Jā |
| Kameru skaits | 1 |
