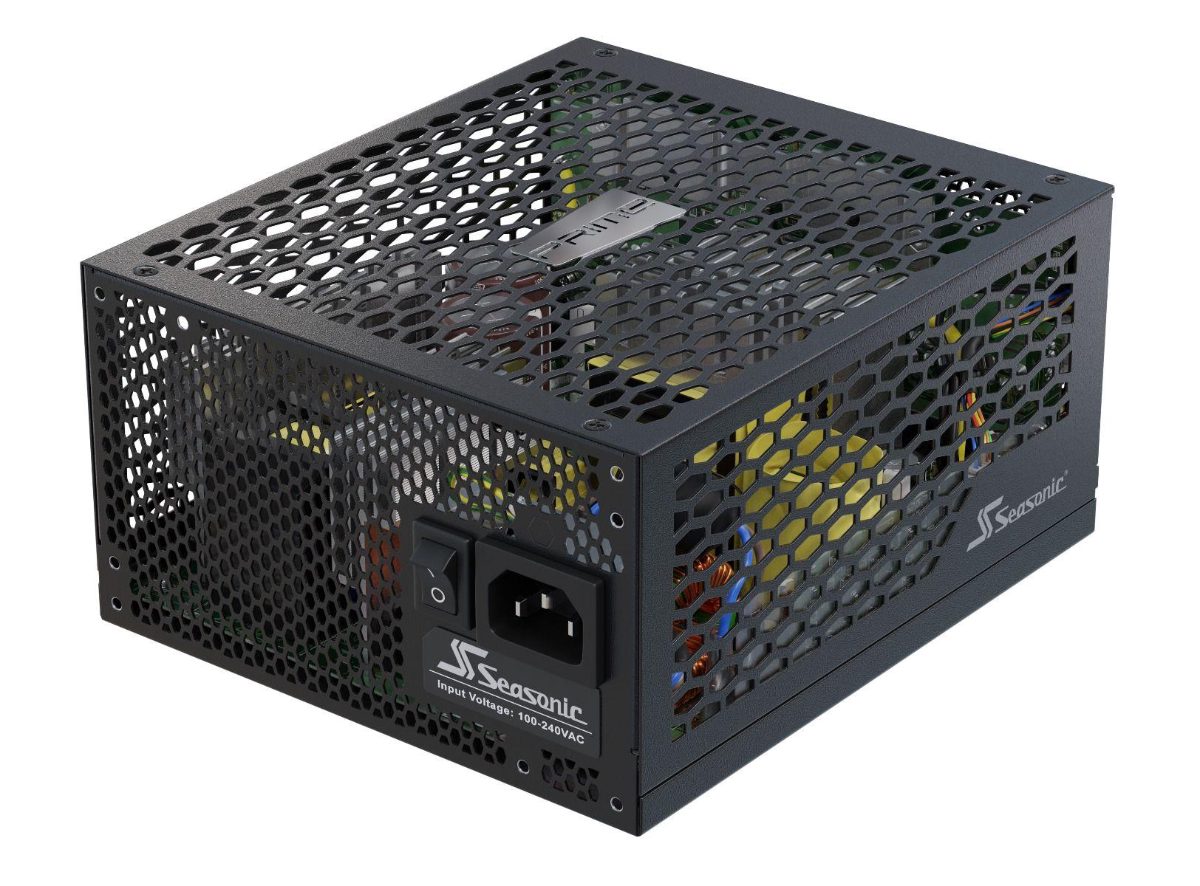

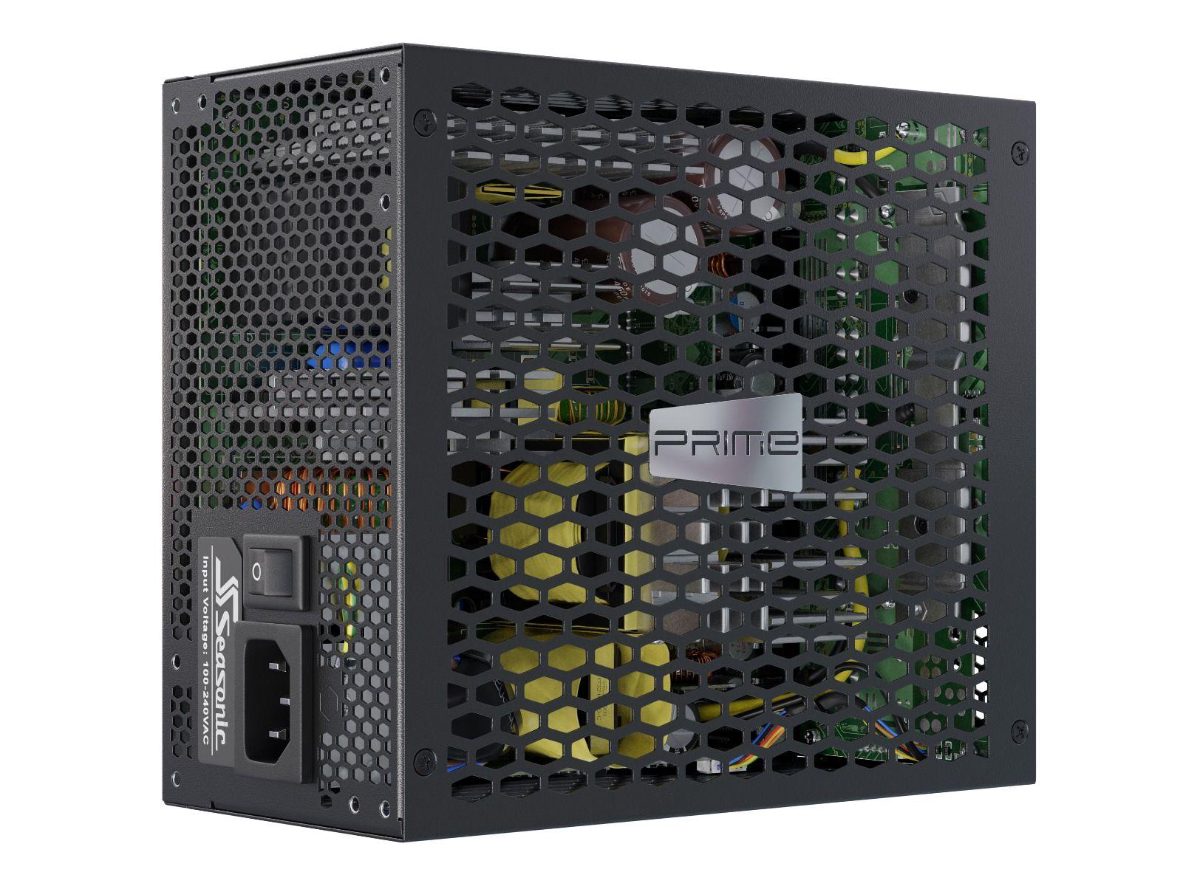

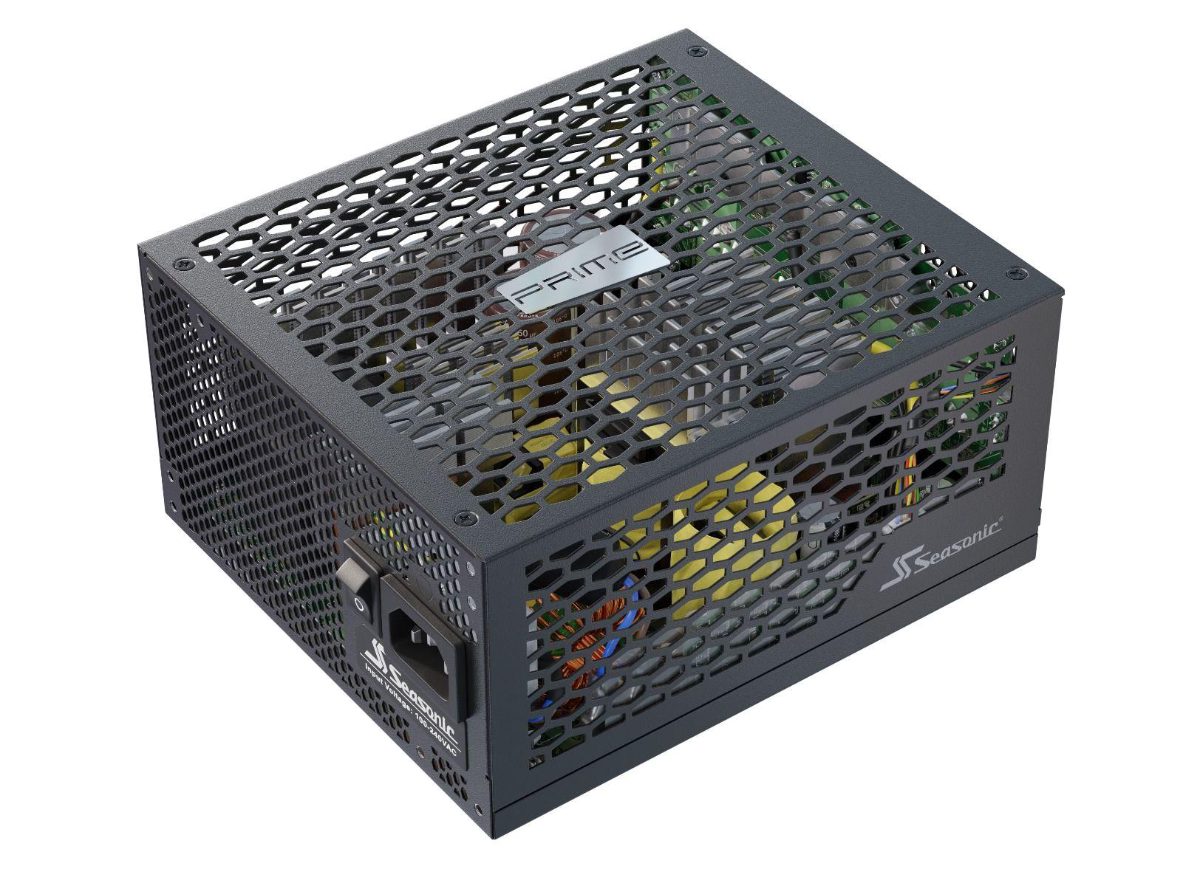

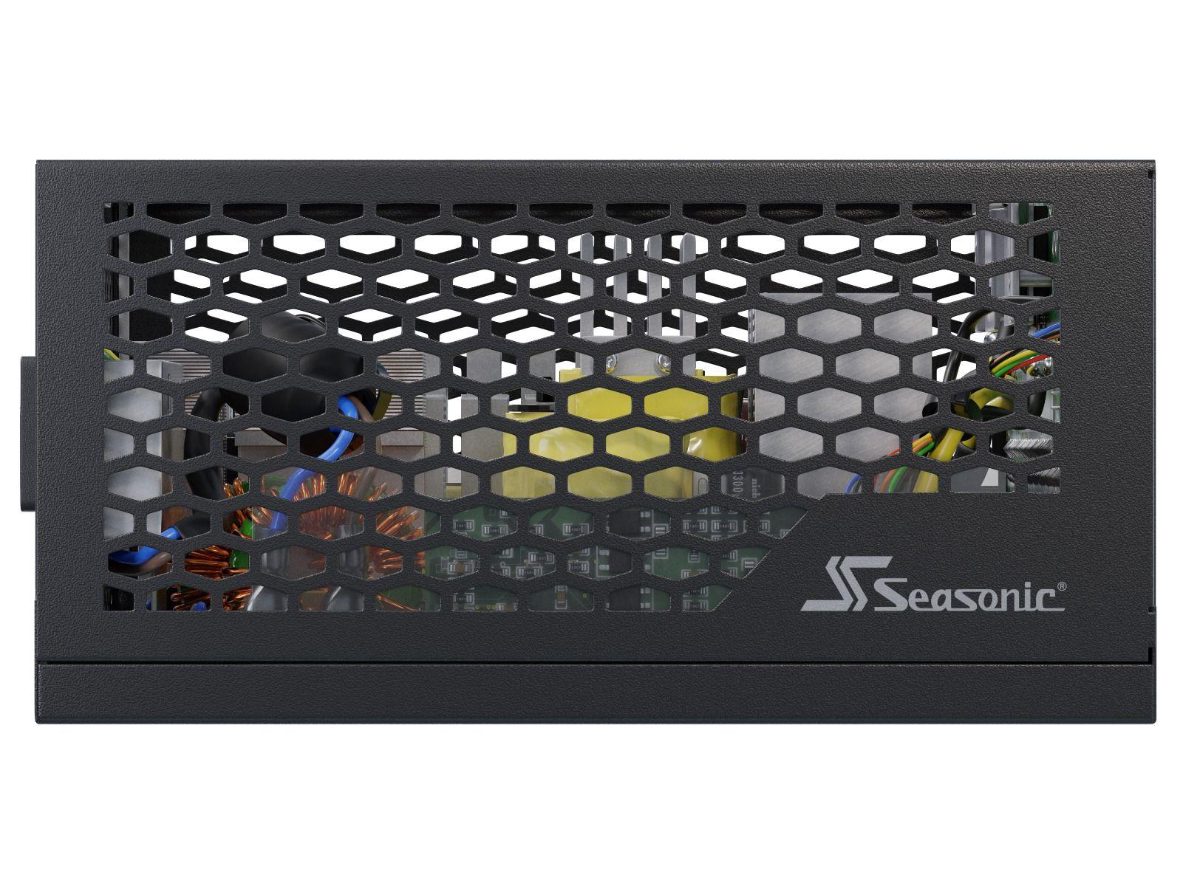

Power Supply, SEASONIC, PRIME FANLESS TX, ATX, PC, 100 - 240 V, 700 W
Power Supply, SEASONIC, PRIME FANLESS TX, ATX, PC, 100 - 240 V, 700 W, PRIME-TX-700
SEASONIC · 4711173876175
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 144 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 4711173876175
- Zīmols
- SEASONIC
Apraksts
PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
80 PLUS® Titanium
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Seasonic Fanless Design

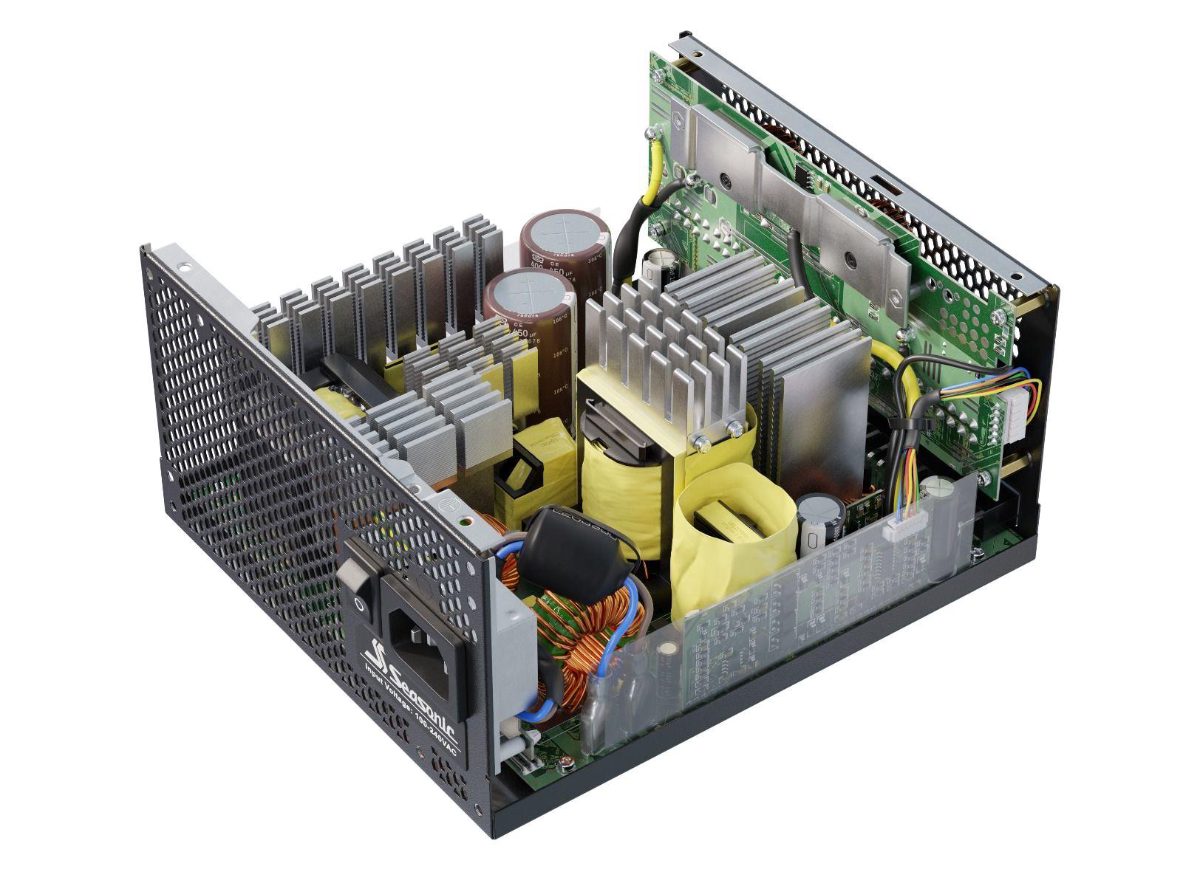

Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.
- ATX 12 V
- Full Modular
- 80 PLUS Titanium Certified
- Dimensions: 170 mm (L) x 150 mm (W) x 86 mm (H)
Specifikācija
| Ieejas frekvence | 50 - 60 Hz |
| Ieejas spriegums | 100 - 240 V |
| Kopējā jauda (+12V magistrāle) | 696 W |
| Kopējā jauda (+3,3V) | 100 W |
| Kopējā jauda (+5V) | 100 W |
| Kopējā jauda (+5Vsb) | 15 W |
| Kopējā jauda (-12V) | 3.6 W |
| Efektivitāte | 94 % |
| Ieejas strāva | 4.5 - 9.5 A |
| Maksimālā izejas strāva (+12V) | 58 A |
| Maksimālā izejas strāva (+3,3V) | 20 A |
| Maksimālā izejas strāva (+5V) | 20 A |
| Maksimālā izejas strāva (+5Vsb) | 3 A |
| Maksimālā izejas strāva (-12V) | 0.3 A |
| Enerģijas aizsardzības funkcijas | Over current/Over power/Over voltage/Short circuit/Under voltage |
| Nominālā jauda | 700 W |

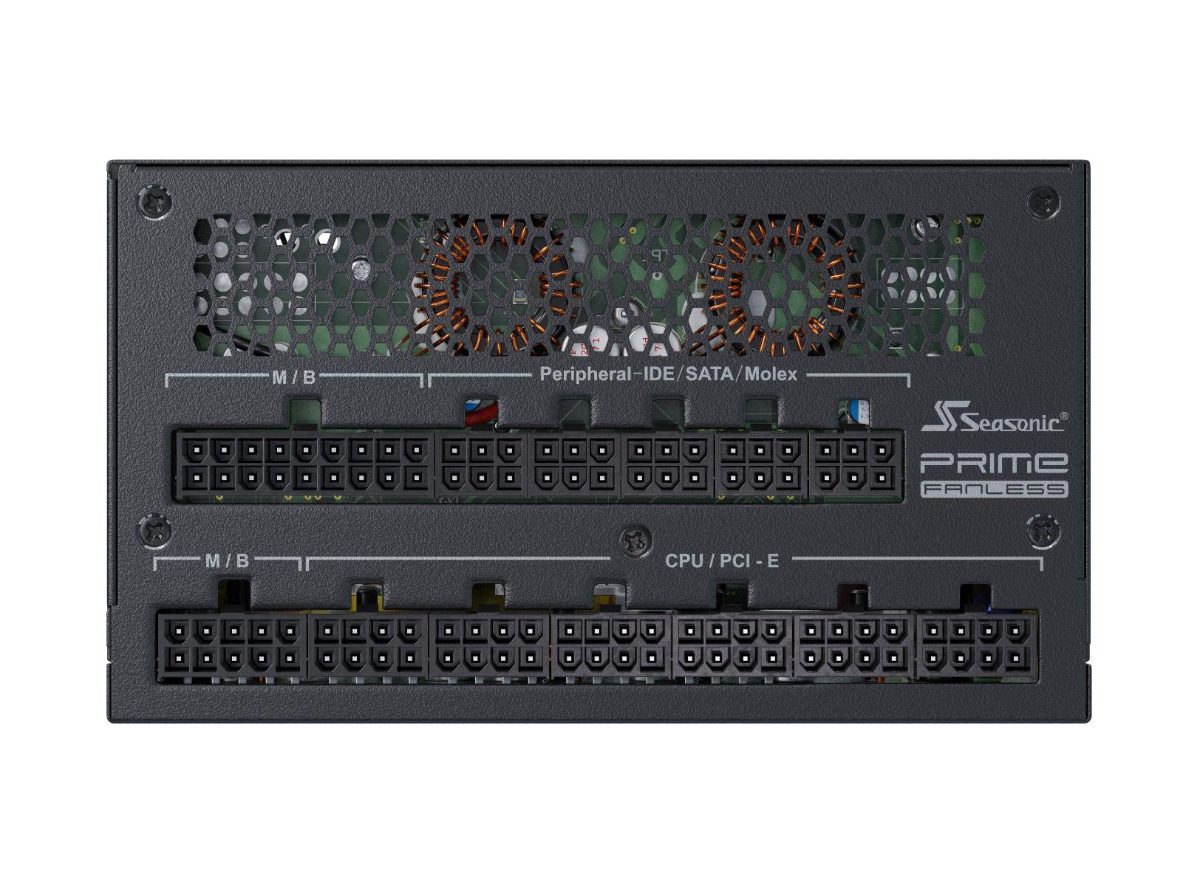

| PSU kabeļu veids | Fully-Modular |
| CPU barošanas kabeļa garums | 650 mm |
| CPU barošanas savienotāju skaits | 2 |
| Pamatplates barošanas kabeļa garums | 610 mm |
| Pamatplates enerģijas savienotājs | 20+4 pin ATX |
| SATA enerģijas savienotāju skaits | 3 |
| PCI Express barošanas kabeļa garums | 750 mm |
| PCI Express enerģijas savienotāju (12+4 pin) | 4 |
| Molex barošanas kabeļa garums | 300/470/690 mm |
| Molex enerģijas savienotāju | 3 |
| SATA barošanas kabeļa garums | 450/800/810 mm |
| 80 PLUS sertifikācija | 80 PLUS Titanium |
| MTBF | 150000 h |
| Formas faktors | ATX |
| Paredzētā izmantošana | PC |
| Atbalstītie pamatplates formas faktori | ATX |
| Dzesēšanas veids | Pasīvs |
| Ieslēgšanas/izslēgšanas poga | Jā |
| Krāsa | Melns |
| Darbības temperatūra | 0 - 45 °C |
| Sertifikācija | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH |
| Sertifikāti | RoHS |
| Dziļums | 170 mm |
| Augstums | 86 mm |
| Platums | 150 mm |
| Ilgtspējamības sertifikāti | ENERGY STAR |
| Modeļa nosaukums | PRIME FANLESS TX |
