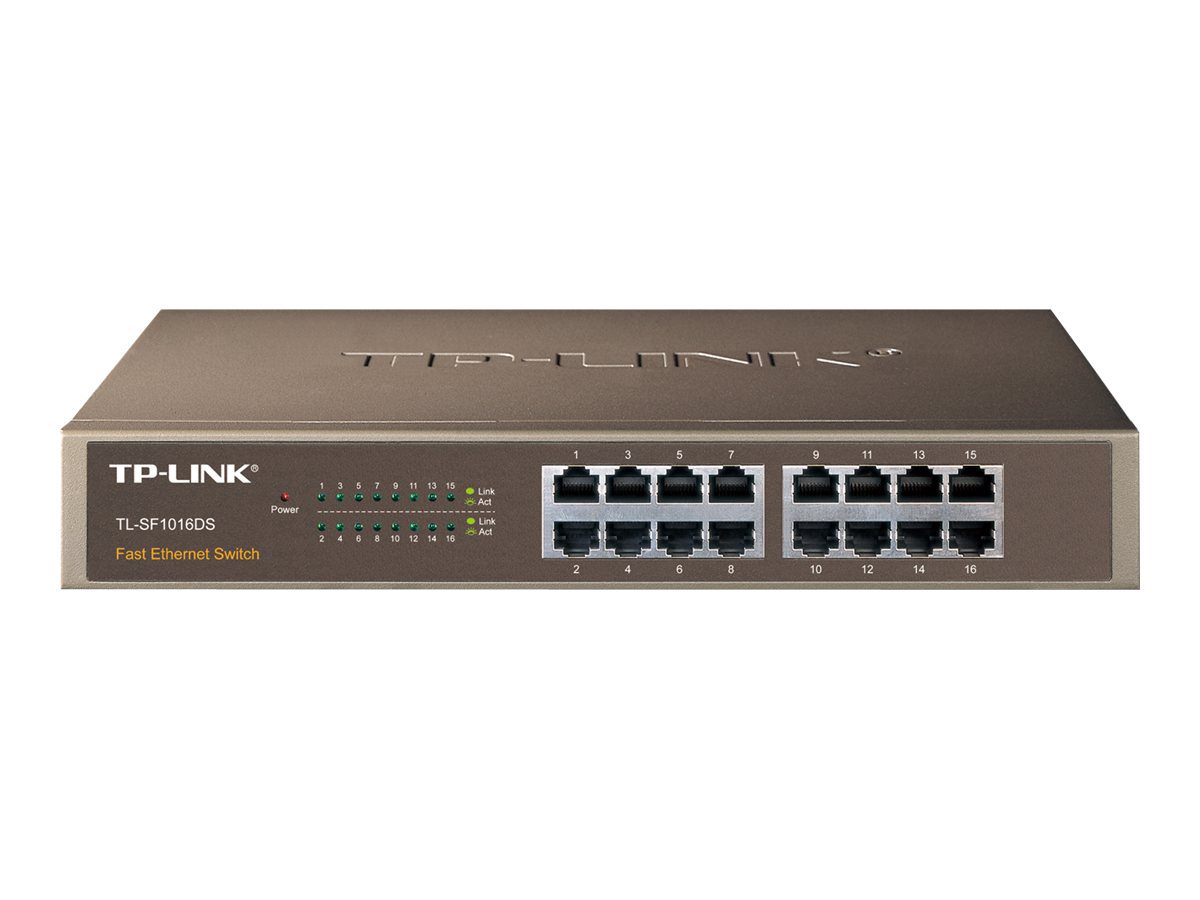

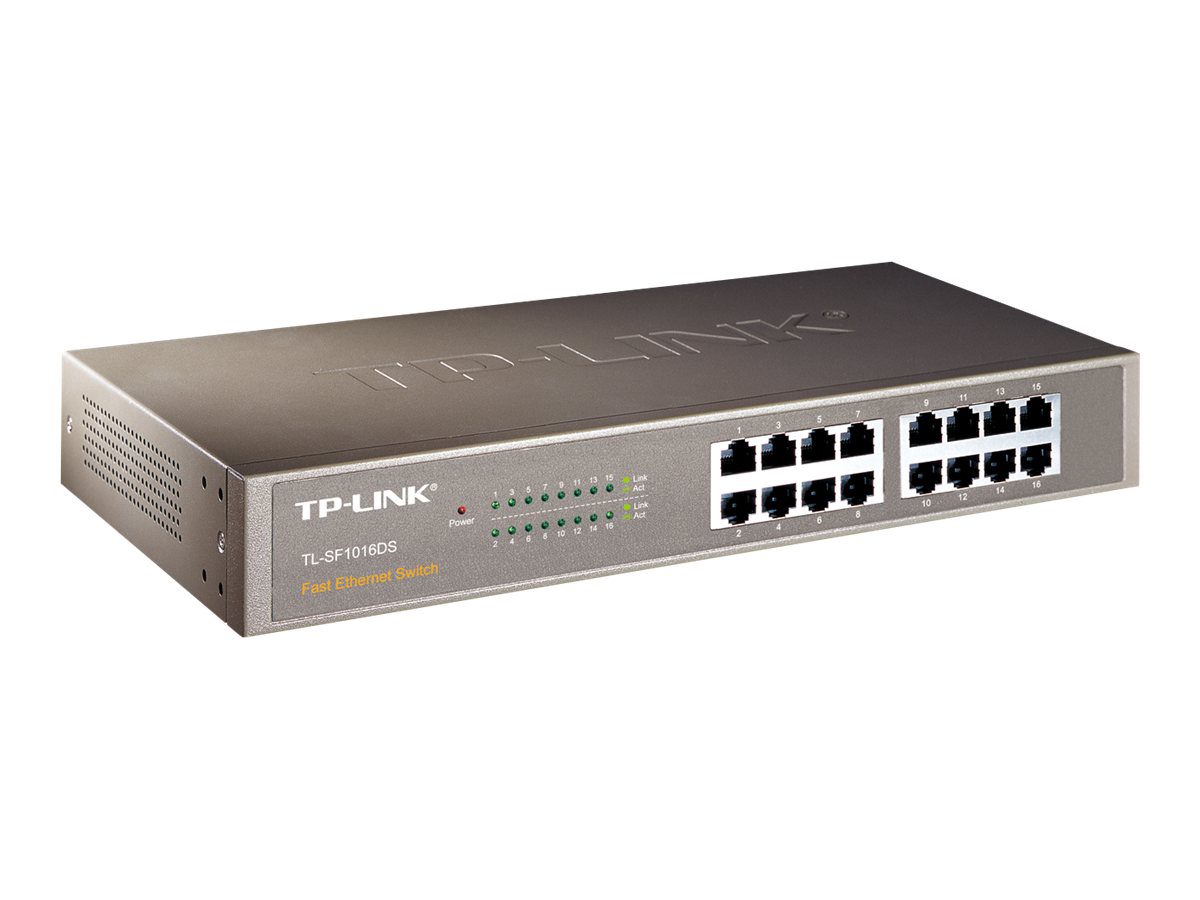

Switch, TL-SF1016DS, Unmanaged, Desktop/Rackmountable
Switch, TL-SF1016DS, Unmanaged, Desktop/Rackmountable, 10/100 Mbps (RJ-45) ports quantity 16, Power supply type External
TP-LINK · 6935364021535
Rēķins tiek nosūtīts uzreiz pēc pasūtījuma.
- Apmaksa: pārskaitījums vai maksājums saņemot
- Piegāde: 1–3 darba dienas, visā Latvijā
- Garantija: 36 mēn.
- Rēķins: katram pasūtījumam
- EAN
- 6935364021535
- Zīmols
- TP-LINK
Apraksts
What This Product Does
The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.
TP-LINK Green Technology
This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
- 16 10/100M RJ45 ports
- Innovative energy-efficient technology saves power up to 75%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 13-inch steel case
Specifikācija
| Slēdža veids | Unmanaged |
| Ethernet (RJ-45) portu skaits | 16 |
| Ethernet veids | Fast Ethernet (10/100) |
| Auto MDI/MDI-X | Jā |
| Automātiska negociācija | Jā |
| Kabeļu tehnoloģija | 100BASE-TX/10BASE-T |
| Plūsmas kontrole | Jā |
| Pilnduplexa režīms | Jā |
| Pus-duplekss | Jā |
| Tīkla standardi | IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Pārsūtīšanas ātrums | 2.38 Mpps |
| Lielas kadra izmērs | 2000 |
| Jumbo rāmji | Jā |
| MAC adreses tabulas lielums | 8000 ieraksti |
| Maksimālais datu pārsūtīšanas ātrums | 0.1 Gbit/s |
| Paketes buffera atmiņa | 2 MB |
| Noglabāt un pārsūtīt | Jā |
| Ethernet datu pārsūtīšanas ātrumi | 10/100 Mbps |
| Pārslēgšanas jauda | 3.2 Gbit/s |
| MAC adreses filtrēšana | Jā |
| Tīkla protokoli | CSMA/CD, TCP/IP |
| LED indikatori | Link/Power |
| Krāsa | Melns |
| Kreklu montējams | Jā |
| Ieejas frekvence | 50 - 60 Hz |
| Ieejas spriegums | 100 - 240 V |
| Maksimālais enerģijas patēriņš | 2.06 W |
| Enerģijas avots | AC |
| Barošanas bloks iekļauts | Jā |
| Savienojuma tehnoloģija | Vadu |
| Izmēri | 294 x 180 x 44 mm |
| Jaudas prasības | 100 - 240VAC, 50/60Hz |
| Wi-Fi | Nē |
| Siltuma izkliede | 2.06 BTU/h |
| Darbības mitrums | 10 - 90 % |
| Darbības temperatūra | 0 - 40 °C |
| Uzglabāšanas mitrums (ne-darbības) | 5 - 90 % |
| Uzglabāšanas temperatūra | -40 - 70 °C |
| Dziļums | 180 mm |
| Augstums | 44 mm |
| Platums | 294 mm |
| Sertifikācija | FCC, CE, RoHS |
| Modeļa nosaukums | 16-Port 10/100Mbps Desktop/Rackmount Network Switch |
