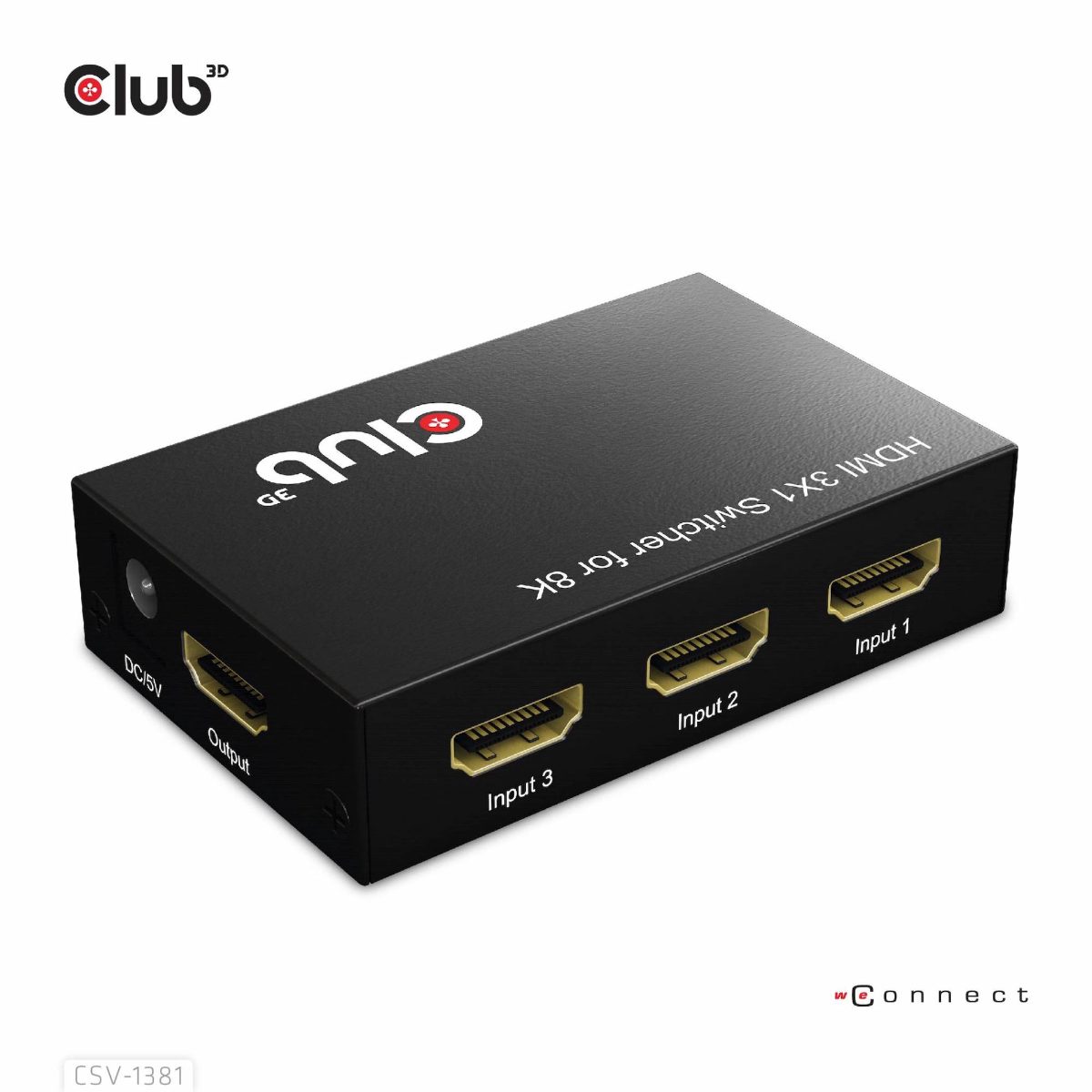

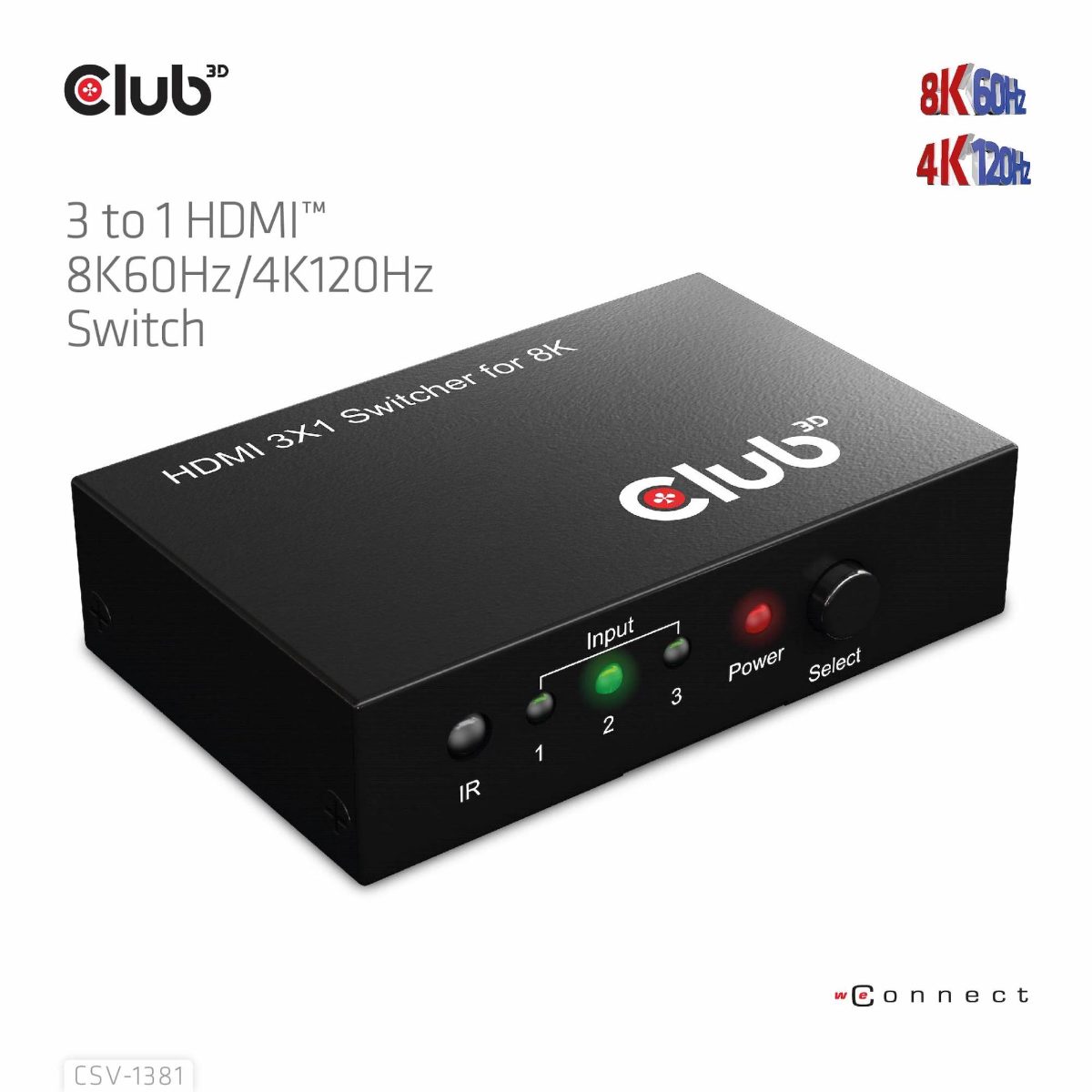

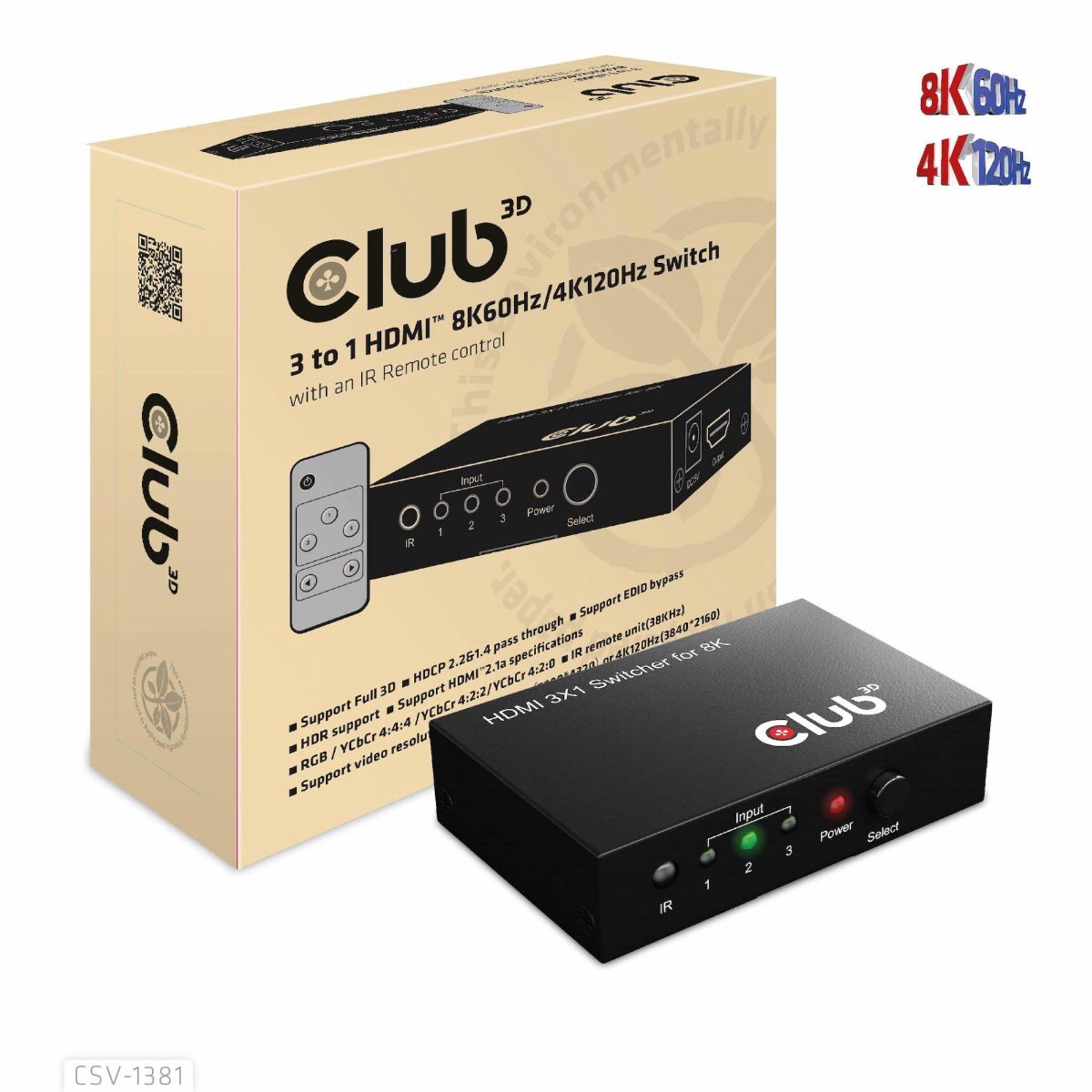

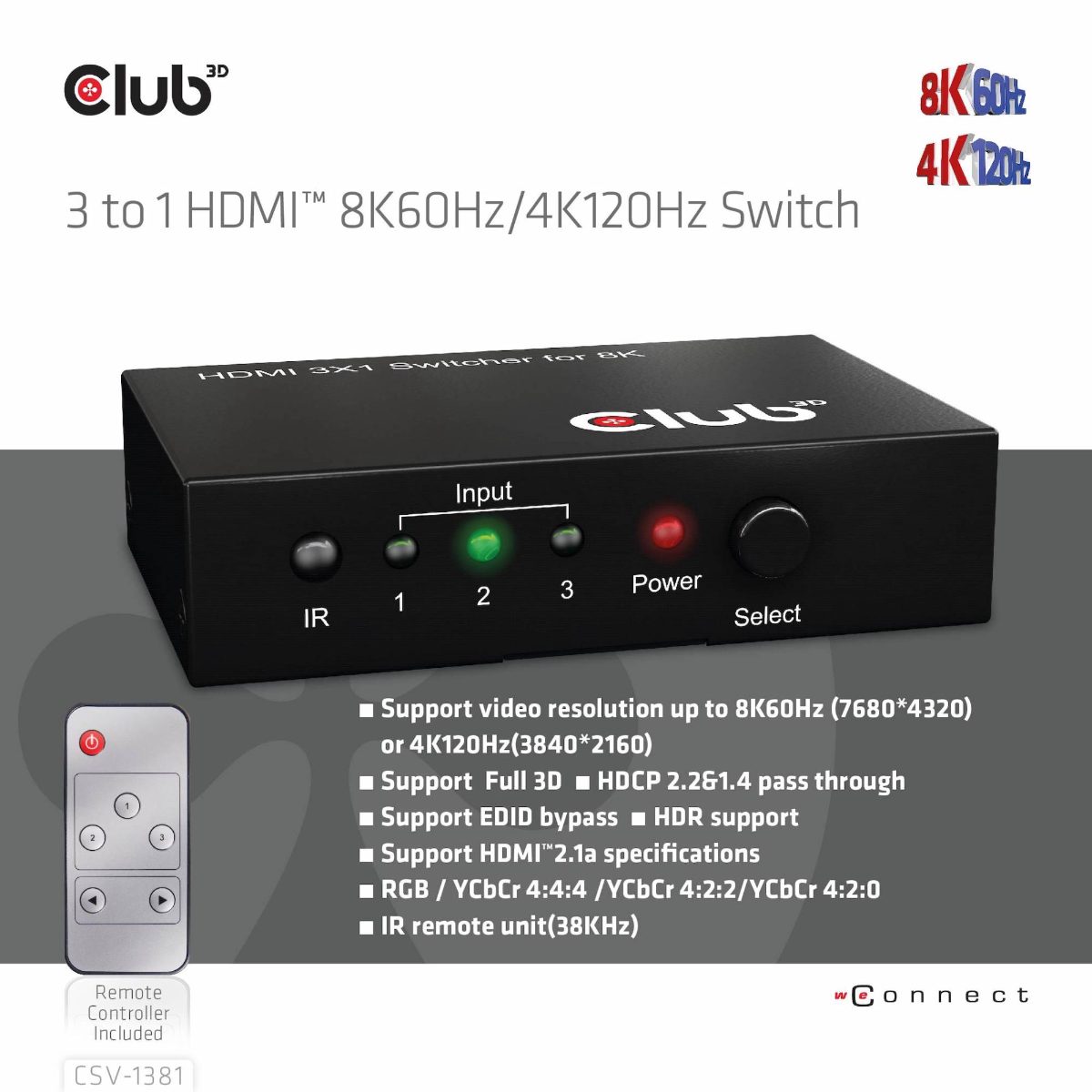

VIDEO SWITCH HDMI 3PORT/CSV-1381 CLUB3D

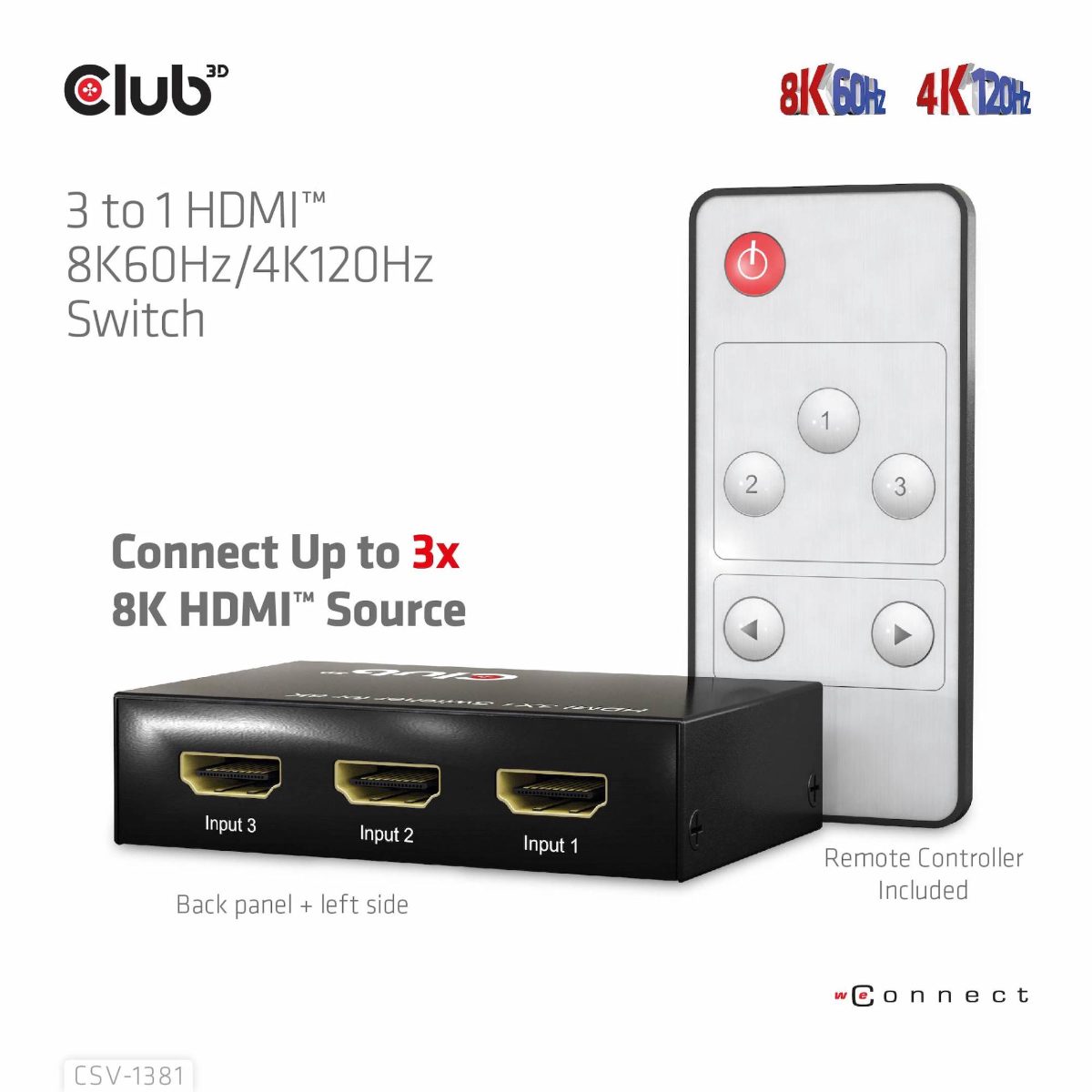

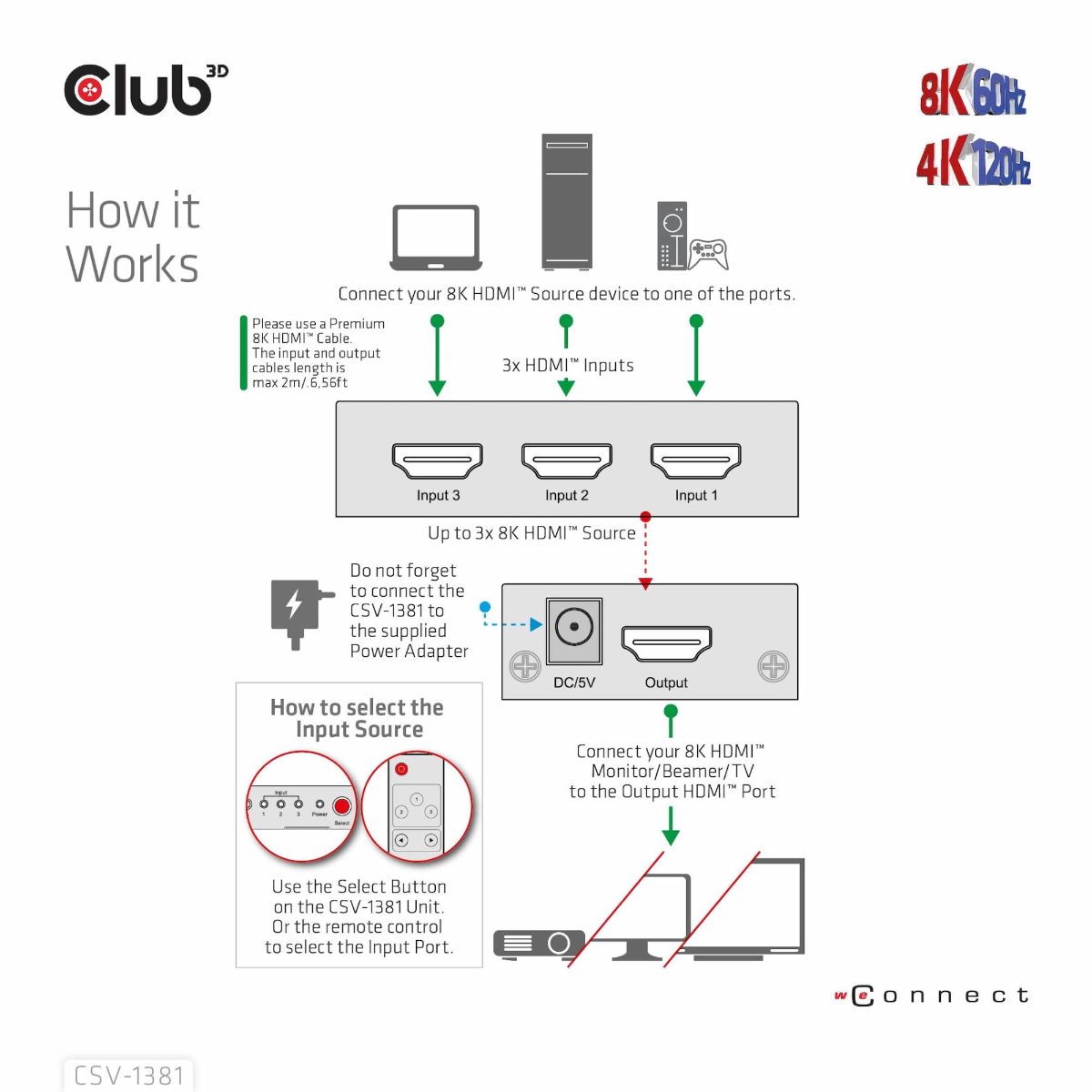

The Club 3D CSV-1381 is a 3 to 1 HDMI™2.1a spec. Switch that routes your highdefinition video and digital audio from any one of the HDMI™ inputs to an
8K60Hz/4K120Hz HDMI™ output. The easiest way of connecting your HighResolution game consoles and/or your PC/Laptop to 1 High-Resolution HDMI™
display up to 8K60Hz or 4K120Hz. All inputs are capable to accommodate up to
8K60Hz/4K120Hz high-definition video sources simultaneously. The output sends
the high-definition audio/video signals to a high definition(8K60Hz) HDMI™2.1a

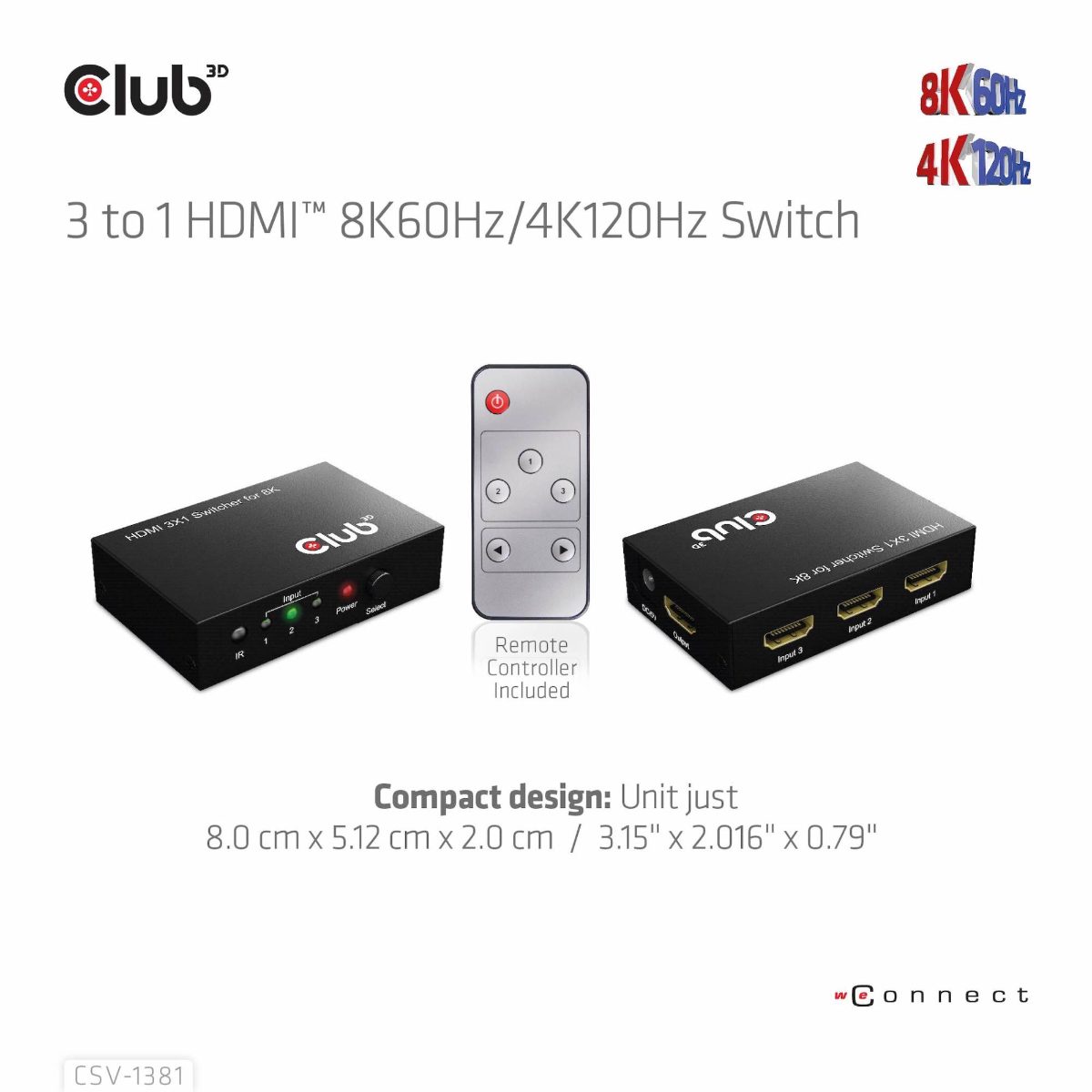

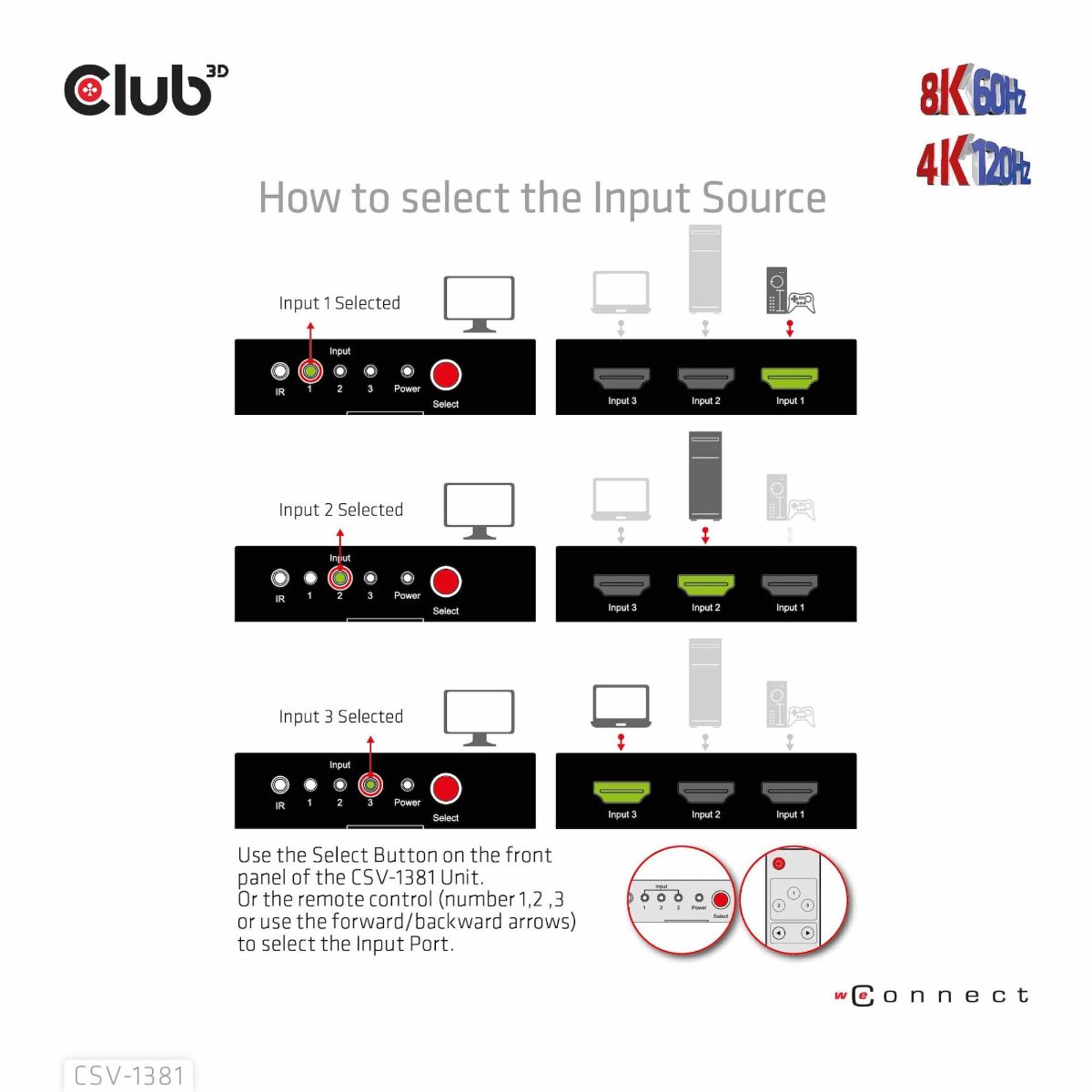

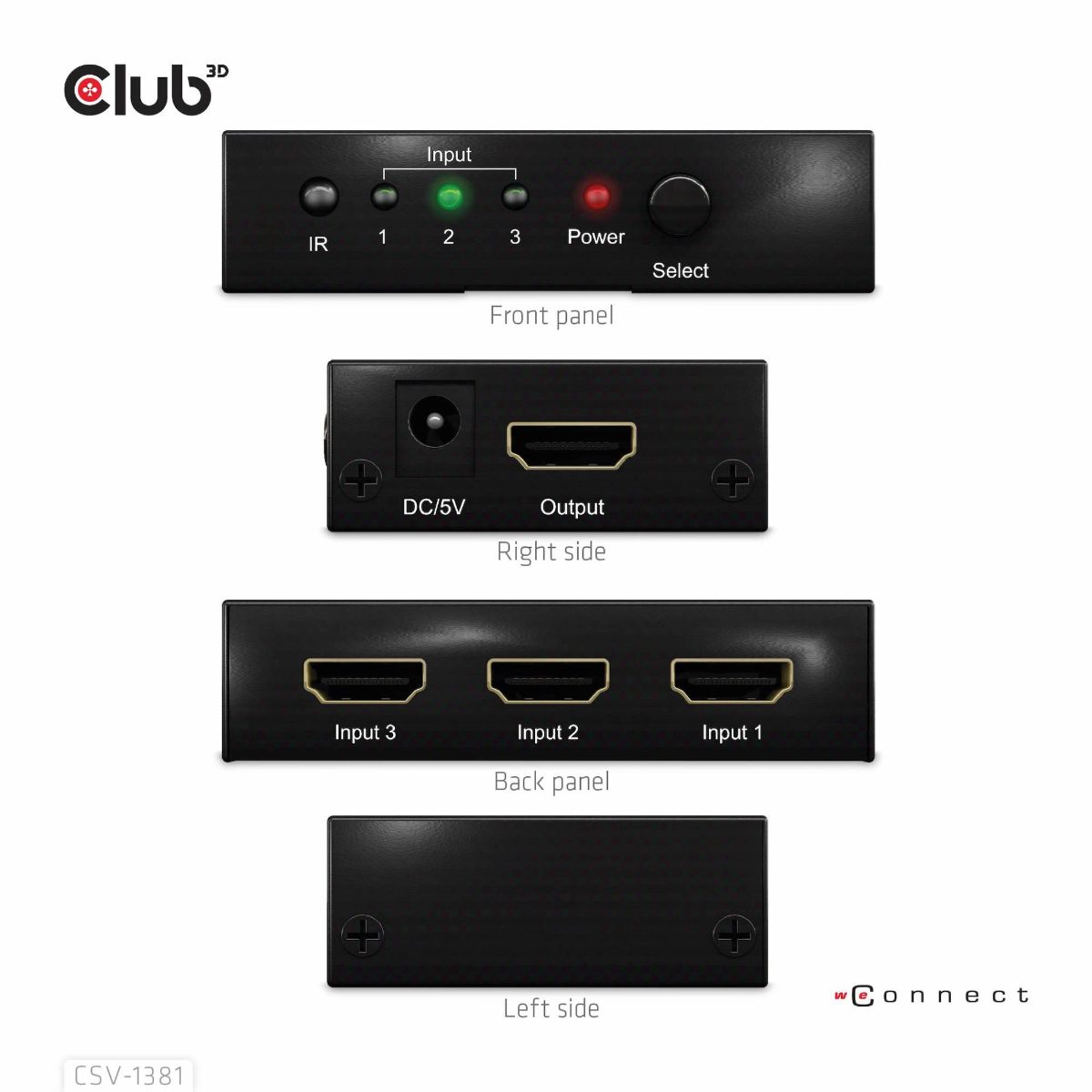

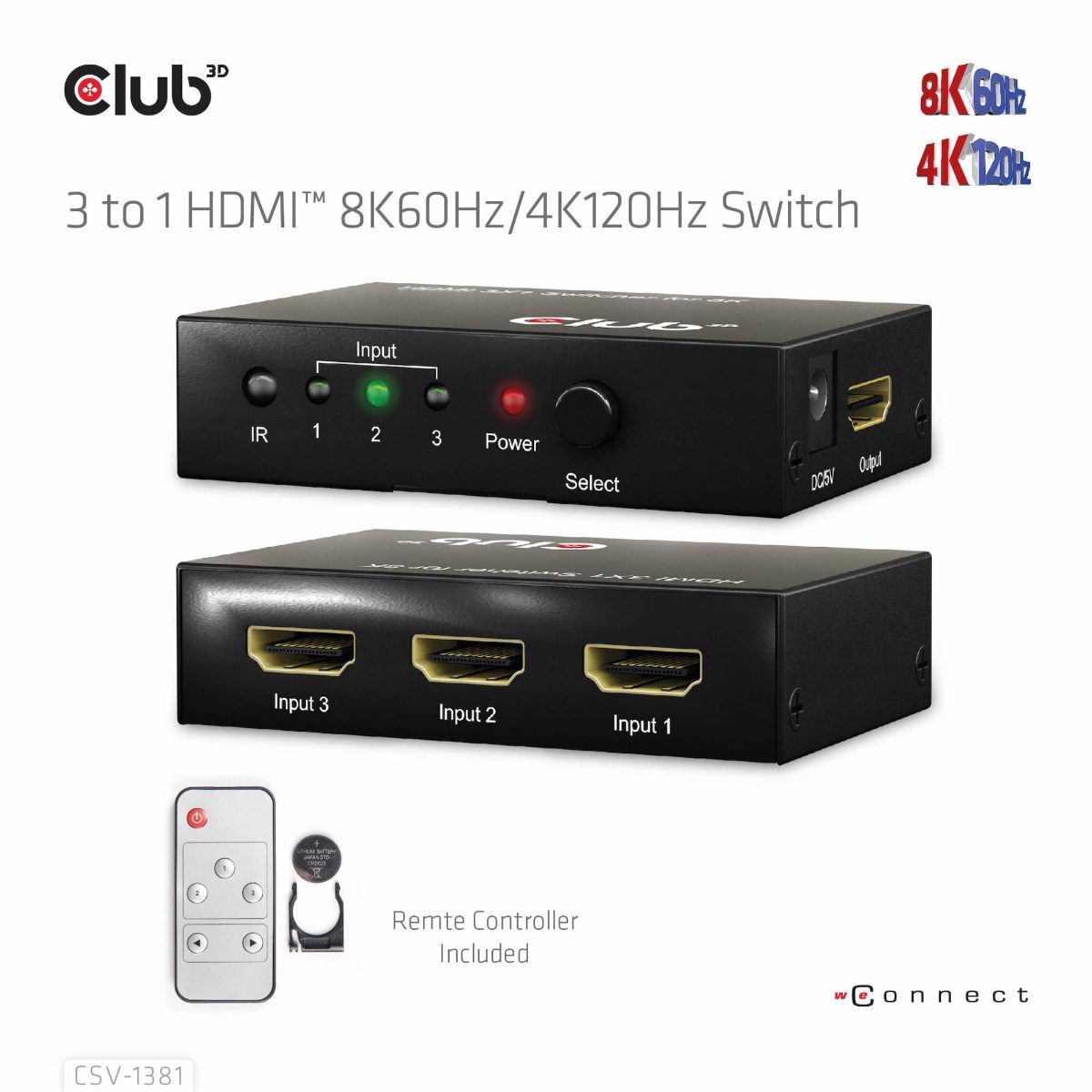

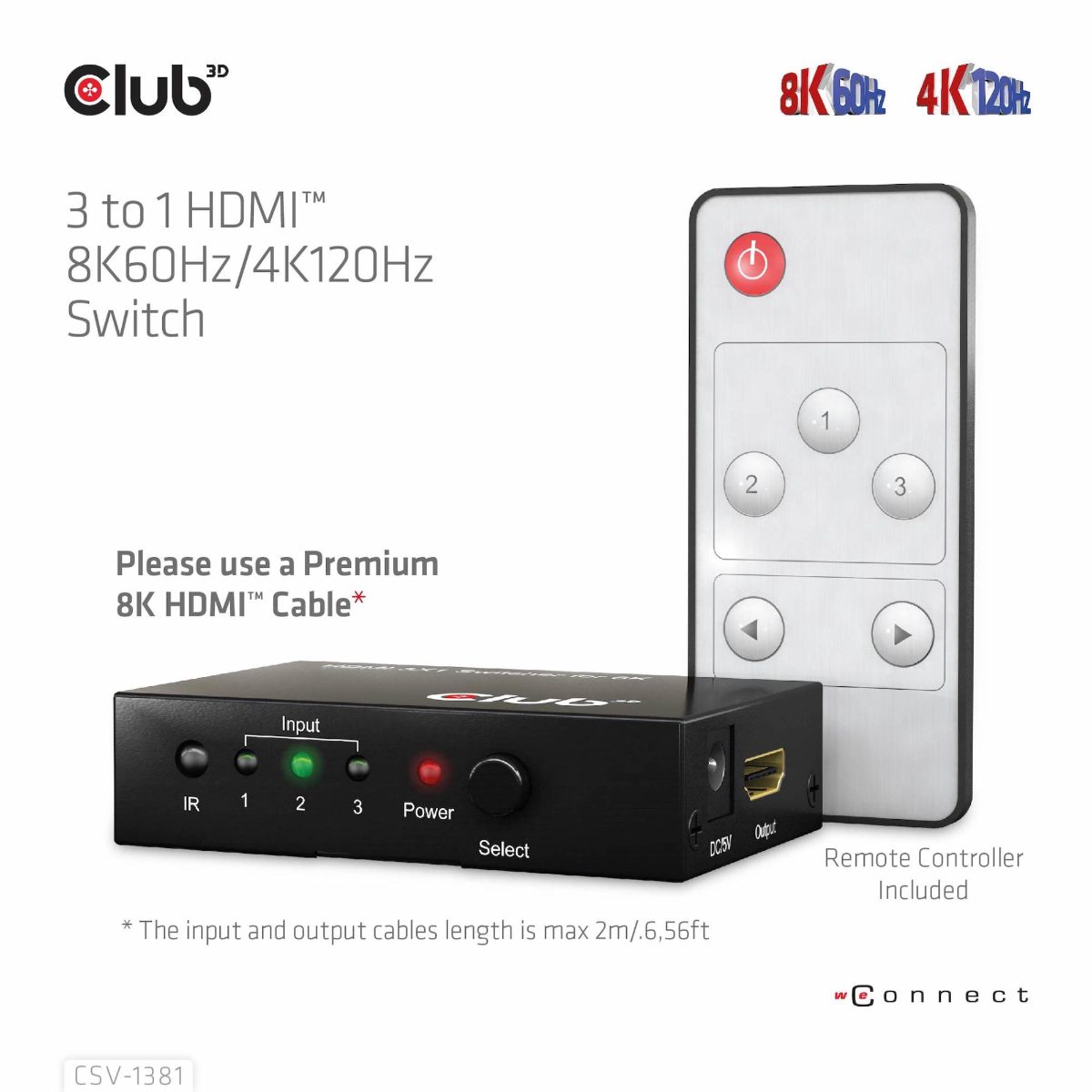

spec. Display. Switching inputs can be done by key pressing, on the unit itself, or
with an IR remote unit for easy switching. This is a high-performance and smallsized HDMI™ 8K Switcher in a metal housing with an external Power Supply of 100-
240VAC / 5V-1A DC. It's an ideal assistant both at home and at work.

• Features:
• Support video resolution up to 8K60Hz(7680*4320) or 4K120Hz(3840*2160)
• Support Full 3D
• HDCP 2.2&1.4 pass through
• Support EDID bypass
• HDR support
• Support HDMI™2.1a specifications
• RGB / YCbCr 4:4:4 /YCbCr 4:2:2/YCbCr 4:2:0
• IR remote unit(38KHz)
• Each Input- and Output- cable length is max. 2m/6.56ft
