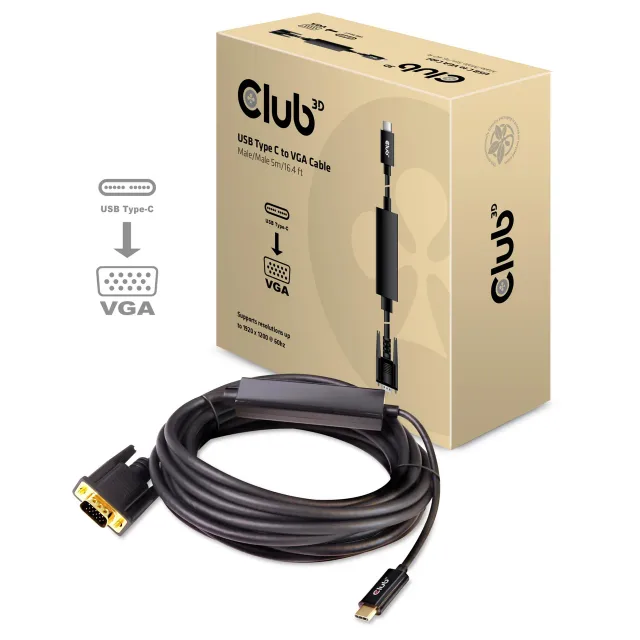

CABLE USB-C TO VGA 5M/M/M CAC-1512 CLUB3D
О товаре
CAC-1512 - The Club 3D CAC-1512 enables the connection of your USB C Supported Computer to a VGA Supported monitor or projector. This is an all in One Solution Cable and Adapter with the reversible USB C connector. Its necessary for the computer to support DisplayPort Alt mode from the USB C connector.
It allows Widescreen Ultra Extended Graphics Array (WUXGA) at a 16x10 aspect ration with a display resolution of 1920x1200 pixels which makes it a great solution for home, office or other work environments.
This USB C to VGA cable works with USB C Devices such as Macbook, Macbook Pro, Chromebook, Dell XPS, Asus Tablet, and Razer.
- Supports DP1.1 Specifications
- Supports MainLink 1Lane HBR (High Bit Rate)at 2.7Gbit/s per lane and 2 lanes at RBR (Reduced Bit Rate) 1.62Gbit/s per lane
- This cable is USB powered and consumes approximately 200mW of power for video streaming in WUXGA
- Supports Analog RGB Current source outputs
- Supports 3.3V VSYNC and HSYNC outputs
- Pixel Clock up to 240Mhz
- Triple 8 Bit Digital to Analog Converter (DAC)
- Supports 6, 8 Bits per color
- Supports RGB formats
Характеристики
- Unit Calculated Weight
- 0.32 kg
- Unit Calculated Volume
- 0.001339 cubm
- Units per Shipping Box
- 1
- Units per Pallet
- 0
- Summary
- CLUB3D USB Type C to VGA Active Cable M/M 5m/16.40ft. Cable length: 5 m, Connector 1: USB Type-C, Connector 2: VGA (D-Sub). Certification: ROHS, FCC, and CE EM. Plastic packaging weight: 5 g, Paper/cardboard packaging weight: 62 g. Weight: 245 g, Width: 350 mm, Depth: 5000 mm. Package width: 145 mm, Package depth: 145 mm, Package height: 60 mm
- Vendor Homepage
- www.club-3d.com/en/detail/2469/usb_type_c_to_vga_active_cable_m-m_5m-16.40ft/
- Category Code
- VCD
- Unit Box Height
- 0.175
- Unit Box Length
- 0.17
- Unit Box Width
- 0.045
- Model name
- CAC-1512
Features
- Cable length
- 5 m
- Colour depth
- 8 bit
- Connector 1
- USB Type-C
- Connector 1 gender
- Male
- Connector 2
- VGA (D-Sub)
- Connector 2 gender
- Male
- Converter type
- Active video converter
- Country of origin
- China
- Data transfer rate
- 2.7 Gbit/s
- Plug and Play
- Yes
- Product colour
- Black
Certificates
- Certification
- ROHS, FCC, and CE EM
Packaging composition
- Paper/cardboard packaging weight
- 62 g
- Plastic packaging weight
- 5 g
- Total paper/cardboard packaging weight
- 0 g
- Total plastic packaging weight
- 0 g
Weight & dimensions
- Depth
- 5000 mm
- Height
- 140 mm
- Weight
- 245 g
- Width
- 350 mm
Packaging data
- Package depth
- 145 mm
- Package height
- 60 mm
- Package type
- Box
- Package weight
- 309 g
- Package width
- 145 mm
Packaging content
- Manual
- Yes
- Quantity per pack
- 1 pc(s)
Logistics data
- Harmonized System (HS) code
- 8544 4290
Идентификаторы
- Бренд
- CLUB3D
- Категории
- Кабели и адаптеры
- Модель
- CAC-1512
- EAN
- 8719214471231
