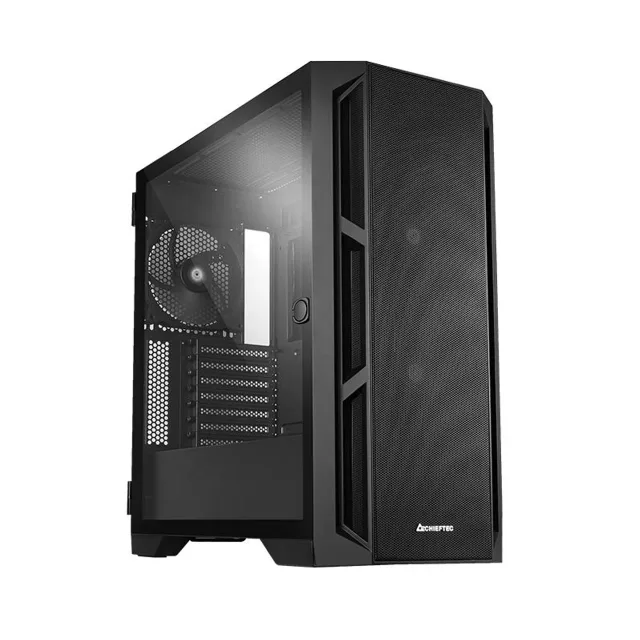

The CHIEFTEC APEX AIR presents an E-ATX chassis with a large mesh front panel and three pre-installed 140mm PWM fans that, in combination, are designed to enable high-airflow systems while maintaining low noise.
APEX AIR‘s 3x 140mm PWM fans are configured with 2 pre-installed in the front and 1 pre-installed in the rear, which creates a smooth airflow path from the front intake to rear exhaust.
The case is generous with space, offering support for GPU‘s up to 400 mm in length, CPU coolers up to 175mm in height and radiator support up to 360mm on the top, as well as up to 420mm in the front.
CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.
- High-airflow optimized front mesh panel
- Side panel made of TEMPERED GLASS
- 3x 140mm PWM fans pre-installed
Характеристики
- Unit Calculated Weight
- 8.6 kg
- Unit Calculated Volume
- 0.08759 cubm
- Units per Shipping Box
- 1
- Model
- GA-01B-M-OP
- Summary
- Chieftec APEX AIR GA-01B-M-OP ATX. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm
- Vendor Homepage
- https://www.chieftec.eu/products-detail/570/GA-01B-M-OP
- Category Code
- CAS
- Unit Box Height
- 0.535
- Unit Box Length
- 0.555
- Unit Box Width
- 0.295
- Model name
- APEX AIR
Design
- Anti-dust filter
- Yes
- Cable management
- Yes
- Form factor
- Midi Tower
- Full-Height expansion slots
- 7
- Illumination
- No
- Material
- SPCC
- Maximum CPU cooler height
- 175 mm
- Maximum graphics card length
- 400 mm
- Maximum PSU length
- 220 mm
- Number of 2.5" bays
- 2
- Number of 3.5" bays
- 2
- Number of expansion slots
- 7
- Number of internal 3.5" bays
- 2
- Number of storage drives supported
- 5
- On/off button
- Yes
- Product colour
- Black
- Reset button
- Yes
- RGB control button
- Yes
- Side window
- Yes
- Suitable for
- Gaming
- Supported motherboard form factors
- ATX/EATX/micro ATX/Mini-ITX
- Tempered glass panel(s)
- Yes
- Type
- PC
Power supply
- Power supply included
- No
- Power supply location
- Bottom
- Power supply shroud
- Yes
Ports & interfaces
- Audio input
- Yes
- Audio output
- Yes
- USB 3.0
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB Type-C ports quantity
- 1
Cooling
- Bottom fans diameters supported
- 120 mm
- Front fans diameters supported
- 120/140 mm
- Front fans installed
- 2x 140 mm
- Front radiator sizes supported
- 240/280/360/420 mm
- Liquid cooling capability
- Yes
- Number of bottom fans supported (max)
- 2
- Number of front fans supported (max)
- 3
- Number of rear fans supported (max)
- 1
- Number of side fans supported (max)
- 2
- Number of top fans supported (max)
- 3
- Pulse-width modulation (PWM) support
- Yes
- Rear fans diameters supported
- 120/140 mm
- Rear fans installed
- 1x 140 mm
- Side fans diameters supported
- 120 mm
- Side radiator sizes supported
- 240 mm
- Top fans installed
- 3x 120 mm, 2x 140 mm
- Top radiator sizes supported
- 240/280/360 mm
Storage
- Supported HDD sizes
- 2.5/3.5 "
Weight & dimensions
- Depth
- 465 mm
- Height
- 495 mm
- Material thickness
- 0.6 mm
- Weight
- 7300 g
- Width
- 230 mm
Packaging data
- Package weight
- 8750 g
Идентификаторы
- Бренд
- CHIEFTEC
- Категории
- Комплектующие
- Модель
- GA-01B-M-OP
- EAN
- 0753263078537
