Case|CHIEFTEC|VISIO GM-30B-TG-OP|MidiTower|Case product features Transparent panel|Not included|ATX|MicroATX|MiniITX|Colour Black|GM-30B-TG-OP
О товаре

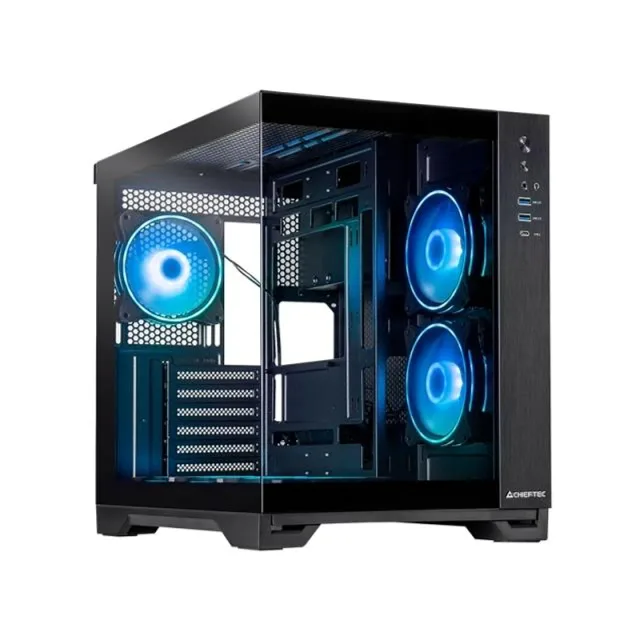

The CHIEFTEC Visio features tempered glass panels on both the left and front sides, incorporating a dual-chamber layout to accommodate the latest back-connect motherboards (ASUS BTF and MSI Project Zero compatible). This design streamlines cable management for a clean interior view and unobstructed airflow.
The refined internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated conguration.
The case comes with six pre-installed 120mm A-RGB fans and a control hub for motherboard synchronization of A-RGB and PWM fan speed control. 5 of these fans are designed with reverse airflow fan blades to enable the optimum intake on the sides and the bottom without sacricing on the aesthetics. Designed with gamers in mind, the CHIEFTEC Visio provides the opportunity to create a distinctive build.
- Tempered glass front & side panels
- Dual-chamber design
- Compatibility with back-connect motherboards
- 6 x 120mm A-RGB fans pre-installed
- A-RGB control hub with M/B sync and PWM fan speed control
Характеристики
- Unit Calculated Weight
- 8.67 kg
- Unit Calculated Volume
- 0.09146 cubm
- Units per Shipping Box
- 1
- Model
- GM-30B-TG-OP
- Summary
- Chieftec Visio GM-30B-TG-OP schwarz Tempered Glass x 2. Form factor: Cube, Type: PC, Product colour: Black. Side fans installed: 2x 120 mm, Rear fans installed: 1x 120 mm, Bottom fans installed: 3x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 295 mm, Depth: 430 mm, Height: 390 mm
- Vendor Homepage
- https://www.chieftec.eu/products-detail/589/GM-30B-TG-OP
- Category Code
- CAS
- Unit Box Height
- 0.515
- Unit Box Length
- 0.48
- Unit Box Width
- 0.37
- Case product features
- Transparent panel
- Model name
- VISIO GM-30B-TG-OP
Design
- Anti-dust filter
- Yes
- Form factor
- Cube
- Full-Height expansion slots
- 6
- Illumination
- Yes
- Illumination colour
- Multi
- Maximum CPU cooler height
- 175 mm
- Maximum graphics card length
- 410 mm
- Maximum PSU length
- 200 mm
- Number of 2.5" bays
- 2
- Number of 3.5" bays
- 2
- Number of expansion slots
- 6
- Number of internal 3.5" bays
- 2
- Number of storage drives supported
- 4
- Product colour
- Black
- Side window
- Yes
- Suitable for
- Gaming
- Supported motherboard form factors
- ATX/micro ATX
- Tempered glass panel(s)
- Yes
- Type
- PC
Power supply
- Power supply included
- No
Ports & interfaces
- Combo headphone/mic port
- Yes
- USB 3.0
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
Cooling
- Bottom fans installed
- 3x 120 mm
- Fan speed control
- Yes
- Liquid cooling capability
- Yes
- Rear fans installed
- 1x 120 mm
- Side fans installed
- 2x 120 mm
- Top radiator sizes supported
- 240/280/360 mm
Storage
- HDD/SSD combo cage
- Yes
- Supported HDD sizes
- 2.5/3.5 "
Weight & dimensions
- Depth
- 430 mm
- Height
- 390 mm
- Weight
- 7300 g
- Width
- 295 mm
Идентификаторы
- Бренд
- CHIEFTEC
- Категории
- Комплектующие
- Модель
- GM-30B-TG-OP
- EAN
- 753263078681
