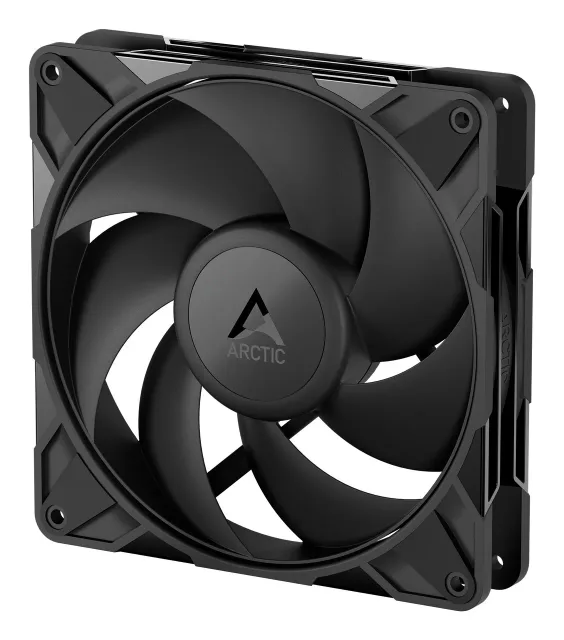

CASE FAN 140MM P14 PRO PST CO/ACFAN00316A ARCTIC

Характеристики

Unit Calculated Weight

0.298 kg

Unit Calculated Volume

0.0008341 cubm

Units per Shipping Box

48

Units per Pallet

0

Summary

ARCTIC P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 400 RPM, Rotational speed (max): 2500 RPM, Airflow: 186 m³/h, Maximum air pressure: 5.2 mmH2O, Bearing type: Dual ball bearing. Product colour: Black

Vendor Homepage

https://www.arctic.de/en/P14-Pro-PST-CO/ACFAN00316A

Category Code

COS

Unit Box Height

0.145

Unit Box Length

0.148

Unit Box Width

0.032

Model name

P14 Pro PST CO

Model

ACFAN00316A

Performance

Airflow

186 m³/h

Bearing type

Dual ball bearing

Fan diameter

140 mm

Maximum air pressure

5.2 mmH2O

Maximum airflow

110 cfm

Operating temperature (T-T)

0 - 40 °C

Pulse-width modulation (PWM) support

Yes

Quantity per pack

1 pc(s)

Rotational speed (max)

2500 RPM

Rotational speed (min)

400 RPM

Suitable location

Computer case

Type

Fan

Design

Fan connector

4-pin + 4-pin

Product colour

Black

Power

Rated current

0.35 A

Rated voltage

12 V

Starting voltage

5 V

Weight & dimensions

Cable length

0.48 m

Fan dimensions (W x D x H)

140 x 140 x 27 mm

Fan weight

242 g

Package depth

145 mm

Package height

32 mm

Package weight

294 g

Package width

145 mm

Packaging content

Number of screws

4

Screws included

Yes

Идентификаторы

Бренд

ARCTIC

Категории

Комплектующие

Модель

ACFAN00316A

EAN

4895265000409
