BE QUIET

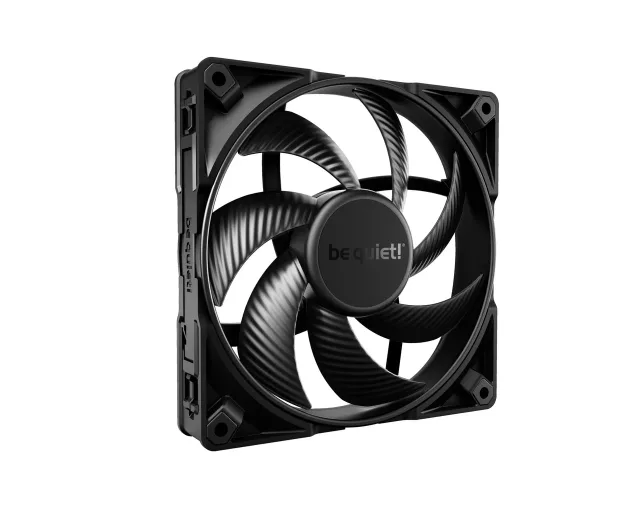

CASE FAN 140MM SILENT WINGS/PRO 4 BL099 BE QUIET
О товаре
Legendary silence, epic performance and features
For the highest performance, optimized fan blades, especially for heat sinks designed radiator corners and a speed switch with 3 selectable speed options, Silent Wings Pro 4 140mm PWM is the most progressive, performant, and versatile fan by be quiet!
- Optimized fan blades for the highest performance on radiators and heat sinks
- Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 2400 rpm)
- Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure
- Virtually inaudible operation at regular speed
- 6-pole fan motor for less vibration and power consumption
- Fluid-dynamic bearing enables very smooth operation
- Individual and easy mounting systems for use as a case fan or with a radiator
- Super-long life-span of up to 300,000h
- Valuable sleeved PWM cable and easy to install PWM connector
- Elegant look with high-grade fan sticker in an all-black design
Характеристики
- Unit Calculated Weight
- 0.486 kg
- Unit Calculated Volume
- 0.001657 cubm
- Units per Shipping Box
- 32
- Units per Pallet
- 0
- Summary
- be quiet! SILENT WINGS PRO 4 | 140mm PWM. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 2400 RPM, Airflow: 165.5 m³/h, Maximum air pressure: 3.64 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 7 - 13.2 V. Width: 140 mm, Depth: 140 mm, Height: 25 mm. Product colour: Black
- Vendor Homepage
- https://www.bequiet.com/en/download/casefans/3698?utm_source=newsletter
- Category Code
- COS
- Unit Box Height
- 0.03
- Unit Box Length
- 0.21
- Unit Box Width
- 0.16
- Model name
- Silent Wings Pro 4
- Model
- BL099
Performance
- Airflow
- 165.5 m³/h
- Bearing type
- Fluid Dynamic Bearing (FDB)
- Fan diameter
- 140 mm
- Maximum air pressure
- 3.64 mmH2O
- Maximum airflow
- 97.41 cfm
- Mean time between failures (MTBF)
- 300000 h
- Noise level (high speed)
- 36.8 dB
- Pulse-width modulation (PWM) support
- Yes
- Quantity per pack
- 1 pc(s)
- Rotational speed (max)
- 2400 RPM
- Suitable location
- Computer case
- Type
- Fan
Design
- Certification
- CE / ROHS / RU / UKCA / TÜV / WEEE
- Fan connector
- 4-pin
- Product colour
- Black
Power
- Maximum current
- 0.5 A
- Power consumption (typical)
- 6 W
- Rated current
- 0.5 A
- Rated voltage
- 12 V
- Voltage
- 7 - 13.2 V
Weight & dimensions
- Cable length
- 0.5 m
- Depth
- 140 mm
- Fan dimensions (W x D x H)
- 140 x 140 x 25 mm
- Height
- 25 mm
- Package depth
- 206.5 mm
- Package height
- 31 mm
- Package weight
- 448 g
- Package width
- 156 mm
- Weight
- 258 g
- Width
- 140 mm
Packaging content
- Number of clips
- 4
- Number of screws
- 4
- Screws included
- Yes
Other features
- Country of origin
- Germany
Logistics data
- Harmonized System (HS) code
- 84733080
- Products per shipping (inner) case
- 32 pc(s)
- Shipping (inner) case gross weight
- 15540 g
- Shipping (inner) case height
- 388 mm
- Shipping (inner) case length
- 463 mm
- Shipping (inner) case width
- 317 mm
Идентификаторы
- Бренд
- BE QUIET
- Категории
- Комплектующие
- Модель
- BL099
- EAN
- 4260052188910
