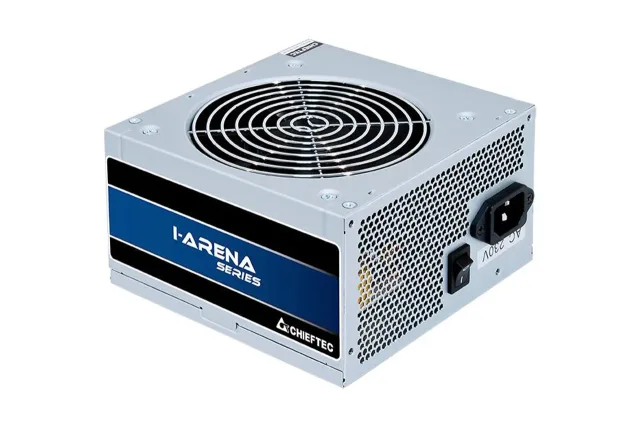

CASE PSU ATX 500W/GPB-500S CHIEFTEC
О товаре
High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Характеристики
- Unit Calculated Weight
- 1.36 kg
- Unit Calculated Volume
- 0.004455 cubm
- Units per Shipping Box
- 10
- Units per Pallet
- 0
- Summary
- Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
- Vendor Homepage
- https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html
- Category Code
- PSU
- Unit Box Height
- 0.155
- Unit Box Length
- 0.2
- Unit Box Width
- 0.09
Power
- AC input frequency
- 47 - 63 Hz
- AC input voltage
- 200 - 240 V
- Combined power (+12V)
- 456 W
- Combined power (+3.3V)
- 110 W
- Combined power (+5V)
- 110 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W
- Efficiency
- 85 %
- Input current
- 4 A
- Max output current (+12V1)
- 38 A
- Max output current (+3.3V)
- 18 A
- Max output current (+5V)
- 17 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.3 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over voltage/Overload/Short circuit/Under voltage
- Total power
- 500 W
Ports & interfaces
- Cabling type
- Non-Modular
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 5
- PCI Express power connectors (6+2 pin)
- 1
- Peripheral (Molex) power connectors (4-pin)
- 3
Performance
- ATX version
- 2.3
- Power supply unit (PSU) form factor
- PS/2
- Purpose
- PC
Design
- Cooling type
- Active
- Fan diameter
- 120 mm
- Fan location
- Top
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
- Product colour
- Silver
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Depth
- 150 mm
- Height
- 87 mm
- Width
- 140 mm
Packaging data
- Manual
- Yes
- Package type
- Box
Logistics data
- Harmonized System (HS) code
- 84733020
Other features
- Warranty card
- Yes
Идентификаторы
- Бренд
- CHIEFTEC
- Модель
- GPB-500S
- EAN
- 4710713233645
