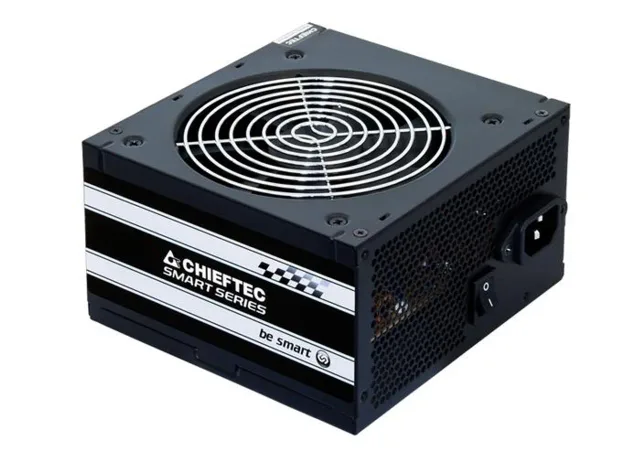

CASE PSU ATX 500W/GPS-500A8 CHIEFTEC

О товаре

The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.

Характеристики

Unit Calculated Weight: 1.67 kg
Unit Calculated Volume: 0.005105 cubm
Units per Shipping Box: 10
Units per Pallet: 0
Summary: Chieftec Smart GPS-500A8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
Vendor Homepage: https://www.chieftec.eu/products-detail/178/SMART_SERIES/239/GPS-500A8
Category Code: PSU
Unit Box Height: 0.095
Unit Box Length: 0.235
Unit Box Width: 0.17

Power

AC input frequency: 47 - 63 Hz
AC input voltage: 230 V
Combined power (+12V): 408 W
Combined power (+3.3V): 130 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Efficiency: 80 %
Max output current (+12V): 12.5 A
Max output current (+12V1): 24 A
Max output current (+12V2): 21 A
Max output current (+3.3V): 22 A
Max output current (+5V): 19 A
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.3 A
Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
Total power: 500 W

Ports & interfaces

Cabling type: Non-Modular
Floppy drive power connector: 1
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 3
PCI Express power connectors (6+2 pin): 1
Peripheral (Molex) power connectors (4-pin): 2

Performance

80 PLUS certification: No
ATX version: 2.3
Power supply unit (PSU) form factor: ATX
Purpose: PC

Design

Cooling type: Active
Fan diameter: 120 mm
Product colour: Black

Weight & dimensions

Depth: 140 mm
Height: 87 mm
Width: 150 mm

Идентификаторы

Бренд: CHIEFTEC
Модель: GPS-500A8
EAN: 4710713239531
