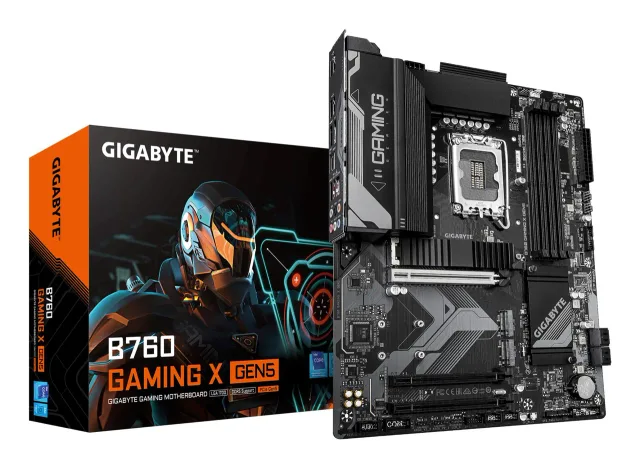

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|B760GAMINGXGEN5

О товаре

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

PCIe Gen5 Performance: Perfect Sync to Win
Supports Intel Core 14th/ 13th/12 processors
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution
Dual Channel DDR5: 4*DIMMs with XMP Memory Module Support
Fast Networks: 2.5GbE LAN
Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI
Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors

Характеристики

Unit Calculated Weight: 1.77 kg
Unit Calculated Volume: 0.009969 cubm
Units per Shipping Box: 8
Units per Pallet: 0
Summary: GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Vendor Homepage: https://www.gigabyte.com/
Category Code: MBI
Unit Box Height: 0.08
Unit Box Length: 0.335
Unit Box Width: 0.27
Model: B760 GAMING X GEN5

Features

Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Cooling type: Passive
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: ATX
PC health monitoring: Fan/Temperature/Voltage/Water cooling
Power source type: ATX
Product colour: Dark brown
Windows operating systems supported: Windows 10 x64/Windows 11 x64

Processor

Compatible processor series: Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Memory

ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 5600 MHz
Supported memory clock speeds: 4400/4800/5200/5600 MHz
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes

Storage controllers

Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III
Supported storage drive types: HDD & SSD

Graphics

DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported

Internal I/O

12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
Number of SATA III connectors: 4
Number of water pump connectors: 2
RGB LED pin header: Yes
S/PDIF out connector: Yes
Serial port headers: 1
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Rear panel I/O ports

DisplayPort version: 1.2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
USB 2.0 ports quantity: 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Network

Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8125
Wi-Fi: No

Expansion slots

1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1

BIOS

ACPI version: 5.0
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Battery

Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Packaging data

Package depth: 270 mm
Package height: 80 mm
Package weight: 1800 g
Package width: 335 mm

Weight & dimensions

Depth: 244 mm
Height: 35 mm
Width: 305 mm

Packaging content

Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
Screws included: Yes

Technical details

Warranty period: 3 year(s)

Other features

Weight: 1560 g

Идентификаторы

Бренд: GIGABYTE
Категории: Комплектующие
Модель: B760 GAMING X GEN5
EAN: 4719331872120
