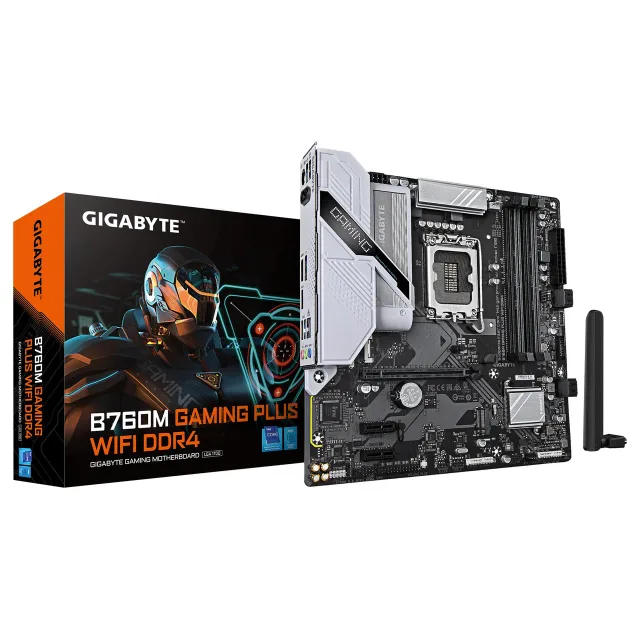

Mainboard|GIGABYTE|B760M GAMING PLUS WIFI DDR4 (REV. 1.1)|Intel B760|LGA 1700|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B760MGPWIFIDDR41.1

О товаре

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
Extended Connectivity：Front USB-C 5Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Характеристики

Unit Calculated Weight: 1.25 kg
Unit Calculated Volume: 0.00614 cubm
Units per Shipping Box: 10
Units per Pallet: 0
Summary: GIGABYTE B760M GAMING PLUS WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Vendor Homepage: https://www.gigabyte.com/
Category Code: MBI
Unit Box Height: 0.07
Unit Box Length: 0.275
Unit Box Width: 0.27
Model: B760M GAMING PLUS WIFI DDR4 (REV. 1.1)

Features

Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
PC health monitoring: Fan/Temperature/Voltage/Water cooling
Power source type: ATX
Product colour: Grey
Windows operating systems supported: Windows 10 x64/Windows 11 x64

Processor

Compatible processor series: Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
Maximum internal memory supported by processor: 128 GB
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Memory

ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128 GB
Maximum internal memory per slot: 32 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 5333 MHz
Supported memory clock speeds: 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes

Storage controllers

Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD

Graphics

DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported

Internal I/O

ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 3
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 2
Number of SATA III connectors: 4
Parallel connector: Yes
RGB LED pin header: Yes
S/PDIF out connector: Yes
Serial port headers: 1
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Rear panel I/O ports

DisplayPort version: 1.2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
WiFi-AP antenna jack: 2

Network

Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
WLAN controller model: Realtek RTL8851BE

Expansion slots

1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1

BIOS

ACPI version: 5.0
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7

Battery

Battery capacity: 220 mAh
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Packaging data

Package depth: 268 mm
Package height: 68 mm
Package weight: 1200 g
Package width: 270 mm

Weight & dimensions

Depth: 244 mm
Height: 35 mm
Width: 244 mm

Packaging content

Antenna included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included: Yes

Technical details

Warranty period: 3 year(s)

Other features

Weight: 1100 g

Идентификаторы

Бренд: GIGABYTE
Категории: Комплектующие
Модель: B760M GAMING PLUS WIFI DDR4 (REV. 1.1)
EAN: 4719331862855
