TOSHIBA

HDD|TOSHIBA|Serial ATA III|3.5 "|Buffer 1000 MB|7200 RPM| 24 TB|Toshiba MG Series 24TB (MG11ACA24TE)|MG11|MG11ACA24TE

О товаре

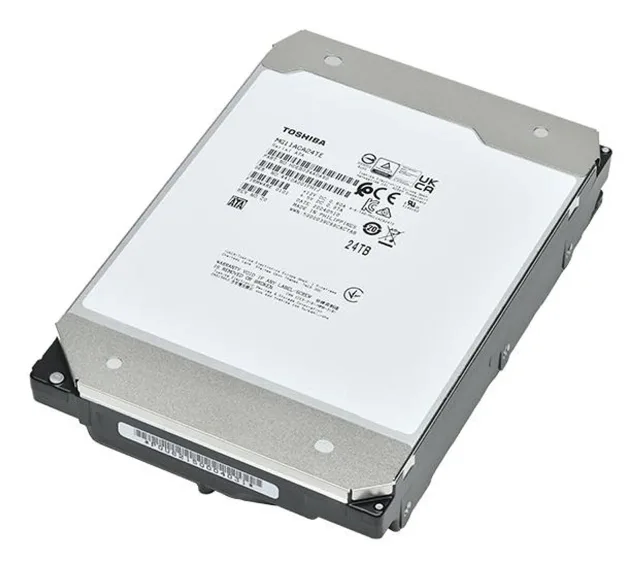

HDD-накопичувач Toshiba MG Series 24TB (MG11ACA24TE)

Built on 50 years of Toshiba’s HDD innovation, the MG11 Series delivers new levels of capacity, performance, and quality. Packing up to 24TB into a standard 3.5-inch conventional magnetic recording (CMR) HDD, the MG11 Series enables cloud-scale infrastructure to build higher storage densities at lower TCO. The MG11 Series features up to a 10-disk helium-sealed 3.5-inch design, which leverages Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR™) technology to achieve 2.4TB per disk. Built to meet growing data storage demands, the MG11 Series has a high workload rating of 550TB with 7200 rpm, and is available in 6Gbps SATA and 12Gbps SAS interfaces. Engineered for 24/7 quality and enterprise reliability, the MG11 Series has an MTTF of 2.5 million hours. SED and SIE options are available to secure data and deliver peace of mind. In addition to 24TB, the MG11 is available in 22TB, 20TB, 18TB, 16TB, and 14TB in both SAS and SATA interfaces with SIE and SED options.

  • Up to 24 TB capacity
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Toshiba 2nd generation Flux Control Microwave-assisted Magnetic Recording (FC-MAMR™) Technology
  • Industry-leading 10-disk helium-sealed design for superior storage density
  • Industry Standard 3.5-inch 26.1 mm height Form Factor
  • 7200 rpm Performance
  • Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating
  • Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model

Характеристики

Unit Calculated Weight
0.7 kg
Product Net Weight
0.73 kg
Unit Calculated Volume
0.001821 cubm
Units per Shipping Box
20
Units per Pallet
0
Summary
Toshiba MG11ACA24TE. HDD capacity: 24 TB, HDD speed: 7200 RPM, Storage drive buffer size: 1000 MB, HDD size: 3.5", Interface: Serial ATA III
Vendor Homepage
https://toshiba.semicon-storage.com/eu/storage/product/data-center-enterprise/cloud-scale-capacity/articles/mg11-series.html
Category Code
HES
Unit Box Height
0.03
Unit Box Length
0.175
Unit Box Width
0.13
Model name
Toshiba MG Series 24TB (MG11ACA24TE)
HDD Family name
MG11
Model
MG11ACA24TE

Features

Component for
Disk array
HDD capacity
24000 GB
HDD size
3.5 "
HDD speed
7200 RPM
Interface
Serial ATA III
Mean time between failures (MTBF)
2500000 h
Storage drive buffer size
1000 MB
Type
HDD

Power

Power consumption (idle)
4.35 W
Power consumption (write)
8.11 W

Weight & dimensions

Depth
147 mm
Height
26.1 mm
Weight
730 g
Width
101.82 mm

Packaging data

Quantity per pack
1 pc(s)

Идентификаторы

Бренд
TOSHIBA
Категории
Накопители
Модель
MG11ACA24TE
