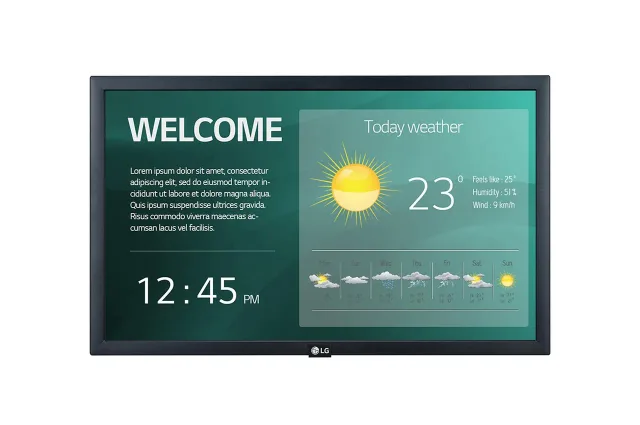

DISPLAY LCD 22"/22SM3G-B LG
О товаре
22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.
A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
- Brightness(Typ.) : 250 cd/m²
- Bezel : 16.3mm
- Depth : 53.8mm
- Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
- USB Plug & Play, Built-in Wi-Fi
Характеристики
- Unit Calculated Weight
- 4.65 kg
- Unit Calculated Volume
- 0.02447 cubm
- Summary
- LG 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7. Product design: Digital signage flat panel. Display diagonal: 54.6 cm (21.5"), Display technology: IPS, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 16/7. Product colour: Black
- Vendor Homepage
- https://www.lg.com/ae/business/information-display/digital-signage/lg-22SM3G-B
- Category Code
- LCD
- Unit Box Height
- 0.37
- Unit Box Length
- 0.575
- Unit Box Width
- 0.115
- Model name
- 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7
- Model
- 22SM3G-B
Display
- Contrast ratio (dynamic)
- 400000:1
- Contrast ratio (typical)
- 1000:1
- Display brightness
- 250 cd/m²
- Display diagonal
- 21.5 "
- Display diagonal (metric)
- 55.88 cm
- Display resolution
- 1920 x 1080 pixels
- Display technology
- IPS
- HD type
- Full HD
- Native aspect ratio
- 16:9
- Touchscreen
- No
- Viewing angle, horizontal
- 178 °
- Viewing angle, vertical
- 178 °
Ports & interfaces
- Audio (L/R) in
- 1
- DVI port
- No
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 2
- RS-232 interface
- Yes
- RS-232C
- Yes
- USB port
- Yes
- USB ports quantity
- 1
- USB version
- 2.0
Audio
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- RMS rated power
- 2 W
Design
- Orientation
- Horizontal
- Panel mounting interface
- 100 x 100 mm
- Product colour
- Black
- Product design
- Digital signage flat panel
- VESA mounting
- Yes
Performance
- Operating hours (hours/days)
- 16/7
- Purpose
- Universal
Power
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Heat dissipation
- 7.89 BTU/h
- Power consumption (off)
- 0.5 W
- Power consumption (sleep)
- 1 W
- Power consumption (standby)
- 30 W
- Power consumption (typical)
- 33 W
Computer system
- Built-in processor
- Yes
- Computer system
- No
- Internal memory
- 4 GB
- Processor cores
- 4
Weight & dimensions
- Depth
- 53.8 mm
- Height
- 302.1 mm
- Weight
- 3340 g
- Width
- 510.3 mm
Packaging data
- Package depth
- 103 mm
- Package height
- 357 mm
- Package weight
- 3500 g
- Package width
- 565 mm
Packaging content
- Batteries included
- Yes
- Cables included
- AC
- Mounting kit
- Yes
- Remote control included
- Yes
Operational conditions
- Operating relative humidity (H-H)
- 10 - 80 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 85 %
- Storage temperature (T-T)
- -20 - 60 °C
Certificates
- Certification
- CB, NRTL, EMC, FCC Class "A", CE, ErP
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Logistics data
- Harmonized System (HS) code
- 85285210
Идентификаторы
- Бренд
- LG
- Категории
- Мониторы
- Модель
- 22SM3G-B
- EAN
- 8806098661039
