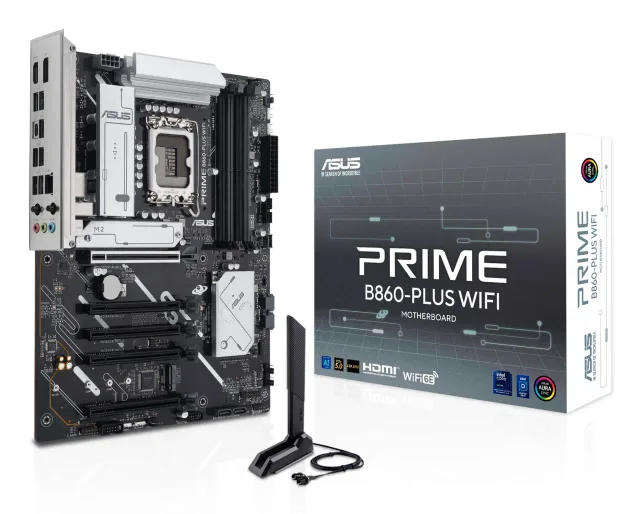

Mainboard|ASUS|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|PRIMEB860-PLUSWIFI

О товаре

Характеристики

Unit Calculated Weight

1.72 kg

Unit Calculated Volume

0.008022 cubm

Units per Shipping Box

5

Summary

ASUS PRIME B860-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Vendor Homepage

https://www.asus.com/motherboards-components/motherboards/prime/prime-b860-plus-wifi/

Category Code

MBI

Unit Box Height

0.275

Unit Box Length

0.357

Unit Box Width

0.07

Model

PRIME B860-PLUS WIFI

Features

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

Intel B860

Motherboard chipset family

Intel

Motherboard form factor

ATX

Product colour

Aluminium/Black

Windows operating systems supported

Windows 10 x64/Windows 11

Processor

Compatible processor series

Intel Core Ultra (Series 2)

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Memory

ECC сompatibility

Non-ECC

Maximum internal memory

256 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Unbuffered memory

Yes

Storage controllers

Number of HDDs supported

4

Number of storage drives supported

6

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

Supported storage drive types

HDD & SSD

Graphics

On-board graphics card

No

Parallel processing technology support

Not supported

Internal I/O

12V power connector

Yes

ATX Power connector (24-pin)

Yes

Chassis intrusion connector

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

4

Number of COM connectors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

S/PDIF out connector

Yes

Thunderbolt headers

1

TPM connector

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Rear panel I/O ports

DisplayPorts quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

WiFi-AP antenna jack

1

Network

Bluetooth

Yes

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Expansion slots

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

4

PCI Express x16 (Gen 5.x) slots

1

BIOS

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Packaging data

Package depth

372 mm

Package height

302 mm

Package weight

1664 g

Package width

377 mm

Weight & dimensions

Depth

244 mm

Width

305 mm

Packaging content

Antenna included

Yes

Cables included

SATA

Screws included

Yes

Идентификаторы

Бренд

ASUS

Категории

Комплектующие

Модель

PRIME B860-PLUS WIFI

EAN

4711387814697
