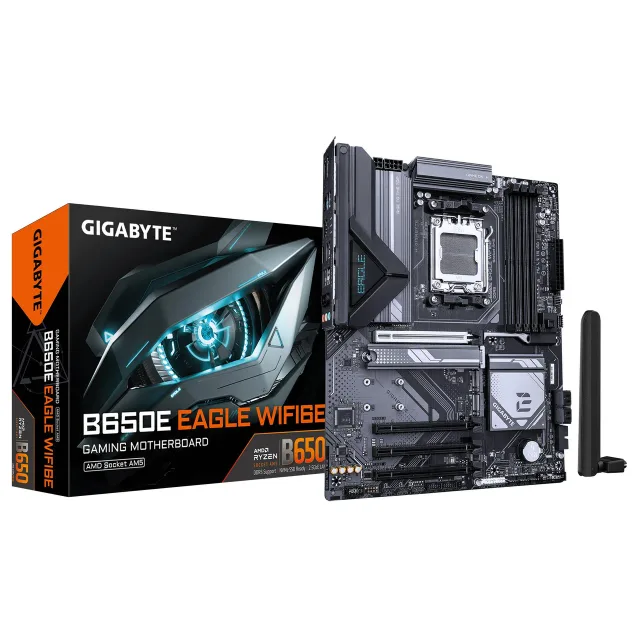

Mainboard|GIGABYTE|SAM5|ATX|Memory DDR5|Memory slots 4|B650EEAGLEWF6E1.0
О товаре
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
- Unparalleled Performance: 8+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- Fast Networks: Wi-Fi 6E 802.11ax & GbE LAN
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- Extended Connectivity: DP, HDMI, Rear USB 10Gb/s
Характеристики
- Unit Calculated Weight
- 1.66 kg
- Unit Calculated Volume
- 0.007344 cubm
- Units per Shipping Box
- 1
- Units per Pallet
- 0
- Summary
- GIGABYTE B650E EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Vendor Homepage
- https://www.gigabyte.com/
- Category Code
- MBA
- Unit Box Height
- 0.08
- Unit Box Length
- 0.27
- Unit Box Width
- 0.34
- Model
- B650E EAGLE WIFI6E
Features
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Component for
- PC
- Cooling type
- Passive
- Motherboard chipset
- AMD B650
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Power source type
- ATX
- Product colour
- Dark brown
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
Processor
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Supported processor sockets
- Socket AM5
Memory
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 256 GB
- Maximum internal memory per slot
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8200 MHz
- Supported memory clock speeds
- 4800/5200/5600/6000/6200/6400/6600/6800/7200/7600/7800/7900/7950/8000/8200 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
Storage controllers
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID levels
- 0/1/10/5
- RAID support
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
Graphics
- DirectX version
- 12.0
- HDCP
- Yes
- HDCP version
- 2.3
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
Internal I/O
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 4
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 4
- Number of SATA III connectors
- 4
- Number of water pump connectors
- 2
- Peripheral (Molex) power connectors (4-pin)
- 1
- RGB LED pin header
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
Rear panel I/O ports
- DisplayPort version
- 1.4
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- WiFi-AP antenna jack
- 2
Network
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8125
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- WLAN controller model
- MediaTek MT7902
Expansion slots
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 22110
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 3
- PCI Express x16 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
BIOS
- ACPI version
- 5.0
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Battery
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
Logistics data
- Country of origin
- China
- Products per shipping (inner) case
- 1 pc(s)
Packaging data
- Package depth
- 270 mm
- Package height
- 80 mm
- Package weight
- 1890 g
- Package width
- 335 mm
Weight & dimensions
- Depth
- 244 mm
- Height
- 35 mm
- Width
- 305 mm
Packaging content
- Antenna included
- Yes
- Batteries included
- Yes
- Bundled software
- Norton® Internet Security (OEM version)
- Screws included
- Yes
Technical details
- Warranty period
- 3 year(s)
Other features
- Weight
- 1680 g
Идентификаторы
- Бренд
- GIGABYTE
- Категории
- Комплектующие
- Модель
- B650E EAGLE WF6E 1.0
- EAN
- 4719331877798
