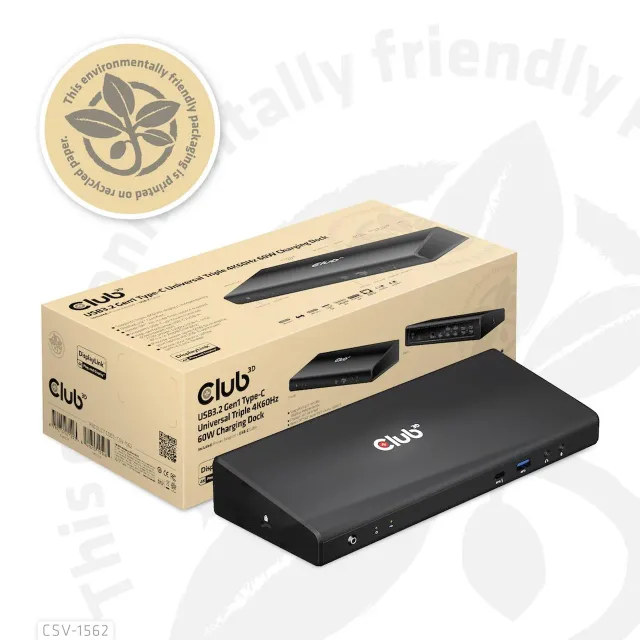

NB ACC DOCKING STATION/USB-C 60W CSV-1562 CLUB3D
О товаре
The CSV-1562 is a USB C 3.2 Gen1 Universal Triple 4K Charging Docking Station. The Universal Charging Dock is designed to cater for your most versatile connectivity demands. The USB 3.2 Gen 1 interface supports up to 5 Gbps bandwidth, which enables you to enjoy super speed data transmission between your favourite USB peripherals and allows for up to three external 4K displays simultaneously in addition it offers a wired network connection as well as audio and micro¬pone output. By adopting Power Delivery charging technology, the upstream charging function through USB-C 3.2 Gen1 interface, you can charge a connected cell phone / tablet / laptop. Furthermore, the added Kensington Lock option allows you to secure your dock as well. All it needs is a free USB 3.2 Gen 1 port on your Laptop or Ultrabook to connect to the Universal Triple 4K Charging Docking Station via a single USB cable.
- Downstream port
- USB3.2 Gen 1 Type-A ports (5V/0.9A) x4
- USB3.2 Gen 1 Type-A port (Fast Charging) x1
- USB3.2 Gen 1 Type-C port x1
- Support audio 2.1 channel
- Support Gigabit Ethernet
- Support DisplayPort (4096 x 2160@60Hz)
- Support 5K (connect to 2 DP displays simultaneously)
- Support HDMI (3840x2160@60Hz)
- Support PD Charging (for NB)
- 20/15/12/9/5V@3A, up to 60W
- Kensington Lock • Power On/Off Button on the front
Характеристики
- Unit Calculated Weight
- 1.15 kg
- Unit Calculated Volume
- 0.003982 cubm
- Units per Shipping Box
- 1
- Summary
- CLUB3D The CSV-1562 is an USB3.2 Gen1 Type-C Universal Triple 4K30Hz Charging Docking Station and is DisplayLink® Certified. The Universal Charging Dock. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Product colour: Black, LED indicators: Power, Country of origin: China. Windows operating systems supported: Windows 10, Windows 11. Width: 250 mm, Depth: 83 mm, Height: 43 mm. Package width: 298 mm, Package depth: 92 mm, Package height: 150 mm
- Vendor Homepage
- www.club-3d.com/en/detail/2472/usb3.2_gen1_type_c_universal_triple_4k_charging_dock/
- Category Code
- NBK
- Unit Box Height
- 0.09
- Unit Box Length
- 0.295
- Unit Box Width
- 0.15
- Model
- CSV-1562
Ports & interfaces
- Combo headphone/mic port
- No
- Connectivity technology
- Docking
- DC-in jack
- Yes
- DisplayPorts quantity
- 2
- HDMI ports quantity
- 3
- HDMI version
- 2.0
- Headphone connectivity
- 3.5 mm
- Headphone outputs
- 1
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Line-in
- No
- Line-out
- No
- Microphone in
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB connector type
- USB Type-A/USB Type-C
- USB Power Delivery (USB PD)
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Performance
- Certification
- FCC, CE and EMI
- Charging function
- Yes
- Compatibility
- Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer
- Country of origin
- China
- LED indicators
- Power
- Number of displays supported
- 3
- Product colour
- Black
Software
- Mac compatibility
- Yes
- Windows operating systems supported
- Windows 10/Windows 11
Weight & dimensions
- Depth
- 83 mm
- Height
- 43 mm
- Weight
- 399 g
- Width
- 250 mm
Packaging data
- Package depth
- 92 mm
- Package height
- 150 mm
- Package weight
- 282 g
- Package width
- 298 mm
Packaging content
- AC adapter included
- Yes
- Anti-slip pads
- No
- Cables included
- USB Type-C to USB Type-C
- Drivers included
- Yes
- Manual
- Yes
- Mounting brackets included
- No
- Travel case
- No
Packaging composition
- Paper/cardboard packaging weight
- 229 g
- Plastic packaging weight
- 5 g
- Total paper/cardboard packaging weight
- 0 g
- Total plastic packaging weight
- 0 g
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 8473 3020
Other features
- USB data transfer rates
- 5000 Mbit/s
Идентификаторы
- Бренд
- CLUB3D
- Категории
- Ноутбуки
- Модель
- CSV-1562
- EAN
- 8719214471293
