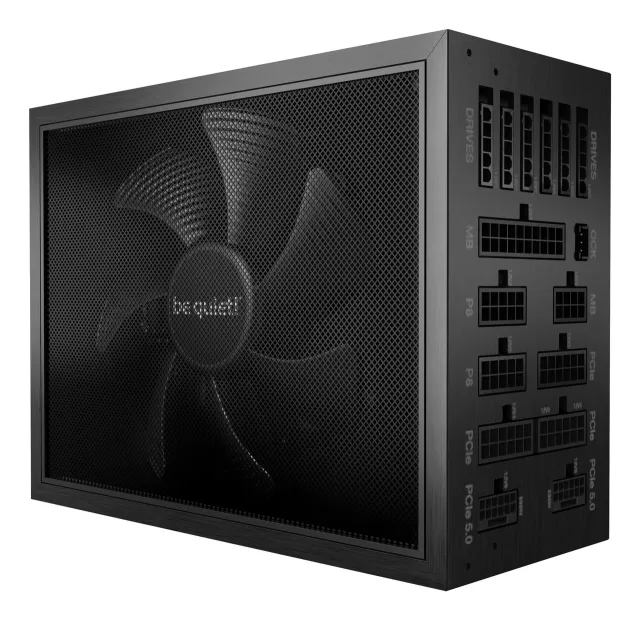

Power Supply|BE QUIET|1300 Watts|Peak Power 1400 Watts|Efficiency 80 PLUS TITANIUM|PFC Active|MTBF 100000 hours|BN331

О товаре

CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.

80 PLUS Titanium efficiency (up to 94.4%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
Full mesh PSU front with funnel-shaped air inlet
Overclocking key switches between six 12V rails and one massive 12V rail
Japanese 105°C capacitors ensure highest stability and reliability
2 PCIe 5.0 12VHPWR 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs
Aluminum case and modular individually sleeved cables for magnificent appearance

Характеристики

Unit Calculated Weight: 6.6 kg
Unit Calculated Volume: 0.0166 cubm
Units per Shipping Box: 1
Model name: Dark Power Pro 13 1300W
Summary: be quiet! Dark Power Pro 13 | 1300W. Total power: 1300 W, AC input voltage: 115 - 240 V, Peak power: 1400 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,600,750,800,900,950,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Vendor Homepage: https://www.bequiet.com/en/powersupply/4394
Category Code: PSU
Unit Box Height: 0.255
Unit Box Length: 0.42
Unit Box Width: 0.155

Power

AC input frequency: 50 - 60 Hz
AC input voltage: 115 - 240 V
Combined power (+12V): 1300 W
Combined power (+3.3V): 150 W
Combined power (+5V): 150 W
Combined power (+5Vsb): 17.5 W
Combined power (-12V): 6 W
Efficiency: 94.5 %
Hold time: 18 ms
Input current: 15 - 9 A
Max output current (+12V1): 35 A
Max output current (+12V2): 35 A
Max output current (+12V3): 40 A
Max output current (+12V4): 40 A
Max output current (+3.3V): 25 A
Max output current (+5V): 25 A
Max output current (+5Vsb): 3.5 A
Max output current (-12V): 0.5 A
Peak power: 1400 W
Power factor: 0.99
Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power: 1300 W

Ports & interfaces

ATX power connector (20+4 pin): Yes
Cabling type: Fully-Modular
CPU power cable length: 700 mm
EPS power connector (4+4 pin): Yes
EPS power connector (8-pin): Yes
Motherboard power cable length: 600 mm
Motherboard power connector: 20+4 pin ATX
Number of PATA power connectors: 5
Number of SATA power connectors: 16
PCI Express connector: Yes
PCI Express power cable length: 600 mm
PCI Express power connectors (6+2 pin): 6
Peripheral (Molex) power cable length: 1050/600/750/900 mm
SATA power cable length: 1050/500/600/750/800/900/950 mm

Performance

80 PLUS certification: 80 PLUS Titanium
ATX version: 3.0
Bearing technology: FDB
EPS version: 2.92
Mean time between failures (MTBF): 100000 h
Noise level: 23.2 dB
Power supply unit (PSU) form factor: ATX
Purpose: PC

Design

Cooling type: Active
Fan diameter: 135 mm
Number of fans: 1 fan(s)
Product colour: Black

Packaging content

Cable tie(s) included: Yes
Cables included: CPU,PCIe,Peripheral (Molex),SATA

Certificates

Compliance certificates: CCC/CE/Federal Communications Commission (FCC)/UKCA

Weight & dimensions

Depth: 200 mm
Height: 86 mm
Weight: 2410 g
Width: 150 mm

Packaging data

Package depth: 417 mm
Package height: 152 mm
Package weight: 6800 g
Package width: 253 mm

Technical details

Sustainability compliance: Yes

Logistics data

Products per shipping (inner) case: 2 pc(s)
Shipping (inner) case height: 283 mm
Shipping (inner) case length: 440 mm
Shipping (inner) case net weight: 14400 g
Shipping (inner) case width: 325 mm
Warranty period: 10 year(s)
