CHIEFTEC

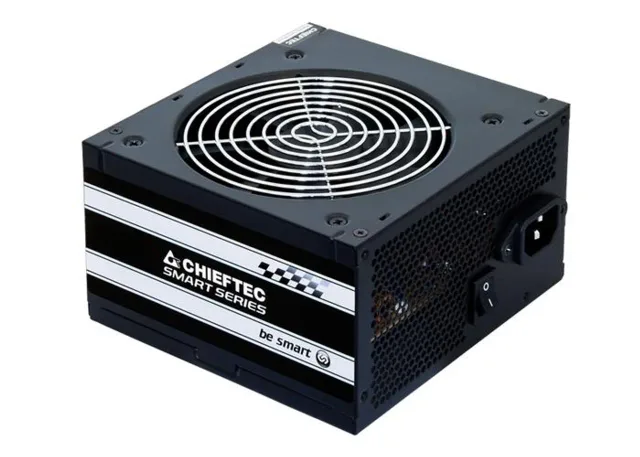

Power Supply|CHIEFTEC|GPS-700A8|700 Watts|Efficiency 80 PLUS|PFC Active|GPS-700A8
О товаре
The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
Характеристики
- Unit Calculated Weight
- 1.83 kg
- Unit Calculated Volume
- 0.004845 cubm
- Units per Shipping Box
- 10
- Units per Pallet
- 0
- Model name
- GPS-700A8
- Summary
- Chieftec Smart GPS-700A8. Total power: 700 W, AC input voltage: 230 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
- Vendor Homepage
- https://www.chieftec.eu/products-detail/178/SMART_SERIES/243/GPS-700A8
- Category Code
- PSU
- Unit Box Height
- 0.165
- Unit Box Length
- 0.225
- Unit Box Width
- 0.1
Power
- AC input voltage
- 230 V
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W
- Efficiency
- 80 %
- Max output current (+12V1)
- 54 A
- Max output current (+3.3V)
- 22 A
- Max output current (+5V)
- 22 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.3 A
- Power factor
- 0.9
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over voltage/Overload/Short circuit/Under voltage
- Total power
- 700 W
Ports & interfaces
- Cabling type
- Non-Modular
- EPS power connector (8-pin)
- Yes
- Floppy drive power connector
- 1
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power connectors (4-pin)
- 2
Performance
- 80 PLUS certification
- No
- ATX version
- 2.3
- Power supply unit (PSU) form factor
- PS/2
- Purpose
- PC
Design
- Cooling type
- Active
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- Product colour
- Black
Weight & dimensions
- Depth
- 140 mm
- Height
- 87 mm
- Weight
- 1620 g
- Width
- 150 mm
Идентификаторы
- Бренд
- CHIEFTEC
- Модель
- GPS-700A8
- EAN
- 4710713239579
