Power Supply|ENDORFY|SUPREMO FM6|100 - 240 V|1000 W|EY7A011
О товаре
Supremo FM6 1000 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.

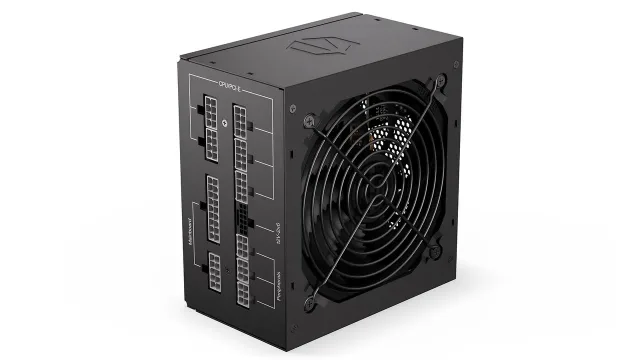

Supremo FM6 1000 W
Supremo FM6 1000 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.
The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.
Ready for latest ATX 3.1 standards
Supremo FM6 1000 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.
80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 1000 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life.
Silence first
Supremo FM6 1000 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.
Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 1000 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions.
Характеристики
- Unit Calculated Weight
- 2.8 kg
- Unit Calculated Volume
- 0.00594 cubm
- Units per Shipping Box
- 1
- Model name
- Supremo FM6 1000 W
- Summary
- ENDORFY Supremo FM6 1000 W. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 560,720,880 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
- Vendor Homepage
- https://endorfy.com/en/product/supremo-fm6-850-w/
- Category Code
- PSU
- Unit Box Height
- 0.22
- Unit Box Length
- 0.1
- Unit Box Width
- 0.27
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Combined power (+12V)
- 996 W
- Combined power (+3.3V)
- 100 W
- Combined power (+5V)
- 100 W
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Input current
- 13 - 6.5 A
- Max output current (+12V)
- 83 A
- Max output current (+3.3V)
- 20 A
- Max output current (+5V)
- 20 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
- Total power
- 1000 W
Ports & interfaces
- Cabling type
- Fully-Modular
- EPS power connector (4+4 pin)
- Yes
- EPS power connector (8-pin)
- Yes
- Motherboard power cable length
- 600 mm
- Motherboard power connector
- 24-pin ATX
- Number of SATA power cables
- 3
- Number of SATA power connectors
- 8
- PCI Express power cable length
- 560 mm
- PCI Express power connectors (12+4 pin)
- 1
- PCI Express power connectors (6+2 pin)
- 3
- Peripheral (Molex) power cable length
- 880 mm
- Peripheral (Molex) power connectors (4-pin)
- 1
- SATA power cable length
- 560/720/880 mm
Performance
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.1
- Bearing technology
- FDB
- Cybenetics certification
- Platinum
- Mean time between failures (MTBF)
- 100000 h
- Power supply unit (PSU) form factor
- ATX
- Purpose
- PC
Design
- Cooling type
- Active
- Fan diameter
- 120 mm
- Fan location
- Top
- Illumination
- No
- LED indicators
- No
- Number of fans
- 1 fan(s)
- On/off fan switch
- No
- On/off switch
- Yes
- Product colour
- Black
Packaging content
- Cables included
- AC
Certificates
- Compliance certificates
- CB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA
Weight & dimensions
- Depth
- 150 mm
- Height
- 87 mm
- Width
- 140 mm
Packaging data
- Manual
- Yes
- Package depth
- 270 mm
- Package height
- 95 mm
- Package type
- Box
- Package weight
- 2740 g
- Package width
- 220 mm
Technical details
- Doesn't contain
- Cadmium/Lead/Mercury
- Sustainability certificates
- ErP
Logistics data
- Warranty period
- 10 year(s)
Идентификаторы
- Бренд
- ENDORFY
- Модель
- EY7A011
- EAN
- 5903018667942
