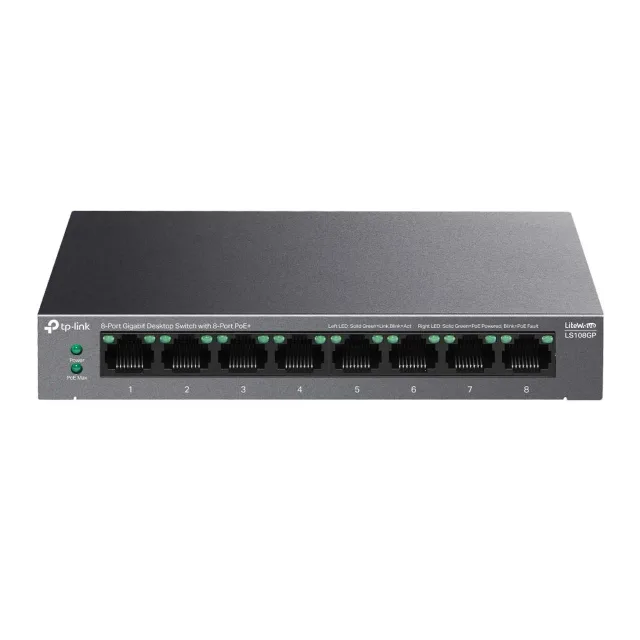

Switch|TP-LINK|LS108GP|PoE+ ports 8|LS108GP

О товаре

The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity
62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port
Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Plug and Play: Simply plug and play for instant connectivity with no configuration required
Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments

Характеристики

Unit Calculated Weight: 0.85 kg
Unit Calculated Volume: 0.003683 cubm
Units per Shipping Box: 12
Units per Pallet: 0
Summary: TP-Link LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Vendor Homepage: https://www.tp-link.com/uk/business-networking/soho-switch-poe/ls108gp/
Category Code: SWI
Unit Box Height: 0.121
Unit Box Length: 0.197
Unit Box Width: 0.131
Model name: LS108GP

Management features

Quality of Service (QoS) support: Yes
Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack

Network

10G support: No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Cable types supported: Cat3/Cat4/Cat5/Cat5e
Flow control support: Yes
Networking standards: IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Data transmission

Forwarding rate: 11.9 Mpps
Jumbo frames: 16000
MAC address table: 4000 entries
Switching capacity: 16 Gbit/s

Design

LED indicators: Yes
Product colour: Black

Power

AC input frequency: 50 Hz
AC input voltage: 220 V
DC input voltage: 53.5 V
Input current: 1.31 A
Power consumption (max): 71.61 W
Power source: DC/PoE
Power supply included: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 62 W

Operational conditions

Heat dissipation: 243.47 BTU/h
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90 %
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

Depth: 99 mm
Height: 25 mm
Width: 158 mm

Packaging content

User guide: Yes

Packaging data

Package type: Box

Certificates

Certification: CE, FCC, RoHS

Идентификаторы

Бренд: TP-LINK
Категории: Сетевое оборудование
Модель: LS108GP
EAN: 4895252505986
