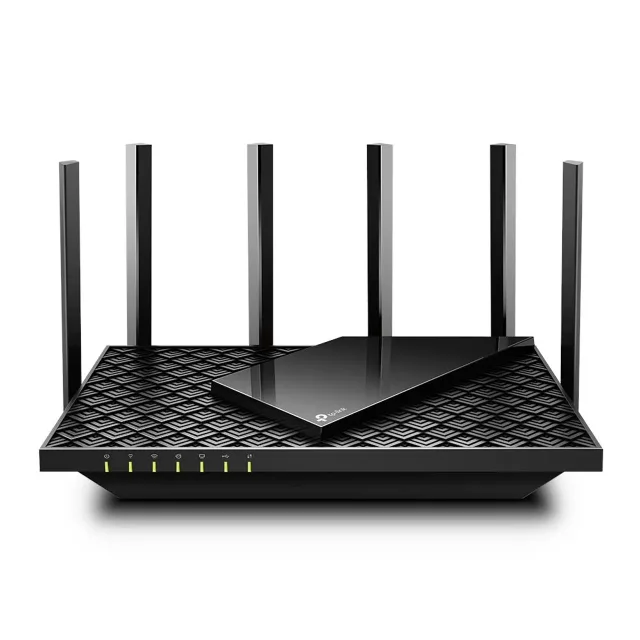

Wireless Router|TP-LINK|5400 Mbps|Wi-Fi 6|USB 3.0|1 WAN|4x10/100/1000M|Number of antennas 6|ARCHERAX73
О товаре
The latest generation of Wi-Fi technology brings faster speeds, less lag and higher capacity, enabling more simultaneous connections on your home network. Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-Power FEM, 6 x Antennas, Beamforming and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices. HomeShield will record abnormal incoming traffic and the device will automatically block requests from enlisted IPs. Manage online time and block inappropriate content to keep your family safe online. 5400 Mbps wifi for faster browsing, streamings and downloading, all at the same time. Fully Featured wi-fi 6 equips with the top structure of 4t4r and he160 on the 5 ghz band to enable 4.8 gbps ultra-fast connection. Connect 200+ devicesSection supports mu-mimo and ofdma to reduce congestion and quadruple the average throughput. Extensive coverage 6 x antennas and beamforming ensure broad coverage. HomeShield tp-link's premium security services keep your home network safe with cutting-edge features for network and iot protection. More Vents, less heat improved vents area unleash the full power of the whole machine. USB Sharing 1 x usb 3.0 port enables easy media sharing and private cloud building. Easy Setup set up the router in minutes with tether app. Link Aggregation static link aggregation (lag) available with 2 x lan ports.
- Equips with the top structure of 4T4R and HE160 on the 5 GHz band
- Supports mu-mimo and ofdma to reduce congestion
- Antennas and Beamforming ensure broad coverage
- Premium security services keep your home network safe
- Improved vents area unleash the full power of the whole machine
Характеристики
- Unit Calculated Weight
- 1.63 kg
- Unit Calculated Volume
- 0.01206 cubm
- Units per Shipping Box
- 8
- Units per Pallet
- 0
- Category Code
- WRO
- Unit Box Height
- 0.09
- Unit Box Length
- 0.42
- Unit Box Width
- 0.27
- Model name
- Archer AX73
Wireless LAN features
- Modulation
- 1024-QAM/OFDM
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (first band)
- 4804 Mbit/s
- WLAN data transfer rate (max)
- 5400 Mbit/s
- WLAN data transfer rate (second band)
- 574 Mbit/s
WAN connection
- 3G/4G USB modem compatibility
- No
- DSL WAN
- No
- Ethernet WAN
- Yes
- SIM card slot
- No
- WAN connection type
- RJ-45
Network
- Built-in FTP server
- Yes
- Cabling technology
- 10/100/1000Base-T(X)
- Dynamic DNS (DDNS)
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10/100/1000 Mbit/s
- Ethernet LAN interface type
- Gigabit Ethernet
- Media server
- Yes
- Networking standards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g
- Number of guest networks (2.4 GHz)
- 1
- Number of guest networks (5 GHz)
- 1
- Port forwarding
- Yes
- Port triggering
- Yes
- Support Samba (storage)
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB port
- Yes
Management features
- MU-MIMO technology
- Yes
- Quality of Service (QoS) support
- Yes
- Reset button
- Yes
- Web-based management
- Yes
- WPS push button
- Yes
Security
- Access Control List (ACL)
- Yes
- DMZ support
- Yes
- DoS attack prevention
- Yes
- Filtering
- Yes
- Firewall
- Yes
- IP address filtering
- Yes
- MAC address filtering
- Yes
- Network address translation (NAT)
- Yes
- Parental control
- Yes
- Security algorithms
- WPA/WPA2/WPA2-Enterprise/WPA3/WPA-Enterprise
- Stateful Packet Inspection (SPI)
- Yes
Protocols
- DHCP client
- Yes
- Supported network protocols
- IPv4, IPv6
- Universal Plug and Play (UPnP)
- Yes
Design
- On/off switch
- Yes
- Product colour
- Black
- Product type
- Portable router
Packaging content
- AC adapter included
- Yes
- Cables included
- LAN (RJ-45)
- Packaging content
- 1 x TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black
- Quick installation guide
- Yes
Certificates
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
Sustainability
- Sustainability compliance
- Yes
Antenna
- Antenna design
- External
- Antennas quantity
- 6
Features
- Built-in processor
- Yes
- Firmware upgradeable
- Yes
- Processor cores
- 3
- Processor frequency
- 1500 MHz
Power
- Output current
- 2.5 A
- Output voltage
- 12 V
- Power source type
- DC
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
Weight & dimensions
- Depth
- 147.2 mm
- Height
- 49.2 mm
- Width
- 272.5 mm
Packaging data
- Package depth
- 310 mm
- Package height
- 38 mm
- Package weight
- 800 g
- Package width
- 124 mm
Logistics data
- Country of origin
- Malaysia
- Harmonized System (HS) code
- 85176990
- Quantity per pack
- 1 pc(s)
Идентификаторы
- Бренд
- TP-LINK
- Категории
- Сетевое оборудование
- Модель
- ARCHERAX73
- EAN
- 6935364010263
