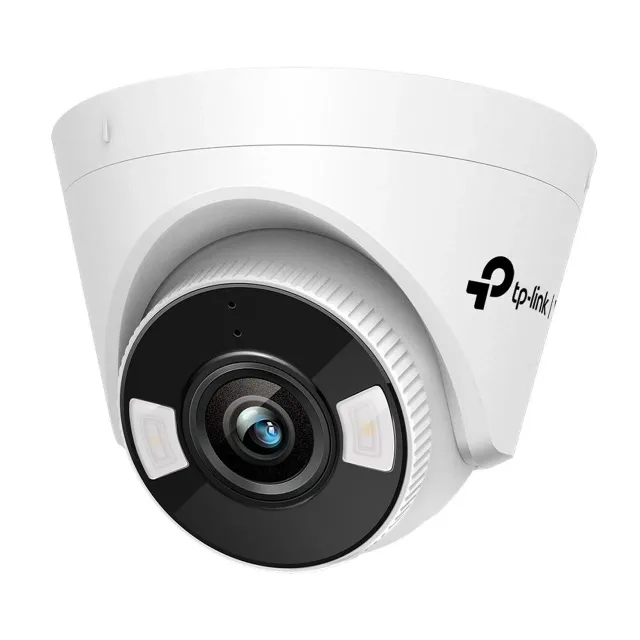

NET CAMERA TURRET H.264 3MP/VIGI C430(2.8MM) TP-LINK
О товаре
All The Colors, All The Time
3MP Full-Color Turret Network Camera
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Plug & Play with One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Flexible Installation Gives You More Convenience.
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
- 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects
- Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager
Характеристики
- Unit Calculated Weight
- 0.4 kg
- Unit Calculated Volume
- 0.000384 cubm
- Units per Shipping Box
- 1
- Summary
- TP-Link VIGI C430. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Turret. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 107.5°, Lens viewing angle, vertical: 57.2°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm
- Vendor Homepage
- https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c430/v1%20(2.8mm%20lens)/
- Category Code
- FNC
- Unit Box Height
- 0.015
- Unit Box Length
- 0.16
- Unit Box Width
- 0.16
- Model
- VIGI C430(4MM)
Design
- Form factor
- Turret
- Housing material
- Plastic
- Mounting type
- Ceiling
- Product colour
- Black/White
Performance
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Infrared (IR) cut-off filter
- Yes
- Placement supported
- Indoor & outdoor
- Type
- IP security camera
- Wide Dynamic Range (WDR)
- Yes
Camera
- Lens viewing angle, diagonal
- 128.7 °
- Lens viewing angle, horizontal
- 107.5 °
- Lens viewing angle, vertical
- 57.2 °
- Minimum illumination
- 0.005 lx
Image sensor
- Number of sensors
- 1
- Optical sensor size
- 1/2.8 "
- Progressive scan
- Yes
- Sensor type
- CMOS
Lens system
- Fixed focal length
- 2.8 mm
- Number of lenses
- 1
Night vision
- Night vision
- Yes
- Night vision distance
- 30 m
Video
- 3D positioning
- Yes
- Back Light Compensation (BLC)
- Yes
- Bit rate
- 64 Kbps - 4 Mbps
- Digital Wide Dynamic Range (DWDR)
- Yes
- Frame rate
- 25 fps
- Highlight Compensation (HLC)
- Yes
- Image quality adjustment
- Brightness/Contrast/Mirror/Saturation
- Maximum resolution
- 2304 x 1296 pixels
- Privacy masking
- Yes
- Region of Interest (ROI) encoding
- Yes
- Smart IR
- Yes
- Supported graphics resolutions
- 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/320 x 240/352 x 288/640 x 480 (VGA)/704 x 576
- Total megapixels
- 3 MP
- Video compression formats
- H.264/H.264+/H.265/H.265+
Audio
- Built-in microphone
- Yes
Network
- Bluetooth
- No
- Ethernet LAN
- Yes
- Live view
- Yes
- Networking standards
- IEEE 802.3af/IEEE 802.3at
- Number of simultaneous live view channels
- 3 channels
- Supported network protocols
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Wi-Fi
- No
Storage
- Built-in HDD
- No
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
Security
- Active tampering alarm
- Yes
- Digest authentication
- Yes
- HTTPS encryption
- Yes
- Human and vehicle targets classification
- Yes
- Intelligent Video Surveillance (IVS) system features
- Human detection/Vehicle detection
- IP address filtering
- Yes
- Mirror
- Yes
- Password protection
- Yes
- Password reset via email
- Yes
- Video motion detection
- Yes
Management features
- Behavior analysis
- Intrusion detection,Line crossing detection,Object removal detection,Region entrance detection,Region exiting detection
Power
- Power consumption (max)
- 4.2 W
- Power source type
- DC,PoE
Operational conditions
- Operating temperature (T-T)
- -30 - 60 °C
Weight & dimensions
- Depth
- 83 mm
- Height
- 123 mm
- Width
- 123 mm
Sustainability
- Compliance certificates
- BSMI/CE
- Sustainability compliance
- Yes
Packaging content
- Manual
- Yes
- Mounting kit
- Yes
- Number of cameras
- 1
Идентификаторы
- Бренд
- TP-LINK
- Категории
- IP-камеры
- Модель
- VIGIC430(2.8MM)
- EAN
- 4897098689929
