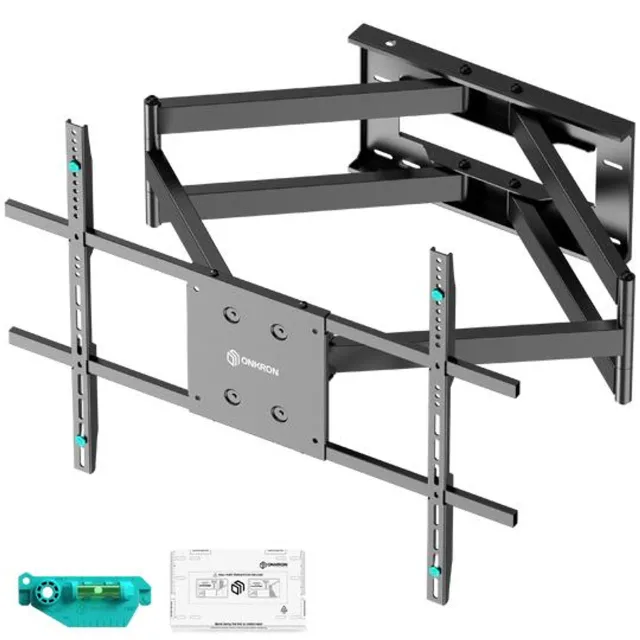

TV SET ACC WALL MOUNT/42-110"/BLACK M8L-B ONKRON

О товаре

For TVs 42"–110"
Max load: 100 kg
Extension from wall: 103–1030 mm
Tilt: -5° ~ +15°
Swivel: 180°
Rotation: 90°
Includes removable level, drilling template, and anchors
VESA: 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 200x500, 200x600, 300x100, 300x200, 300x300, 300x400, 300x500, 300x600, 400x100, 400x200, 400x300, 400x400, 400x500, 400x600, 500x200, 500x300, 500x400, 500x500, 500x600, 600x200, 600x300, 600x400, 600x500, 600x600, 700x400, 700x500, 800x600 mm
Material: cold-rolled steel

Unit Calculated Weight: 18.2 kg
Unit Calculated Volume: 0.05141 cubm
Units per Shipping Box: 1
Units per Pallet: 0
Summary: ONKRON M8L-B. Maximum weight capacity: 100 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Tilt angle range: -5 - 15°, Angle of rotation: 90°, Distance to the wall (min): 10.3 cm, Distance to the wall (max): 103 cm. Product colour: Black
Vendor Homepage: https://onkron-uk.co.uk/products/onkron-tv-wall-mount-swivel-tilt-for-42-110-inch-flat-curved-led-tvs-vesa-wall-mount-min-100x100-800x600-max-supports-screens-up-to-100-kg-black-m8l-b?_pos=1&_sid=3c246872d&_ss=r
Category Code: TMS
Unit Box Height: 0.14
Unit Box Length: 1.08
Unit Box Width: 0.34
Model: M8L

Maximum screen size: 100 "
Maximum VESA mount: 800 x 600 mm
Maximum weight capacity: 100 kg
Maximum weight capacity (per display): 100 kg
Minimum screen size: 42 "
Minimum VESA mount: 100 x 100 mm
Mounting type: Wall
Number of displays supported: 1
Panel mounting interface: 100 x 100/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/200 x 500/200 x 600/300 x 100/300 x 200/300 x 300/300 x 400/300 x 500/300 x 600/400 x 100/400 x 200/400 x 300/400 x 400/400 x 500/400 x 600/500 x 200/500 x 300/500 x 400/500 x 500/500 x 600/600 x mm
